handi quilter HQ Stitch 710 - Test 09: Slide Volume

Diagnostic Test 09 / Slide Volume

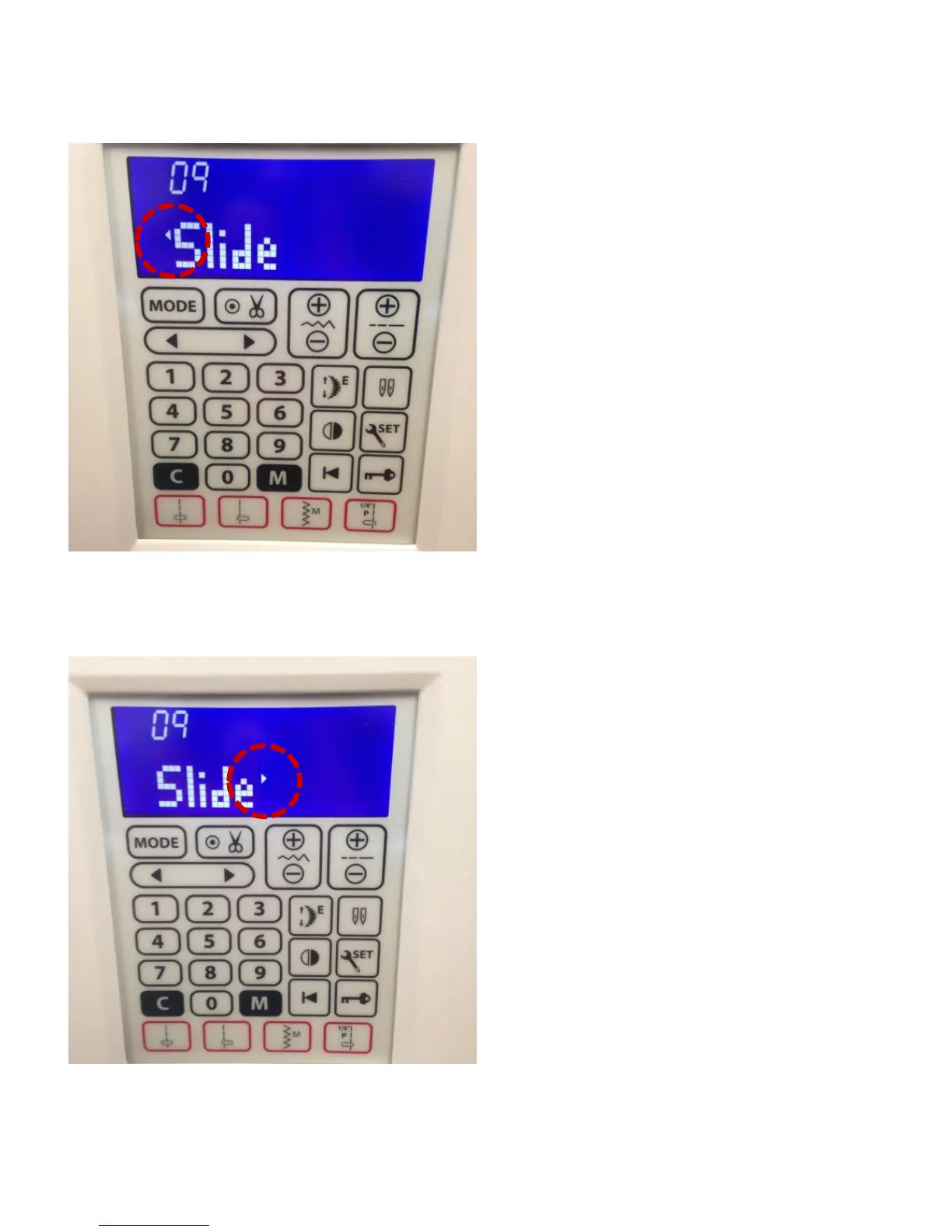

1. LCD displays “09” and “Slide”. Shift
the slide volume from right to left
position. Buzzer will sound and arrow
mark appears at the left-most positon.
3. Fault note: Buzzer does not sound,
the arrow marks are in the opposite
position, or the arrow marks do not
appear.
See Diagnostic Appendix, 09 for more
information.
83
2. Return the slide to the right.
Buzzer will sound and the arrow
mark will appear at the right-most
position.
