18

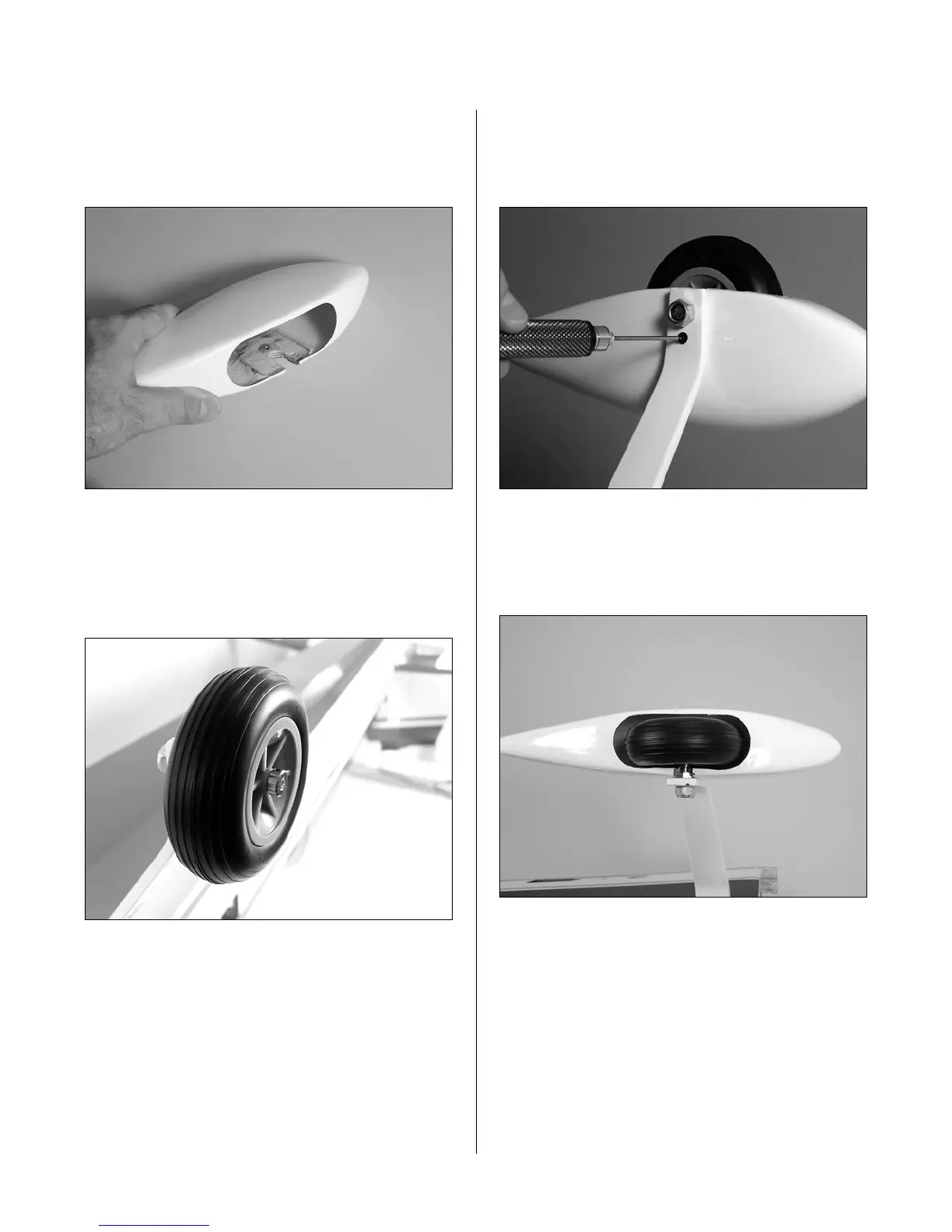

Step 5
Install a 4-40 blind nut into the hole from the inside
of the pant. The nut will be drawn into the plywood
later in this section.
Step 6
Install the following items onto the axle: wheel pant,
3/16" wheel collar, wheel then another 3/16" wheel
collar. It will be necessary to fit the parts inside the
wheel pant and slide them onto the axle.
Step 7
Secure the pant in place using a 4-40 x 1/2" socket
head screw and #4 washer. Use threadlock on the
screw to prevent it from coming loose in flight.
Step 8
Center the wheel in the wheel pant and tighten the
collars to prevent the wheel from moving side to side.
Use threadlock on both set screws.
Step 9
Repeat Steps 3 through 8 for the remaining
wheel pant.
Section 6 – Landing Gear Installation
