17
Required Parts
• Fuselage • Wheel pant (left and right)
• #8 washer (4) • 8-32 nylon lock nut (4)
• 3
1
/
4
" Wheel (2) • 3/16" wheel collar (4)
• #4 washer (2)
• 8-32 x 3/4" socket head bolt (4)
• 4-40 x 1/2" socket head screw (2)
Required Tools and Adhesives
• 5/32" hex wrench • Ruler
• Felt-tipped pen • Square
• Adjustable wrench (small)

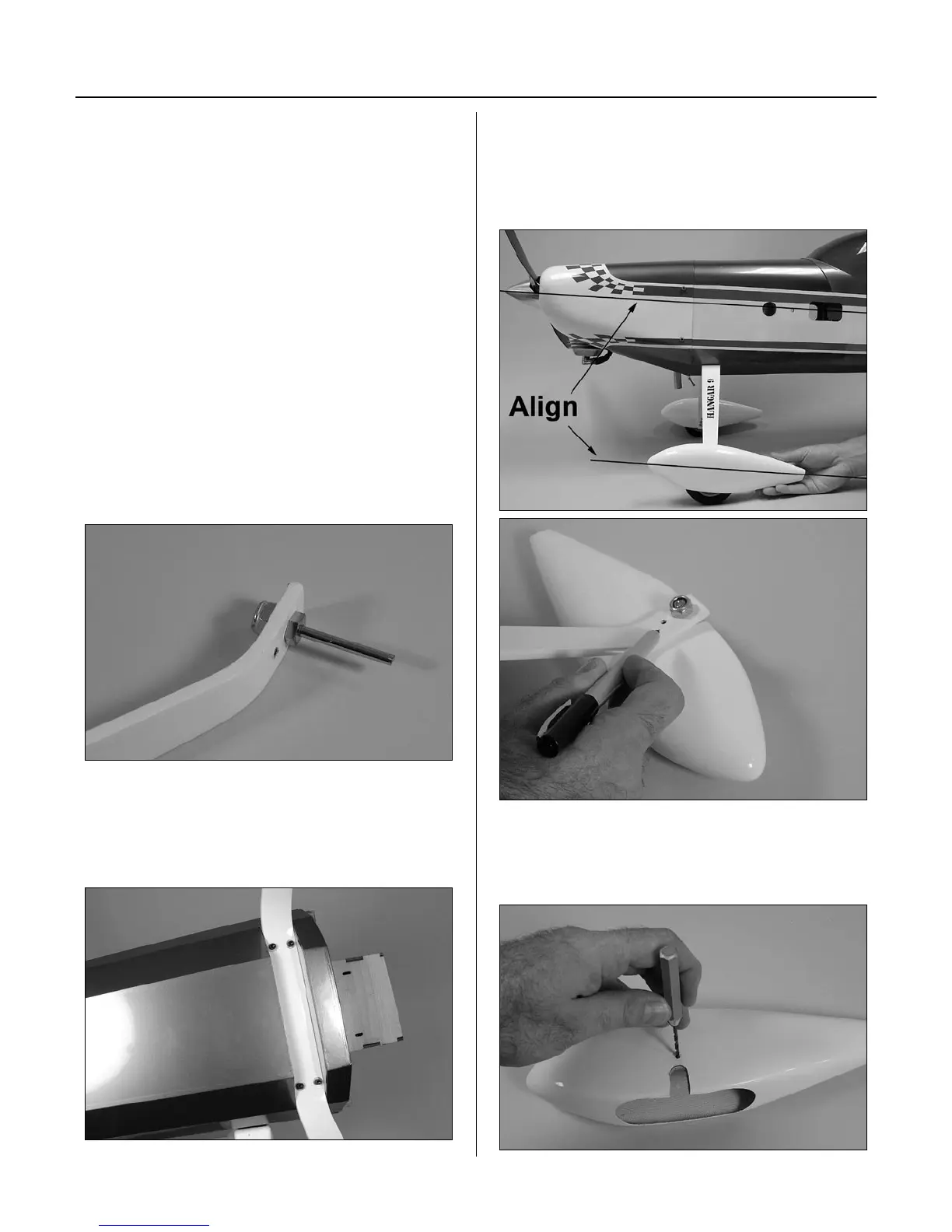

Step 1
Install the axles in the landing gear. Secure the axles
using an adjustable wrench and the nuts provided
with the axles.
Step 2
Install the landing gear using four 8-32 x 3/4" socket
head bolts, four #8 washers and four 8-32 nylon lock
nuts. (The lock nuts are placed inside the fuselage.)
Step 3
Fit the pants over the axle on the landing gear. Align
the centerline of the wheel pant to the centerline of
the fuselage. Use a felt-tipped pen to transfer the
location of the hole onto the pant.
Step 4
Remove the pant and use a 9/64" drill bit to drill the
location marked in the previous step.
Section 6 – Landing Gear Installation
