24
Step 7

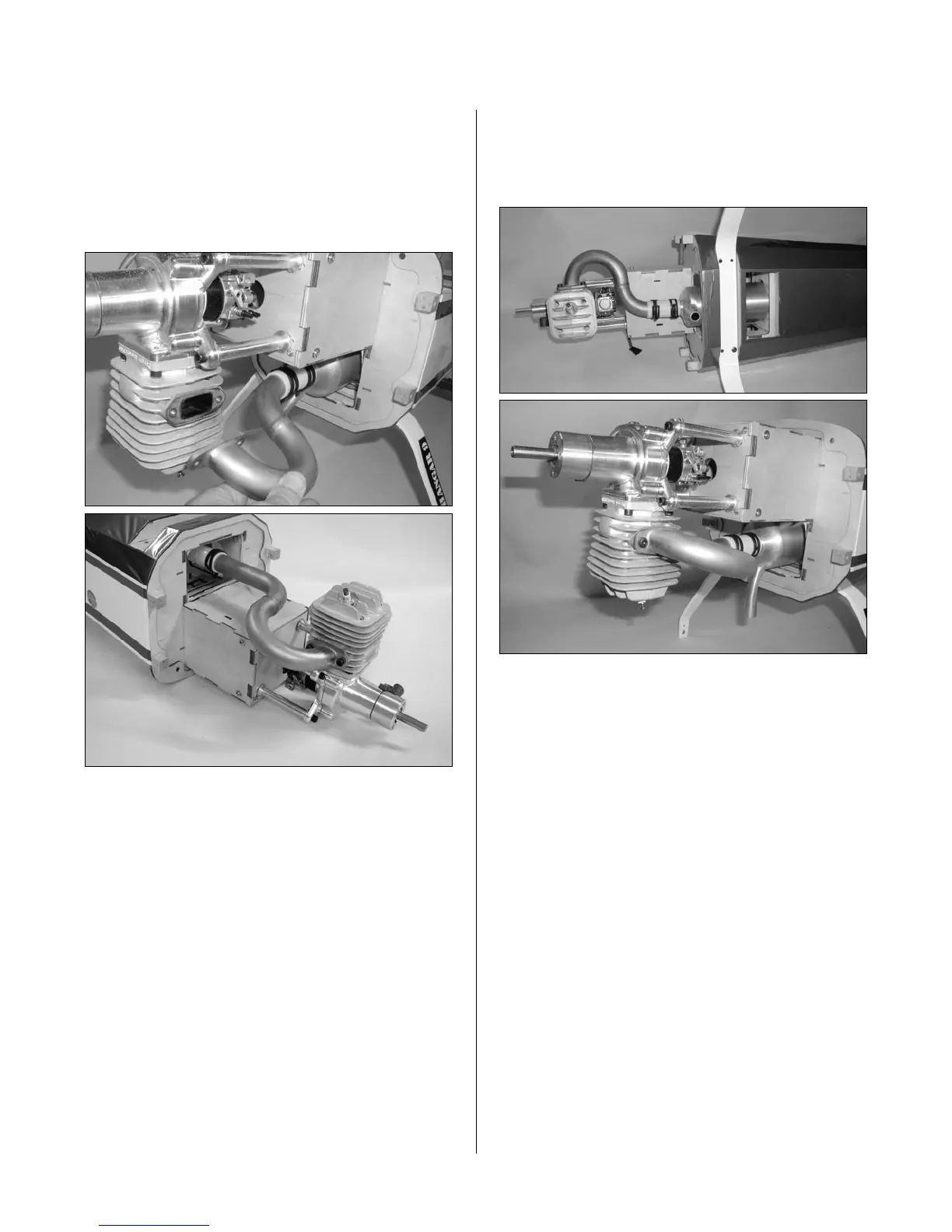

Assemble the canister and header using the coupler
and clamps provided with the muffler. Fit the muffler
into the opening made in the former, and adjust as
necessary to provide adequate clearance around the
muffler.
Step 8
Position the exhaust stinger directly down so the
exhaust exits the aircraft. Bolt the exhaust header to
the engine.
Section 7B – Engine Installation: DA-50
