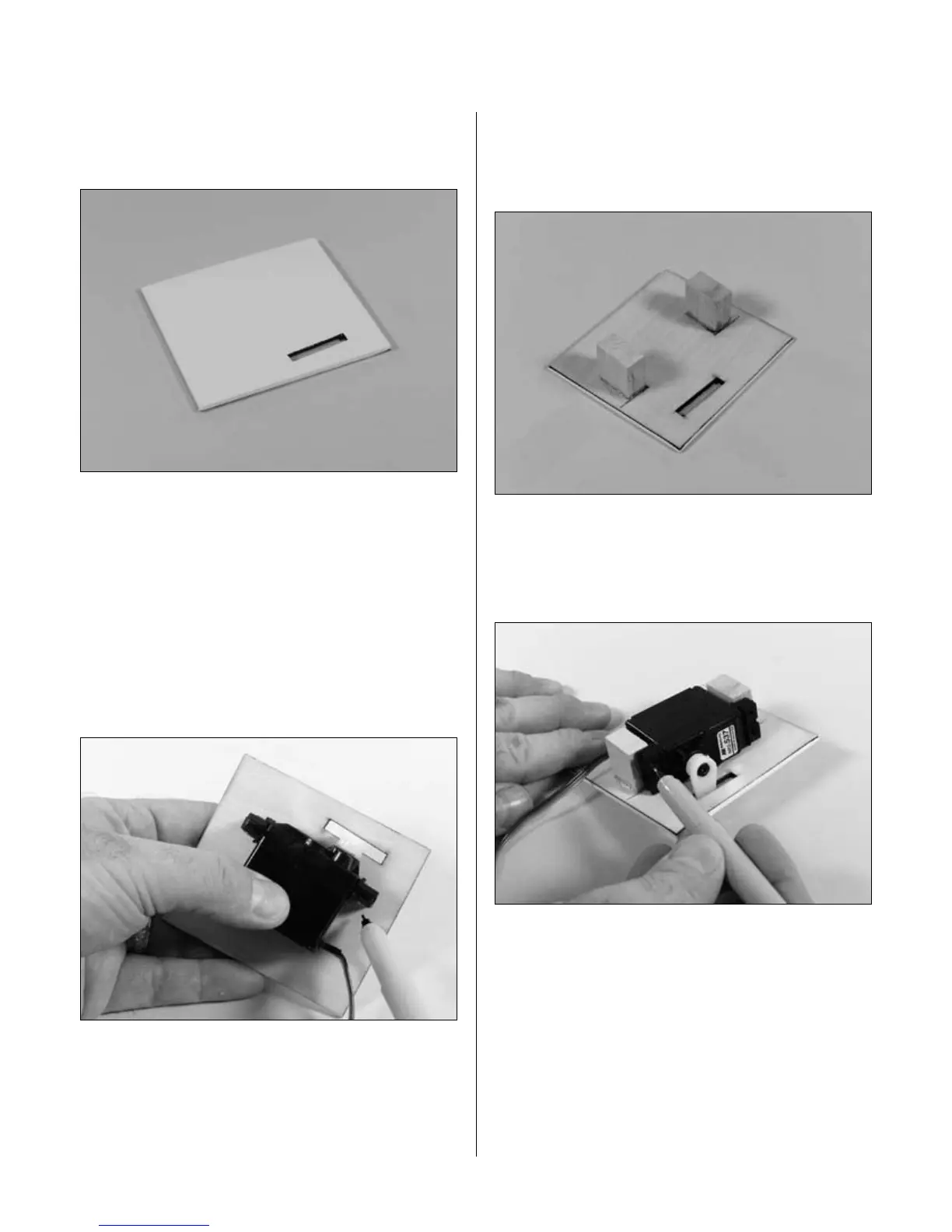

Step 8
Remove the aileron hatch from the wing. Remove
the covering from the slot for the aileron horn.
Note: The aileron servo is
mounted directly to the hatch.
Step 9
Install the recommended servo hardware (grommets
and eyelets) supplied with the servo. Cut one arm off
a long half servo arm (JRPA212) and attach it to the
servo and position the servo onto the hatch so the
servo arm is centered in the notch. Once satisfied,
mark the location for the servo mounting blocks.
Step 10
Locate the servo mounting blocks. Use 6-minute
epoxy to glue the blocks to the hatch. Let the epoxy
fully cure before proceeding to the next step.
Step 11
Place the aileron servo between the mounting
blocks and use a felt-tipped pen to mark the
location of the four servo mounting screws.
Note: The servo must not touch the hatch
in order to isolate engine vibration.
Note: Before mounting the servo, it is
suggested to electronically center the
servo using the transmitter, then install
the servo arm to avoid having to remove
the servo and center the arm later.
