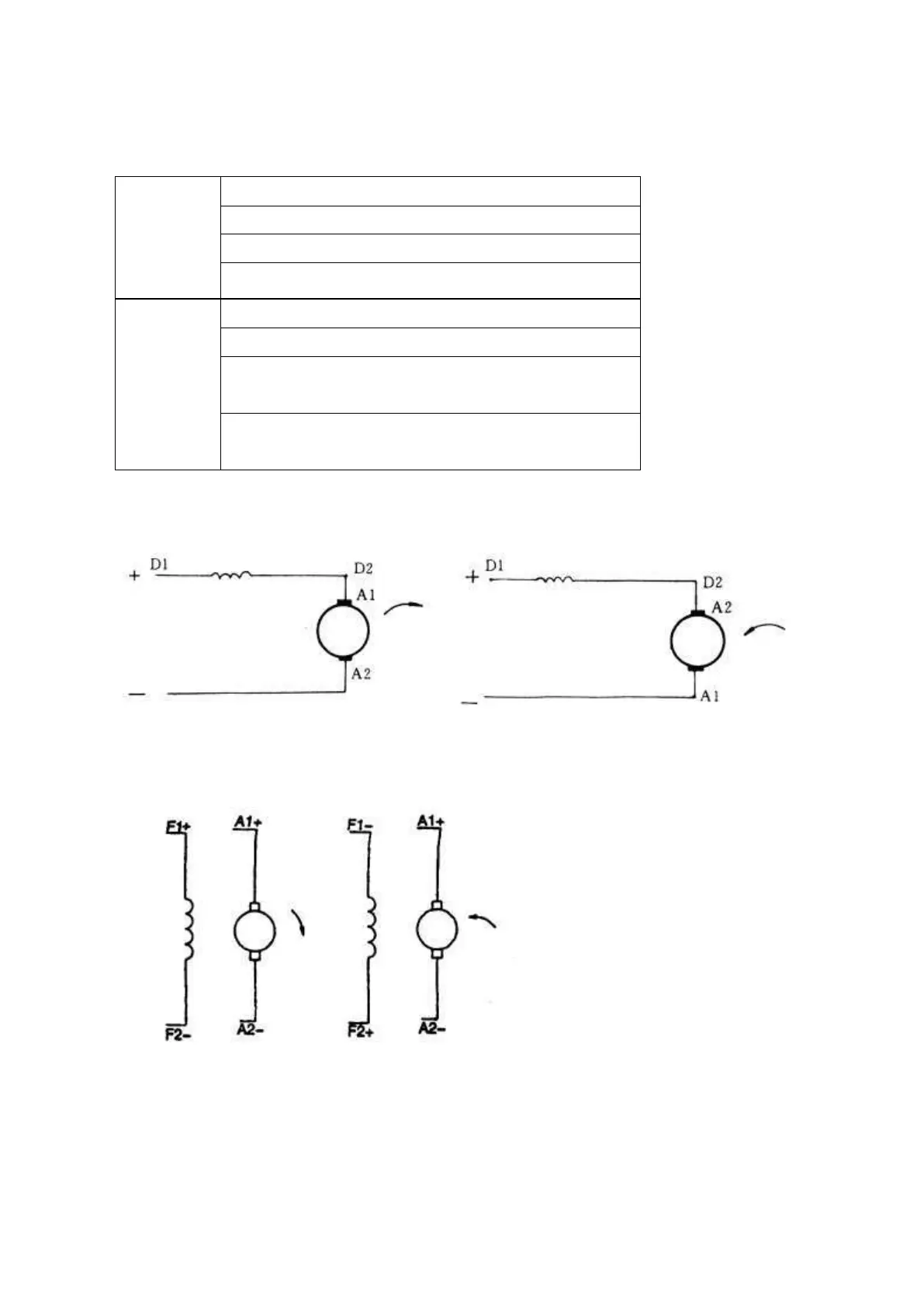

1.1.3The marker, sign and connecting type of exceed cable or terminal of motor
Separated
Excitation
motor
A1 --motor armature's head
A2--motor armature's end
F1—Separated
Excitation excitation's head
F2-- Separated
Excitation excitation's end
Connection mode
Series excitation motor
Separate excitation motor
series
excitation
motor
A1 --motor armature's head
A2--motor armature's end
D1--shunt excitation's head
D2--shunt excitation's end
