3.2 Foot brake
3.2.1 Brake
The configuration of the 2-3t right detent can refer to fig 3-2. The configuration of 1-1.8t 、4-5t right
detent Configuration was similitude to 2-3t.

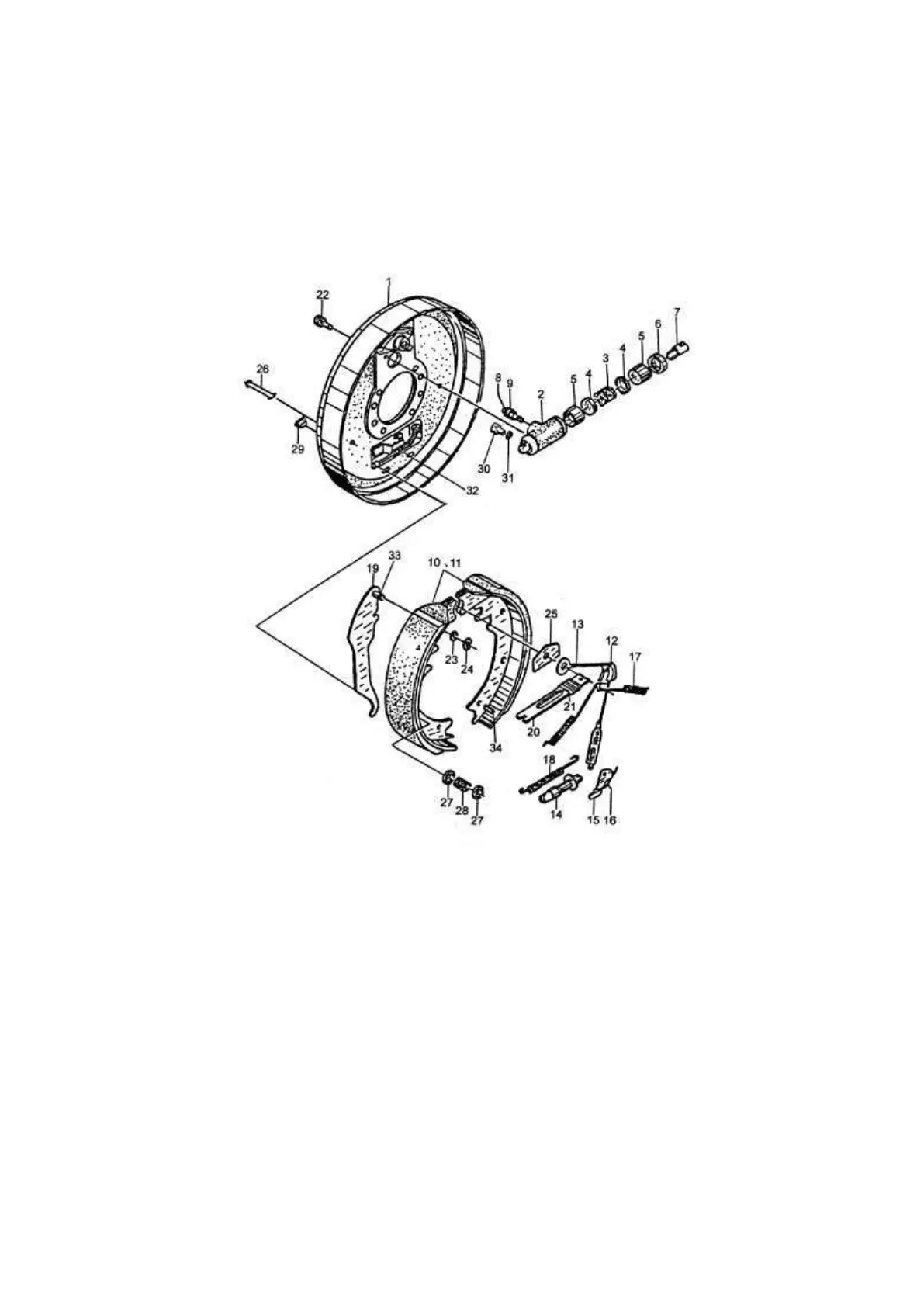

Fig.3-2 2-3t forklift truck right brake assembly
1. Brake mount
bracket
2. Wheel cylinder
body
3. Cylinder return
spring
4. Rubber cap
5.Piston
6.Cylinder dust
cover
7. Push rod
8.Air bleeder cap
9.Air bleeder
screw
10. Brake shoe
assemble (front)
11. Brake shoe
assemble (rear)
12. Guider
13. Adjuster cable
14.Adjusting bolt
15. Pawl
16.Spring
17. Brake shoe
return spring
18.Return spring
19.Parking brake
rod
20.Strut level
21.Spring
22.Bolt
23.Washer
24.Snap ring
25.Guider
26.Spring support
rod
27.Spring bracket
28.Spring
29.Plug
30.Oil connector
31.Bush
32.Brake steel cable
