5.3 mast
Basic mast is 3m high, composed of inner and outer mast, fork arm carrier, fork arm, chain and idler
wheel, etc.

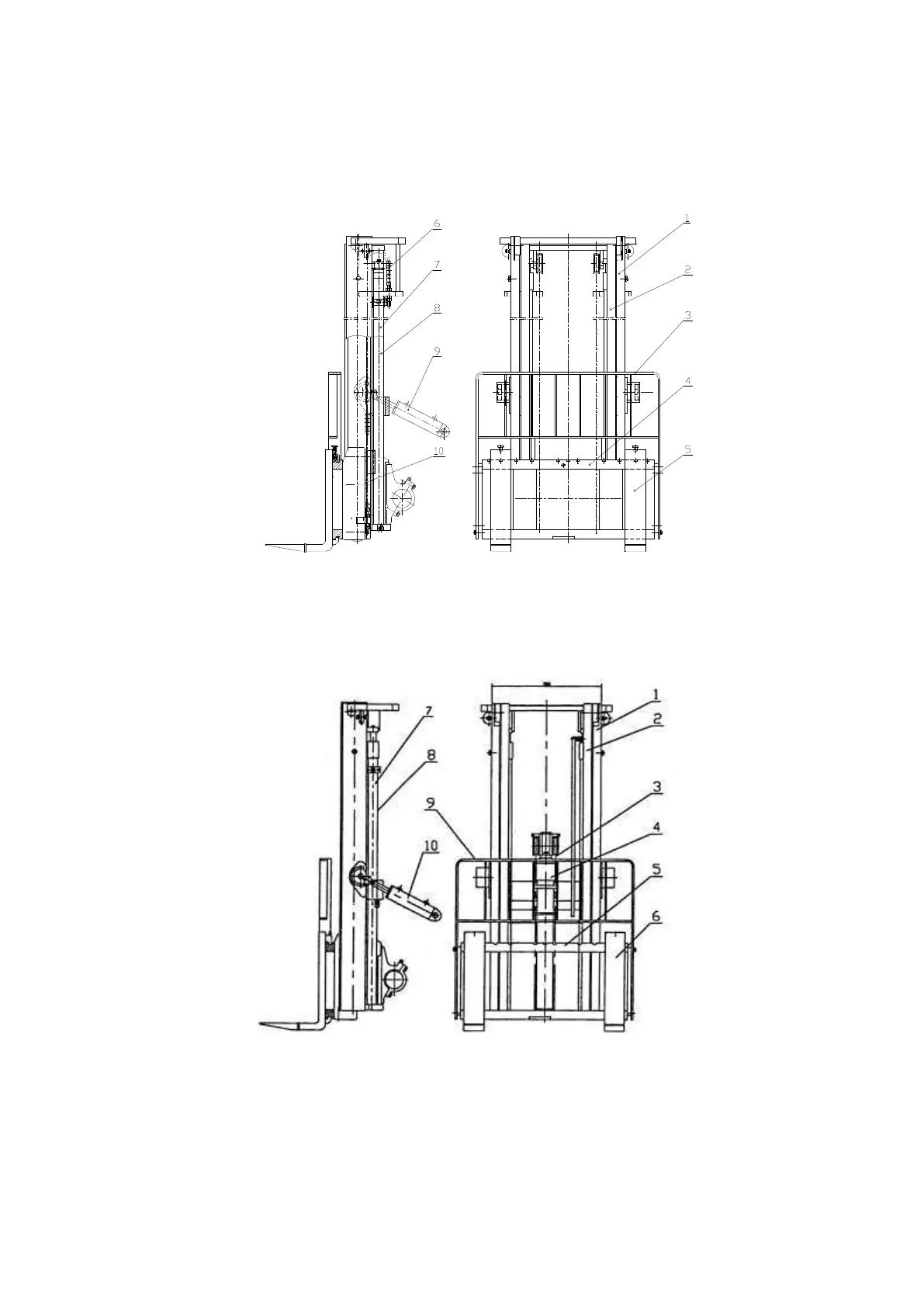

Fig5-1 Double lift mast with wide view
1.Outer mast
2.Inner mast
3.Back rest
4. Fork arm carrier
5.Fork
6.Chain
7.Left lifting
cylinder
8.Right lifting cylinder
9.Tilting cylinder
10.Idler wheel
Fig5-2 Double full free lift mast
1. Outer mast
2.Inner mast
3. Chain
4. Free lifting cylinder
5. Fork arm carrier
6. Fork
7.Left lifting
cylinder
8.Right lifting
cylinder
9. Fork arms
10.Tilt cylinder
