HANGCHA CPD30J - Lifting Cylinder; Tilting Cylinder

32
5.4 Lifting cylinder
Plunger feeder lifting cylinder has dash control, configuration see fig 5-5

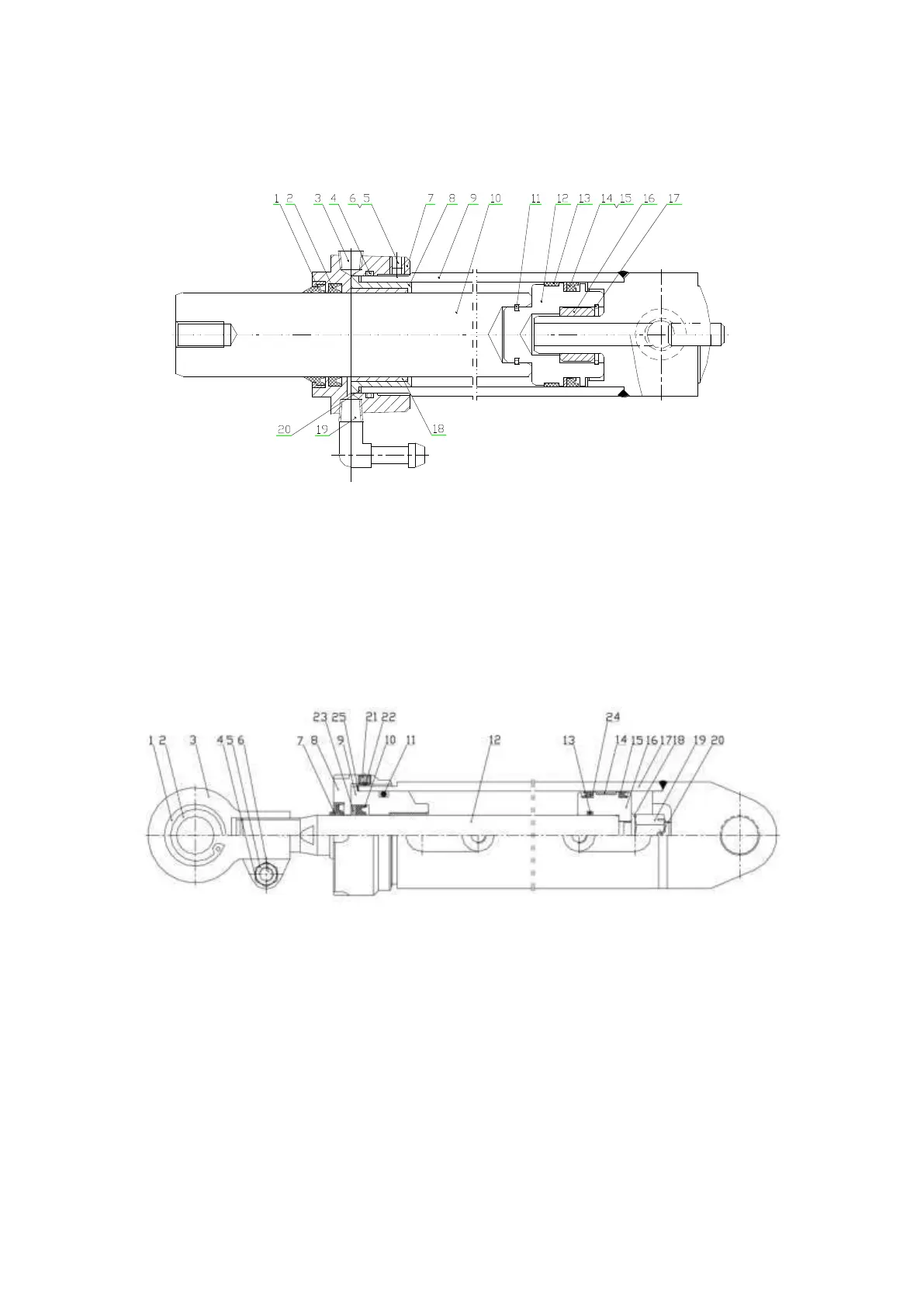

Fig 5-5 Lifting cylinder
1.LBH dust proof
2. ISI ring
3. Plug screw
4. O Ring
5.Piston
6.Bolt
7.Guide
8.bush
9. Cylinder body
10.Piston
11. Snap ring
12. Piston
13. Support ring
14. Back up rings
15. OSI ring
16. Valve guide
17.Snap ring
18. Steel axletree
19.Blowout patch
20.Adjusting washer
5.5 Tilting cylinder
Fig 5-6 Tilting cylinder
1. Retaining
ring
2.Knuckle bearing
3. Support
4.Lubrication
nipple
5. Nut
6. Bolt
7. dust proof
8. Cylinder
9. Guide
10. U ring
11. O ring
12. Piston rod
13. O ring
14. Thimble
15. U ring
16. Piston
17.Cylinder body
18. Washer
19. Nut
20. Pin
21.bolt
22.Nylon tray
23.Snap ring
24. Snap ring
25.Adjusting washer
