HANGCHA CPD30J - Gear Box

8
CPD10/15/18/20/25/30/35J C1
CPD10/15/18/20/25/30/35J C2、CPD40/45/50J C2
CPD10/15/18/20/25/30J D1、CPD40/45/50J D1
CPD10/15/18/20/25/30/35J C1 、 CPD10/15/18/20/25/30/35J C2 、 CPD40/45/50J C2 、
CPD10/15/18/20/25/30J D1、CPD40/45/50J D1 fork don’t have commutator and brush，not need
maintain. You must clear dust everyday.
1.2 Gear box
Gear box is two grades reduce speed gear, one grade straight gear and one grade planet gear. So the
gear box is very small.
Trouble
Probably cause
Method of troubleshooting
When traveling or change
direction
Gear clearance is too big.
Too much worn of gear.
Adjust.
Replace.
Too much noise when traveling
Oil level is low.
Gear clearance is too big.
Too much worn of gear.
Add oil.
Adjust.
Replace.

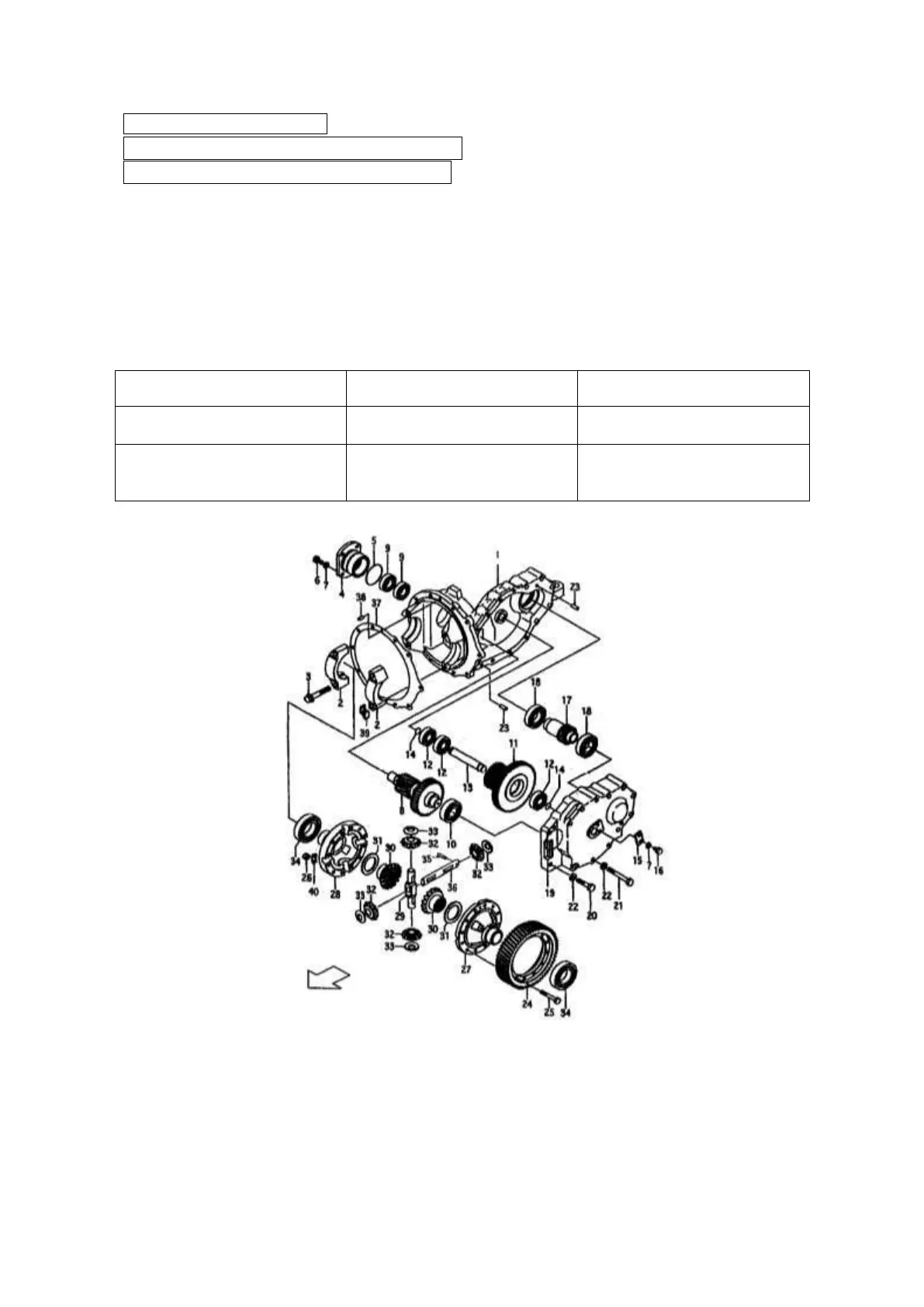

1. Box
2.Bearing pedestal
3. Bolt
4.Bearing pedestal
5.O joint ring
8.Dual
articulated gear
9. Axletree 6206
10.Axletree 6307
11. dual articulated
gear
12.Axletree 6305
13.axes
14. O joint ring
15.Positioning
board
16. Bolt
17. Pinion
18. Axletree 6208
19. Tank cap
20. Bolt
21. Bolt
23.Pin
