HANKISON SPX Flow FLEX Series - General Arrangement Drawings: FLX 3.1 & 4.1

13

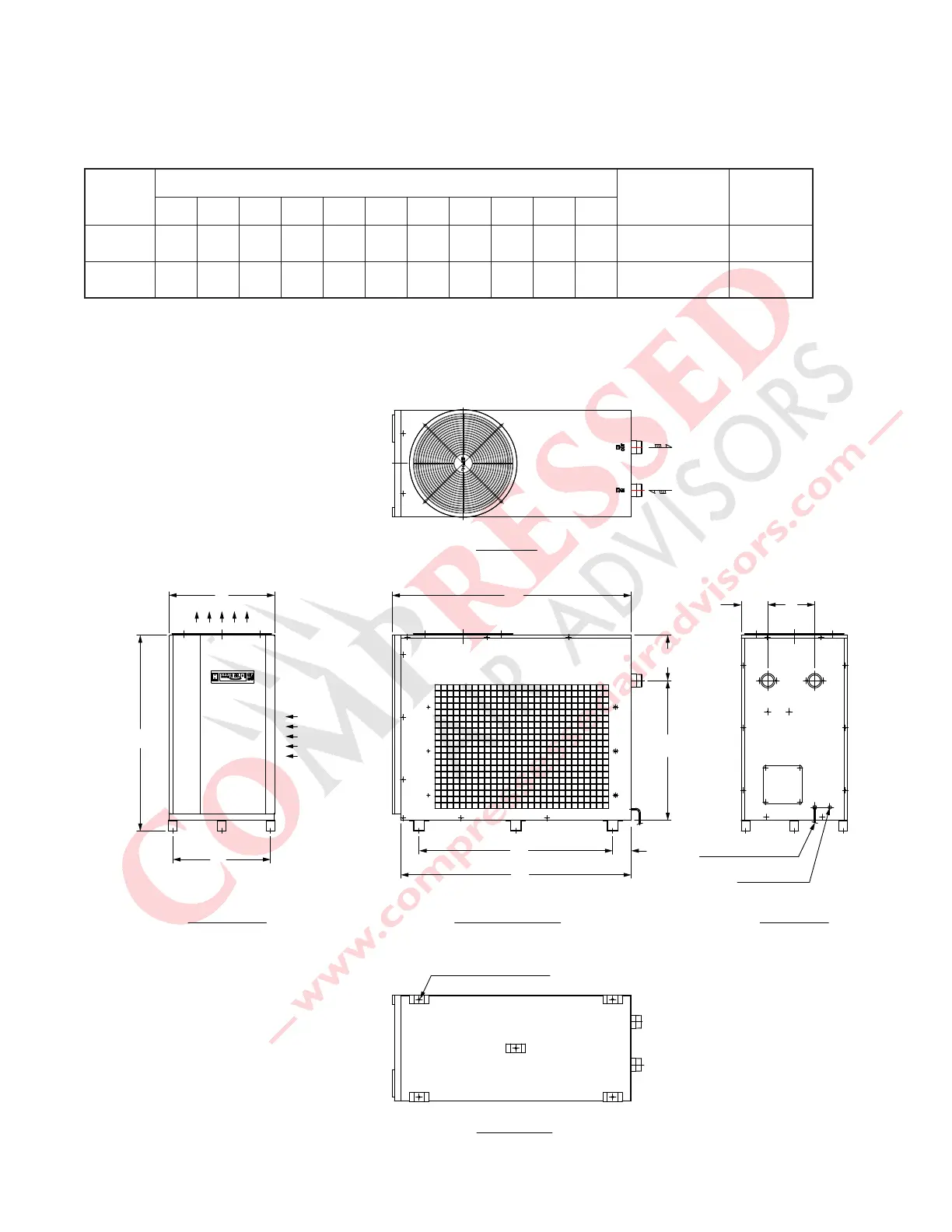

DRAWINGS: GENERAL ARRANGEMENT
Figure 5D
Models: FLX 3.1, FLX 4.1
DRIED AIR OUTLET
WETTED AIR INLET
AIR FLOW
COOLING
MAIN POWER CABLE
DRAIN OUTLET
5-Ø10 MOUNTING HOLES
E
F
G
C
D
A B
FOOT PRINT
FRONT VIEW REAR VIEWRIGHT SIDE VIEW
TOP VIEW
H
I
J
K
MODEL
DIMENSIONS, INCHES (MM)
INLET/OUTLET
CONNECTIONS
WEIGHT
Lb. (kg)
A B C D E F G H I J K
FLX 3.1
4.86
(123.5)
7.86
(199.6)
8.31
(211.2)
25.59
(650)
19.41
(493)
35.88
(911.2)
17.88
(454)
43.75
(1111.3)
3.39
(86.2)
35.43
(900)
42.17
(1071.2)
2" NPT
324
(147)
FLX 4.1
4.86
(123.5)
8.58
(218)
8.35
(212)
25.56
(649.2)
19.41
(493)
35.88
(911.2)
17.88
(454)
43.75
(1111.3)
3.39
(86.2)
35.43
(900)
42.17
(1071.2)
2" NPT
335
(152)
