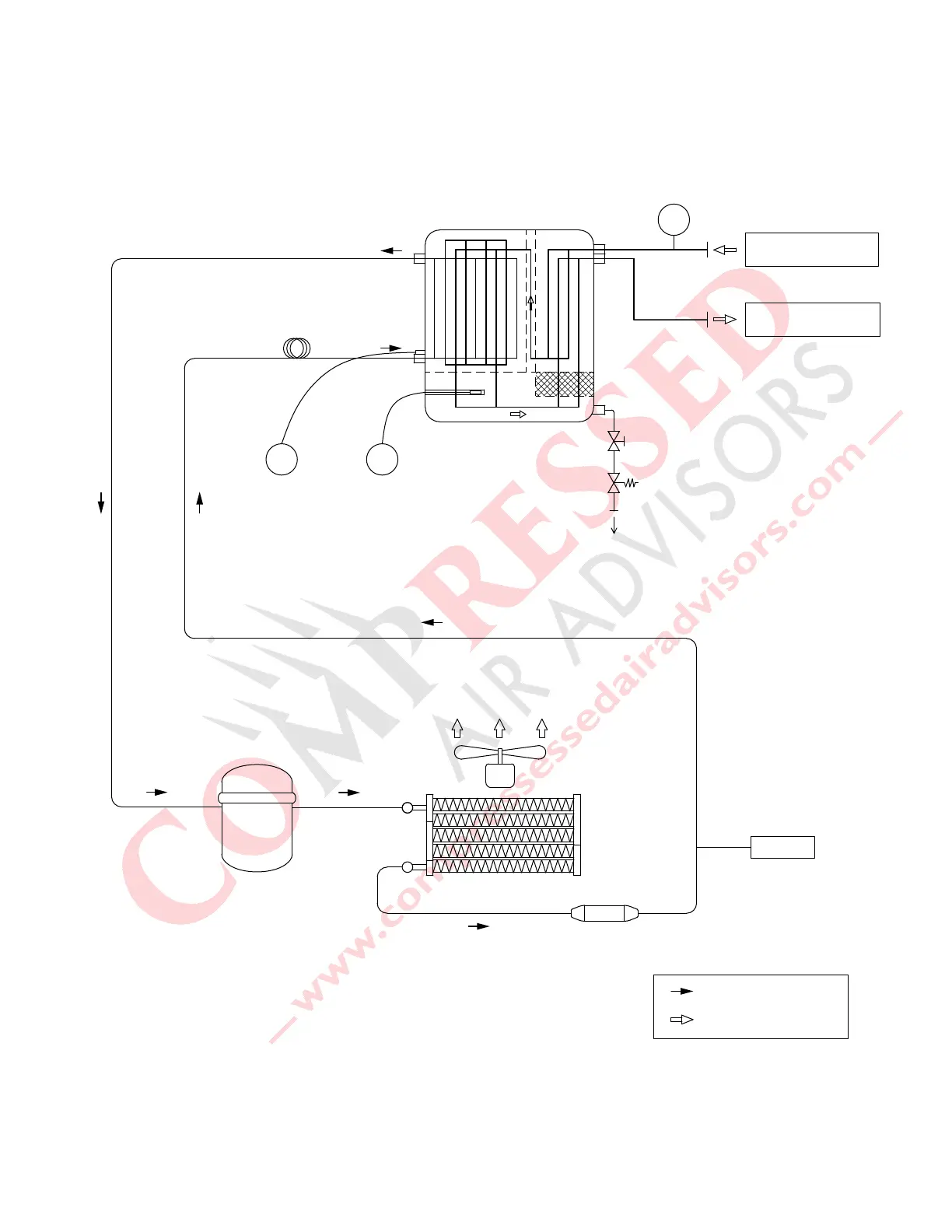

DRAWINGS: AIR AND REFRIGERANT FLOW SCHEMATIC
Figure 7
Models: FLX 1.1, FLX 1.2, FLX 1.5-1, FLX 1.5, FLX 2.1, FLX 2.1-4, FLX 3.1, FLX 4.1, FLX 4.5, FLX 5.5
COMPRESSED AIR FLOW
REFRIGERANT FLOW
FILTER
REFRIGERANT COMPRESSOR
BRAZED PLATE HEAT EXCHANGER
TEMP. SENSOR1
TS1
<REF-PCM-AIR>
WETTED AIR INLET
DRIED AIR OUTLET
<AIR-AIR>
MOISTURE SEPARATOR INTEGRATED
DRAIN VALVE
DRAIN OUTLET
NO LOSS
MANUAL VALVE
HIGH PRESSURE SWITCH
CONDENSER
FAN BLADES
FAN MOTOR
COOLING AIR FLOW
CAPILLARY TUBE
AIR-COOLED
TEMP. SENSOR2
TS2
TS3
TEMP. SENSOR3 (FLX1.5~5.5 ONLY)
H.P.S
