HANKISON SPX Flow FLEX Series - Replacement Parts: FLX 1.1 to FLX 2.1

20
REPLACEMENT PARTS
3
7
9
21 23
8 12 13 15
1
17
11
6
2
14
10
4
5
20
4
3
5
10
2
6
14
11
12 15 16
7
9
FLEX 1.1
FLEX 1.2 - FLEX 5.1
191
22
22
16 18
8
3
7
9
21 23
8 12 13 15
1
17
11
6
2
14
10
4
5
20
4
3
5
10
2
6
14
11
12 15 16
7
9
FLEX 1.1
FLEX 1.2 - FLEX 5.1
191
22
22
16 18
8

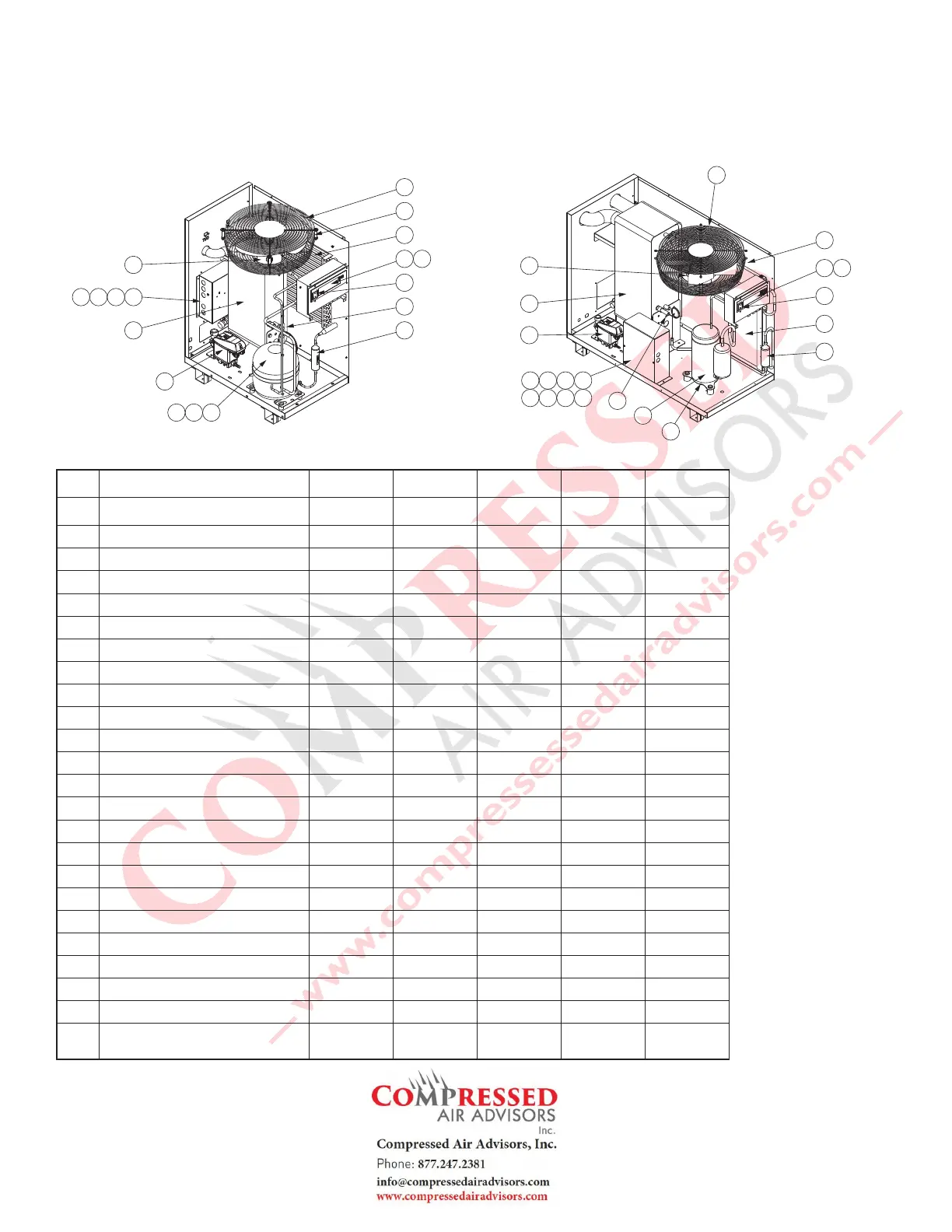

Model: FLX 1.1 Models: FLX 1.2, FLX 1.5-1, FLX 1.5, FLX 2.1
FLX 1.1 FLX 1.2 FLX 1.5-1 FLX 1.5 FLX 2.1
ID# Part name (115V) (115V) (115V) (230V) (230V)
1 Refrigerant Compressor 7440069 7440070 7440245 7433660 7433661
2 Condenser 7440044 7440045 7440110 7440110 7439968
3 Fan Motor 3161243 3161243 3161243 7433673 7433673
4 Fan Grill 7426017 7426017 7426018 7426018 7426018
5 Fan Grill (Ext.) 7440058 7440058 7440059 7440059 7440059
6 Filter Dryer 3142596 3142596 7433676 7433676 7433676
7 Plate Heat Exchanger 7440039 7440114 7440247 7440115 7440116
8 High Pressure Switch 3161273 3161273 7433678 7433678 7433678
9 No Loss Drain Valve 7440053 7440053 7440053 7440053 7440053
10 Controller 7440050 7440050 7440051 7440051 7440051
11 Temperature Sensor 7440054 7440054 7440249 7440249 7440249
12 Magnetic Contactor (Compressor) 7433697 7433697 7433697 7433697 7433697
13 Magnetic Contactor (Fan) — — — — —
14 On/Off Switch 3209745 3209745 7440052 7440052 7440052
15 Start Capacitor 7433696 7433696 — — —
16 Run Capacitor 7433693 7433693 7440259 7433692 7433693
17 Crankcase Heater — — 7439996 7440066 7440066
18 Voltage Transformer —
— — — —
19 PTC Relay (Compressor) 7440256 7440256 — — —
20 Overlaod Protection (Compressor) 7440254 7440255 — — —
21 Thermal Overload Relay — — — — —
22 Controller Fuse (located on the board) 7440252 7440252 7440252 7440252 7440252
23
Enclosure Fuse
(located in the side of the electrical)
— — — — —
