4.8.2 Network Connection

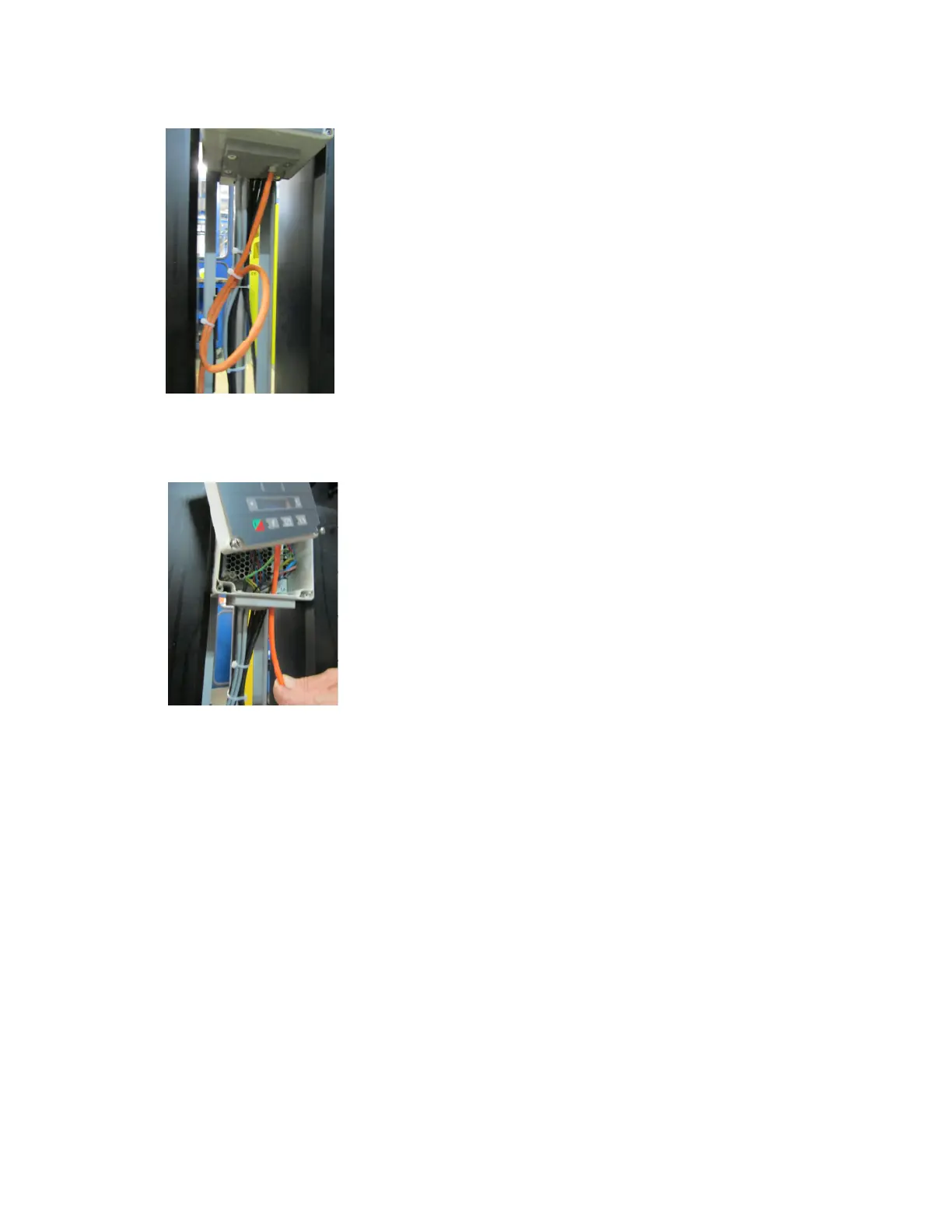

The network cable should be provided with a loop, be fixed
under the control using cable ties (see picture).
When opening the controller, the network cable must be pushed
carefully to avoid mechanical stress on the network socket.
4.9 Ambient Conditions
Locate the dryer under cover in an area where the ambient air
temperature will remain between 35°F (2°C) and 120°F (49°C).
NOTE: If dryer is installed in ambients below 35°F (2°C), low
ambient protection requiring heat tracing and insulation of the
prefilter bowls, and auto drains and/or sumps is necessary to
prevent condensate from freezing. If installing heat tracing,
observe electrical class code requirements for type of duty
specified. Purge mufflers and their relief mechanisms must
be kept clear from snow and ice buildup that could prevent
proper discharge of compressed air.
