6

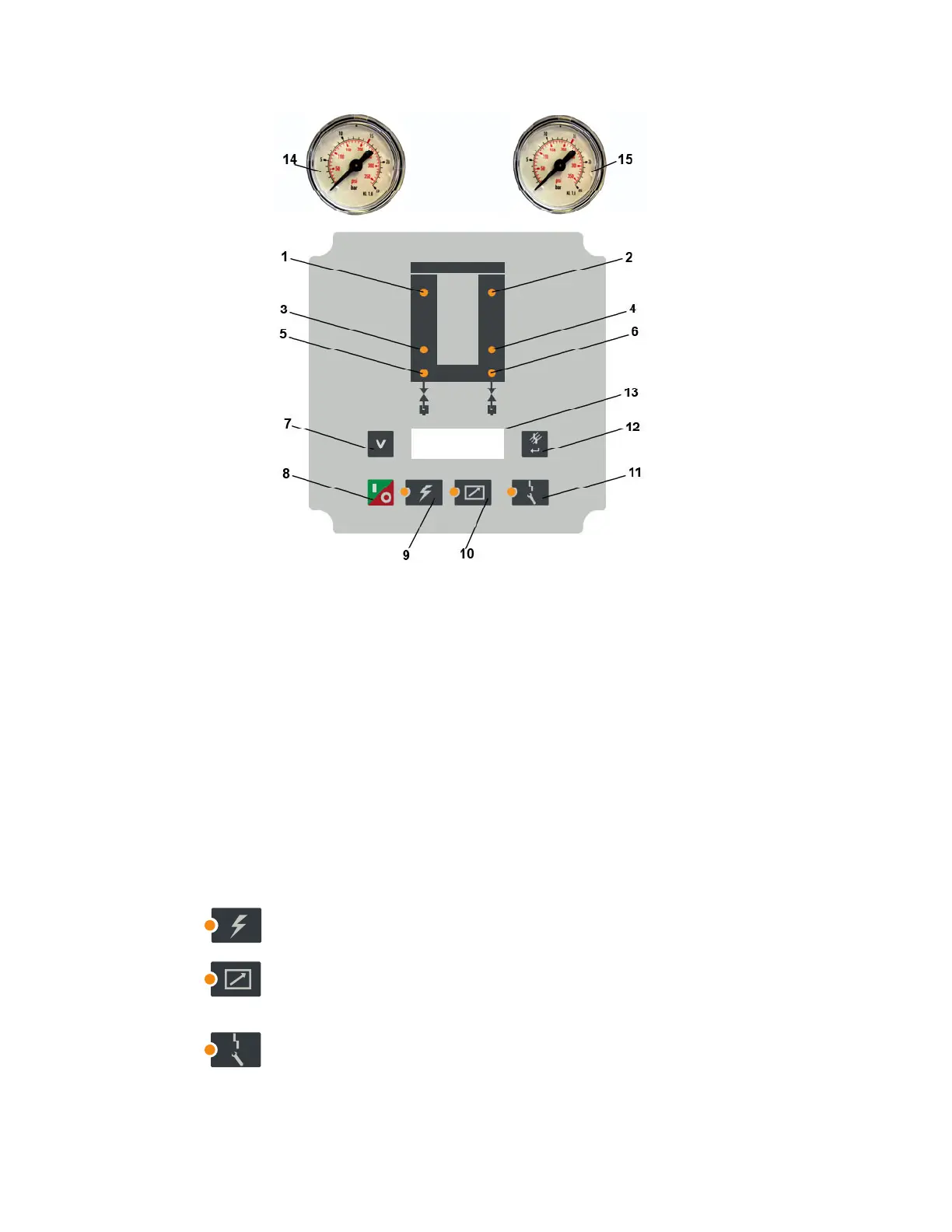

6.5 Controls (Panel)
1. Left cartridge drying LED (green)
2. Right cartridge drying LED (green)
3. Left cartridge regenerating LED (yellow)
4. Right cartridge regenerating LED (yellow)
5. Left purge valve LED (green)
6. Right purge valve LED (green)
7. Mark / Scroll
8. Power On/ Off switch
9. Power On LED
10. LED Remote ON/OFF
11. LED Service/ Warning/ Alarm
12. Enter / Quit
13. Graphic display
14. Pressure gauge left cartridge
15. Pressure gauge right cartridge
Power On
white: Voltage applied
green: Dryer on
green flashes: Dryer (Remote) off
Dryer in Remote Operation
green: at terminal
green flashing: at Modbus
Warning/Service/Alarm
yellow for service, for warning
yellow flashing, flashing has priority!
for alarm red, flashing has priority!
red by wire break PDP-Sensor
for PDP-Alarm red flashing
