7

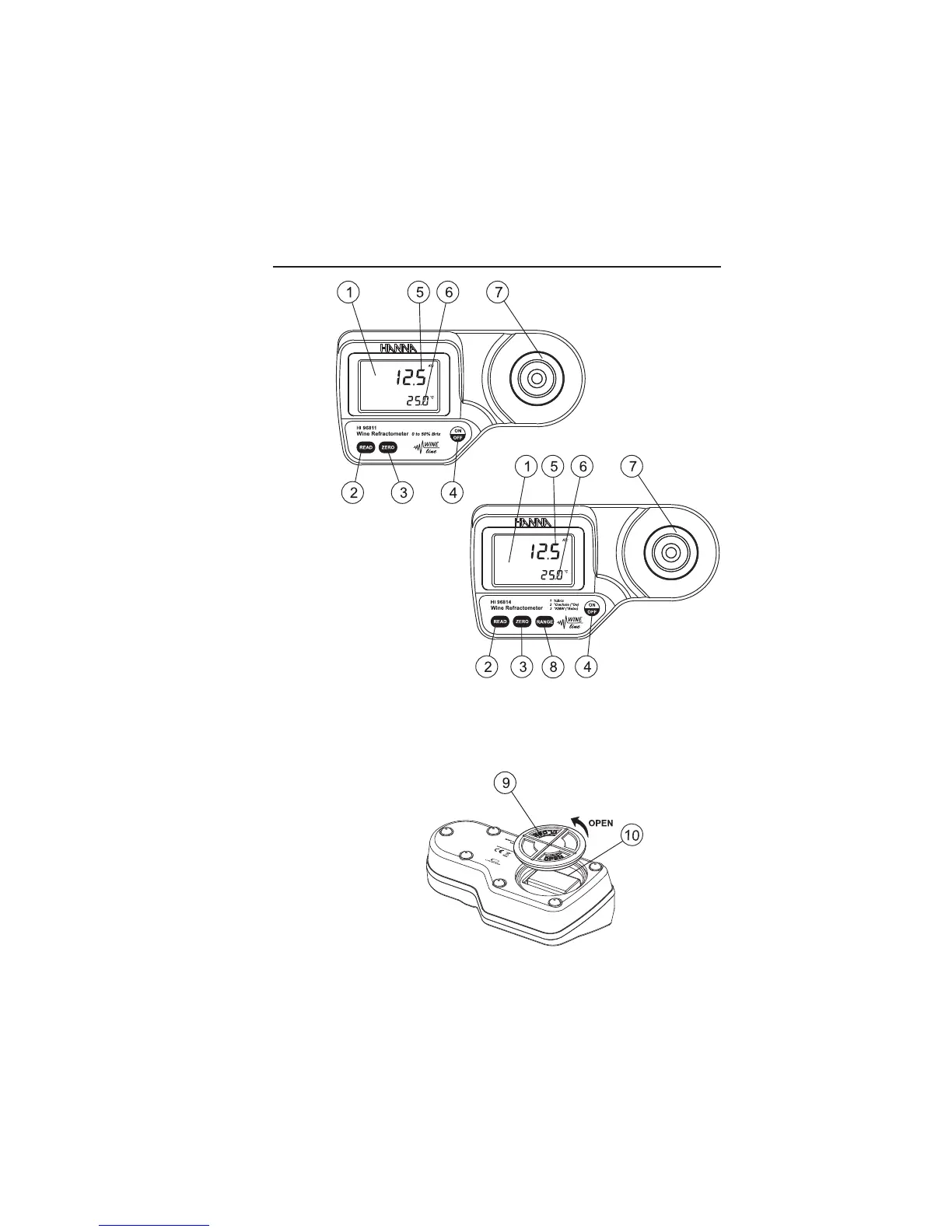

9. Battery Cover
10.Battery Compartment
1. Liquid Crystal Display (LCD)
2. READ Key (User Measurement)
3. ZERO Key (User Calibration)
4. ON/OFF
5. Primary Display
6. Secondary Display
7. Stainless Steel Sample Well and Prism
8. RANGE (HI 96813 and HI 96814 only)
TOP VIEW
BOTTOM
FUNCTIONAL DESCRIPTIONFUNCTIONAL DESCRIPTION
FUNCTIONAL DESCRIPTIONFUNCTIONAL DESCRIPTION
FUNCTIONAL DESCRIPTION
