Assembling the chipper
When you receive your Hansa brush chipper, the inlet and outlet chute may not be assembled on the chipper. All the fasteners
(bolts, nuts and washers) will be attached to their respective components
Tools required for assembly (not supplied):
• 16 mm spanner - to fit the inlet and outlet chute
• 17 mm spanner - to fit the inlet and outlet chute

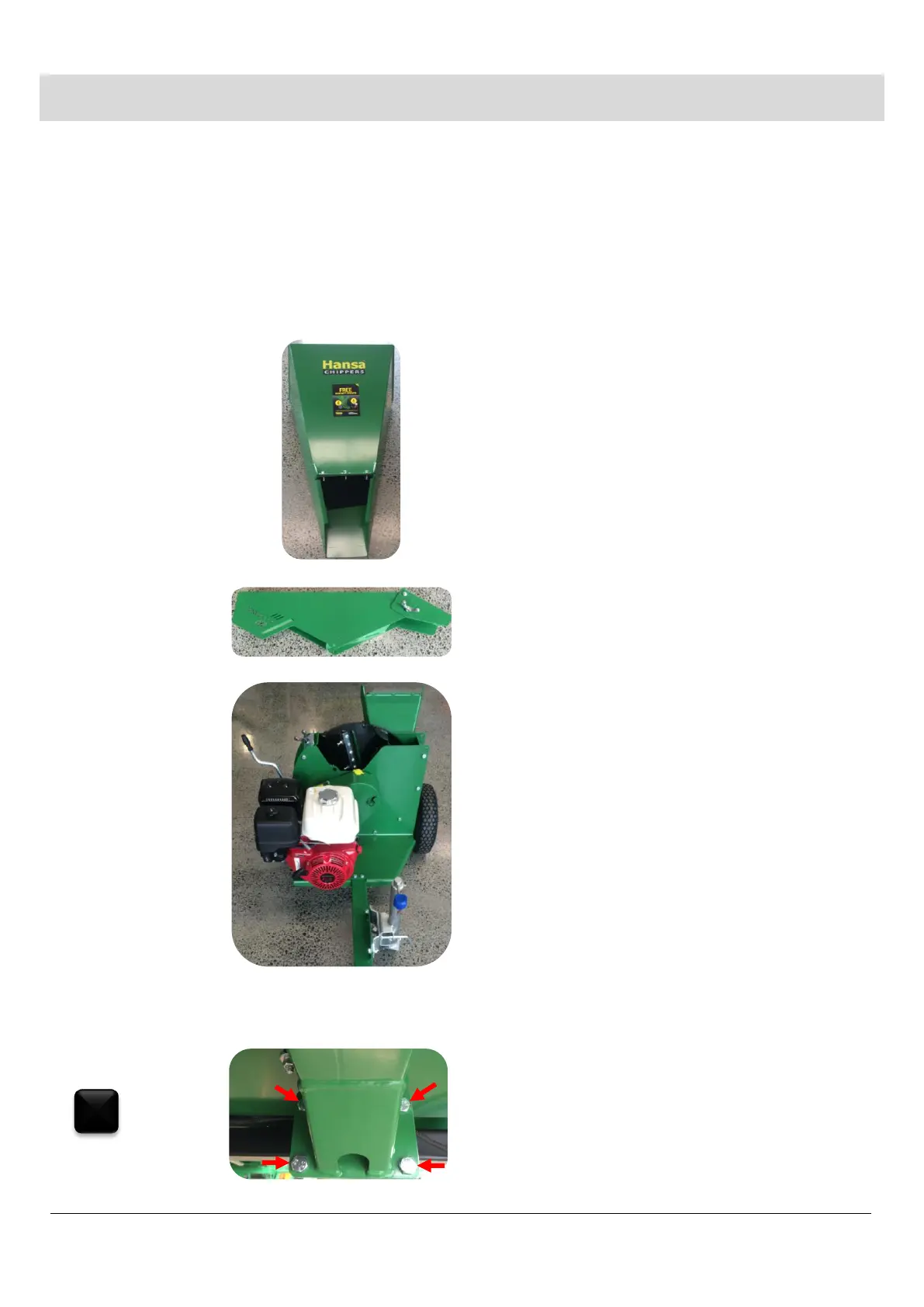

Parts supplied for assembly
Inlet chute
Outlet chute
Chipper body
Attach the drawbar
Slide the wire loom through the drawbar so that
it comes out the tow hitch end.
Line up all four holes and tighten the nuts and
bolts to secure one end of the drawbar
underneath the chipper chassis.
