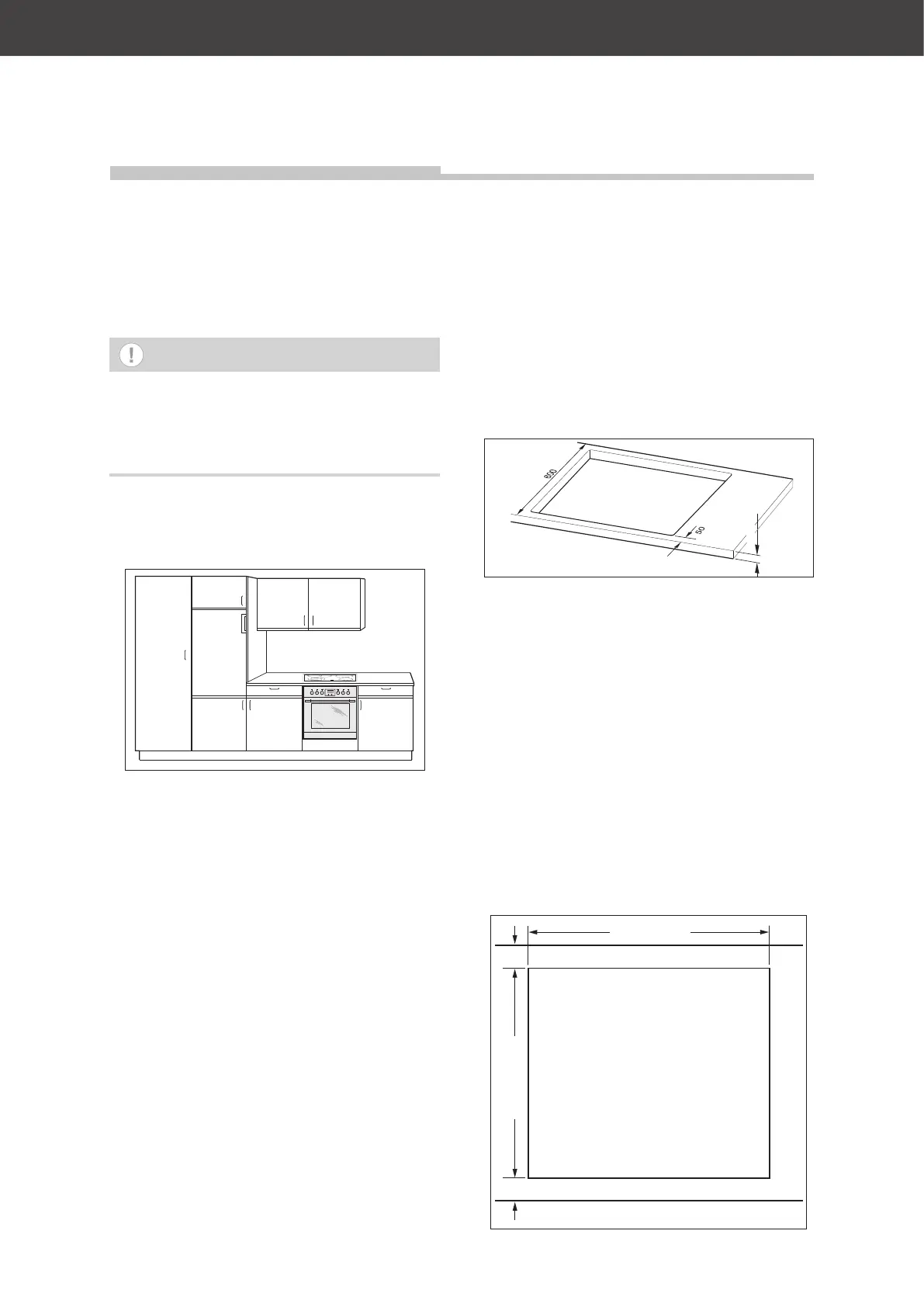

Page EN-28
Installation and connection
Transport
Your cooker set comes in sturdy packaging
and is so heavy that it should not be carried
by one person alone.
NOTICE
Risk of damage!
■ If a trolley is used to move the cook-
er set, the appliance must be lifted as
shown on the packaging.
Installation
Important user information:
The cooker set has been designed
to be installed in a kitchen unit. If
you possess the required handicraft
skills, you can install it yourself.
However, the electrical connection must be
carried out by an authorised professional.
Installation requirements
• The cooker may only be installed on one
side next to higher kitchen furniture, ap-
pliances or walls.
• The cooker should not be installed di-
rectly beside refrigerators or freezers.
Heat loss unnecessarily increases their
energy consumption.
• Keep the oven at least one centimetre
away from the wall. The cooker pow-
er connection must therefore be a
flush-mounted box or must be located
outside the installation space.
• The hob and oven are connected by the
permanently installed wiring harness;
they must therefore be installed in direct
alignment to each other.
Preparing food
30 – 40
The following conditions must be fulfilled:
– The worktop must be at least 30 to 40 mm
thick and at least 600 mm deep. It must
also be horizontal and level and must be
sealed on the wall side against overflowing
liquids.
– The hob must be surrounded by at least
50 mm of worktop on all sides.
– Veneers, plastic coverings and adhesives
which are used must be resistant to heat
(100°C).
1. Use a jigsaw to cut a hole in the worktop
for the hob. It must have the following di-
mensions.
(Measurements in mm)
560 to 562
490 to 492
min.
50
min.
50
Installation and connection
To Next Page
