Hanseatic BF-6A31E4E1G - Wiring Diagrams and Connection Details

Installation and connection
Page EN-31

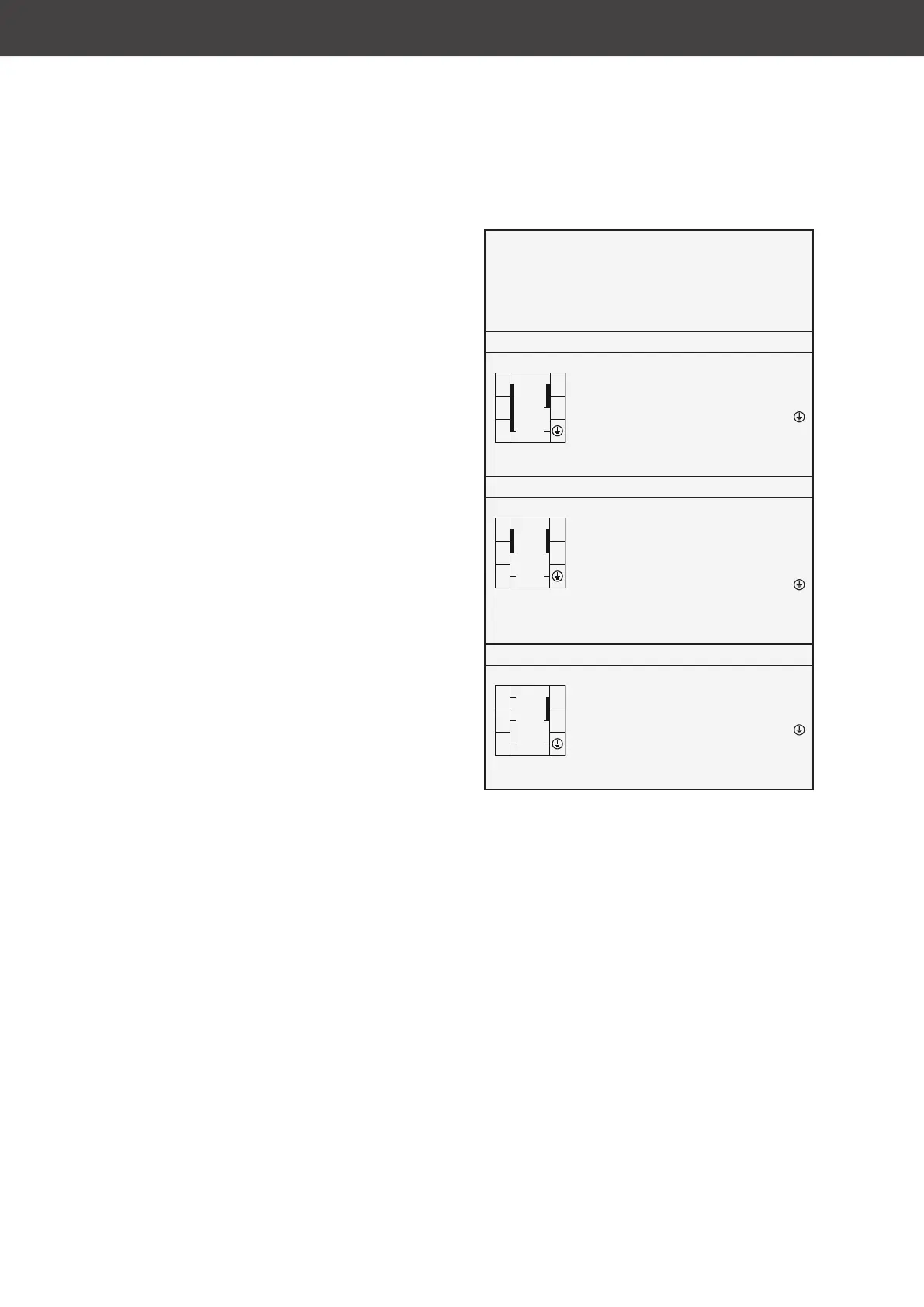

2. Make sure that all poles of the connection
cables are disconnected and that effec-
tive earthing is possible.
3. Use a screwdriver to open the terminal
box.
4. Connect the wires and, if necessary,
the enclosed brass bridges to the corre-
sponding contact terminals of the cooker
power connection in accordance with the
circuit diagrams shown here.
5. Lay the connection cable behind the
stove so that it does not touch the rear
wall of the cooker. The rear cooker wall
becomes hot while it is in use.
L1–L3: Phase(s)
N: Neutral conductor
PE: Protective conductor (earth wire)
220–240 V ~, 50/60 Hz
L1
N
PE
3
2
1
4
5
L1 to 1 2 3 (bridged)
N to
4 5 (bridged)
Protective conductor (PE) to
Conductor cross-section:
3 x 10 mm
2
380–415 V 2N~, 50/60 Hz
L2
L1
N
PE
3
2
1
4
5
L1 to 1
L2 to 2 3 (bridged)
N to
4 5 (bridged)
Protective conductor (PE) to
Conductor cross-section:
4 x 2.5 mm
2
380–415 V 3N~, 50/60 Hz
L2
L3
L1
N
PE
3
2
1
4
5
L1 to 1, L2 to 2, L3 to 3
N to
4 5 (bridged)
Protective conductor (PE) to
Conductor cross-section:
5 x 1.5 mm
2
