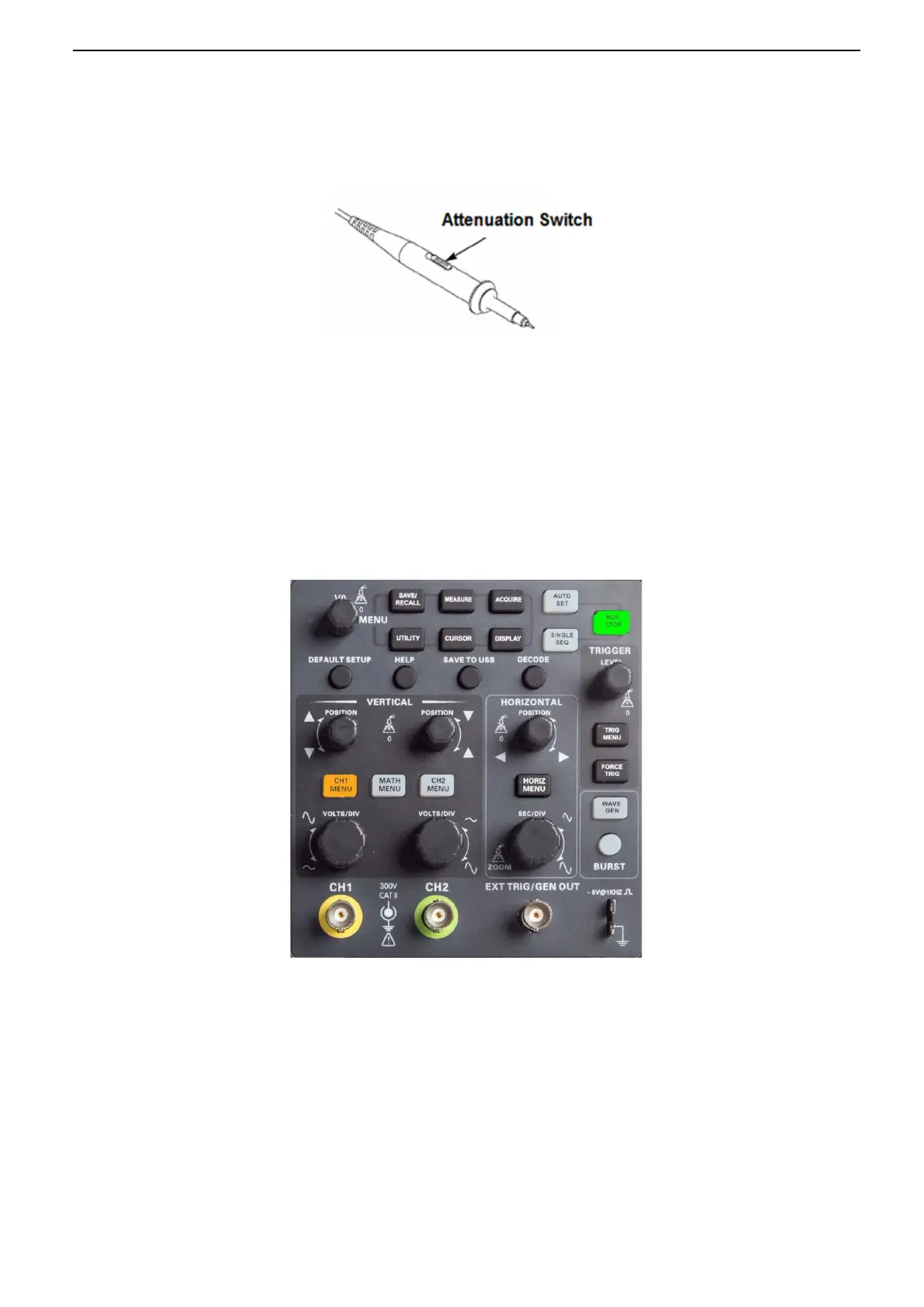

Make sure that the Attenuation switch on the probe matches the Probe option in the oscilloscope.
Switch settings are 1X and 10X.
When the Attenuation switch is set to 1X, the probe limits the bandwidth of the oscilloscope to 6MHz.
To use the full bandwidth of the oscilloscope, be sure to set the switch to 10X.
2. Function Introduction
This chapter provides some general information that you need to learn before using an oscilloscope. It
contains:
2.1. Menu and Control Keys
As shown in the figure below:
All the keys are described as follows:
Menu keys
◼ [SAVE/RECALL]: "Save/Recall" menu, to save and recall files such as waveforms and settings.
◼ [MEASURE]: “Measure” menu, to measure waveform parameters such as frequency and amplitude.
◼ [ACQUIRE]: Waveform “Acquisition” menu, to set waveform acquisition parameters such as
acquisition mode, storage depth.
