: Vertical arrow, turn the Multifunctional Knob to set a value.
3.3. Burst setting
Press the front panel Burst button to enter the burst menu.
Press the Count soft key to set the number of pulses. The range is 1~1024.
The data source is specified as manual.
Press Burst to output a burst with a specified number of cycles.

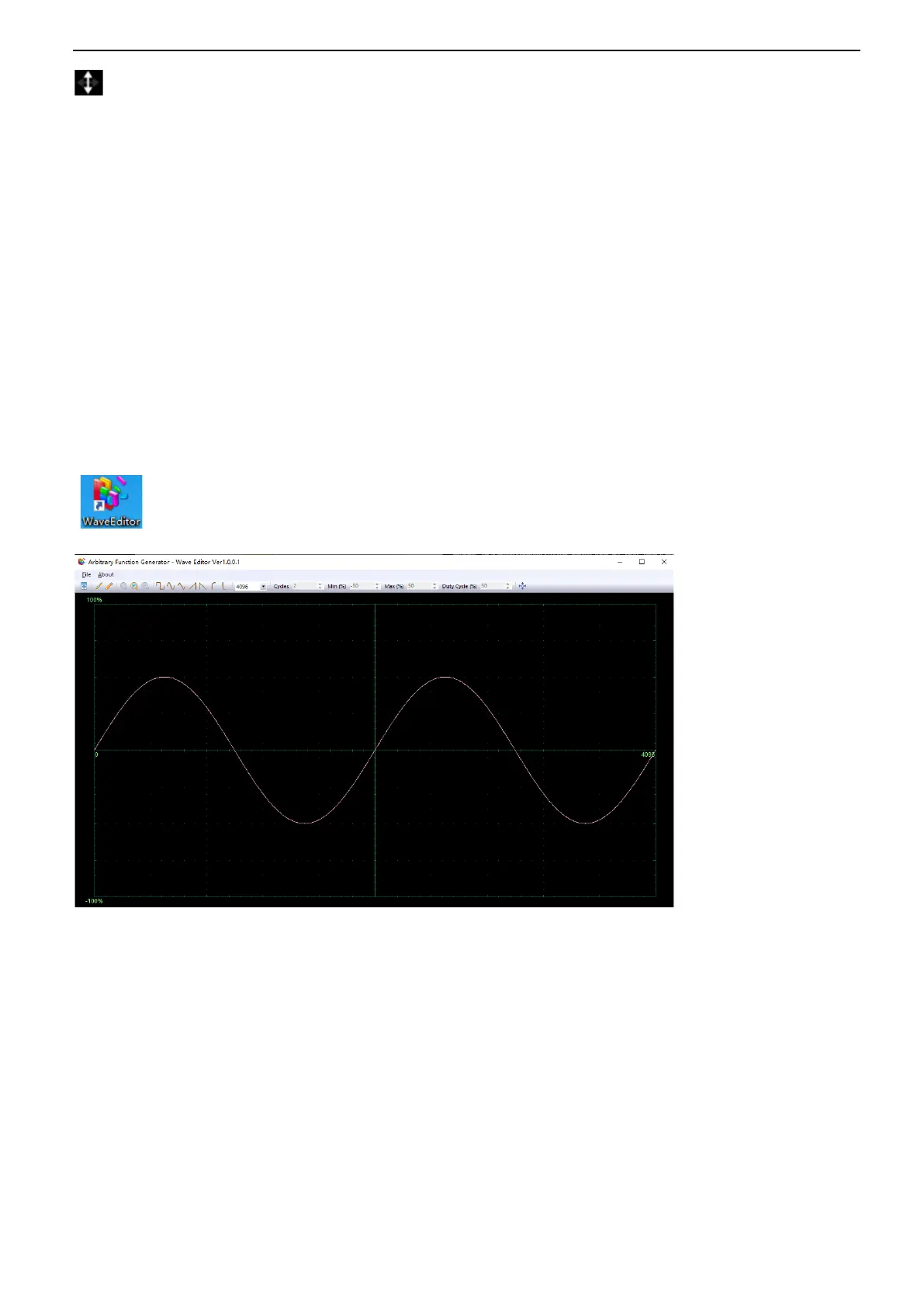

3.4. Edit Arbitrary Waveform
Double click “WaveEditor.exe” in WaveEditor folder in CD disk to enter arbitrary waveform generator
window.
.
Menu:
Import from CSV: Import the CSV format file to the arbitrary waveform generator window.
Export as CSV: Save as CSV format file.
Import from ARB: Import the ARB format file to the arbitrary waveform generator window.
Export as ARB: Save as ARB format file.
Note: The device can recall ARB format file in USB disk, but CSV format file can’t be recalled by the
device.
Toolbar buttons
