9 / 72
digital oscilloscope so that you can get familiar with this series of digital oscilloscope well within the
shortest time.

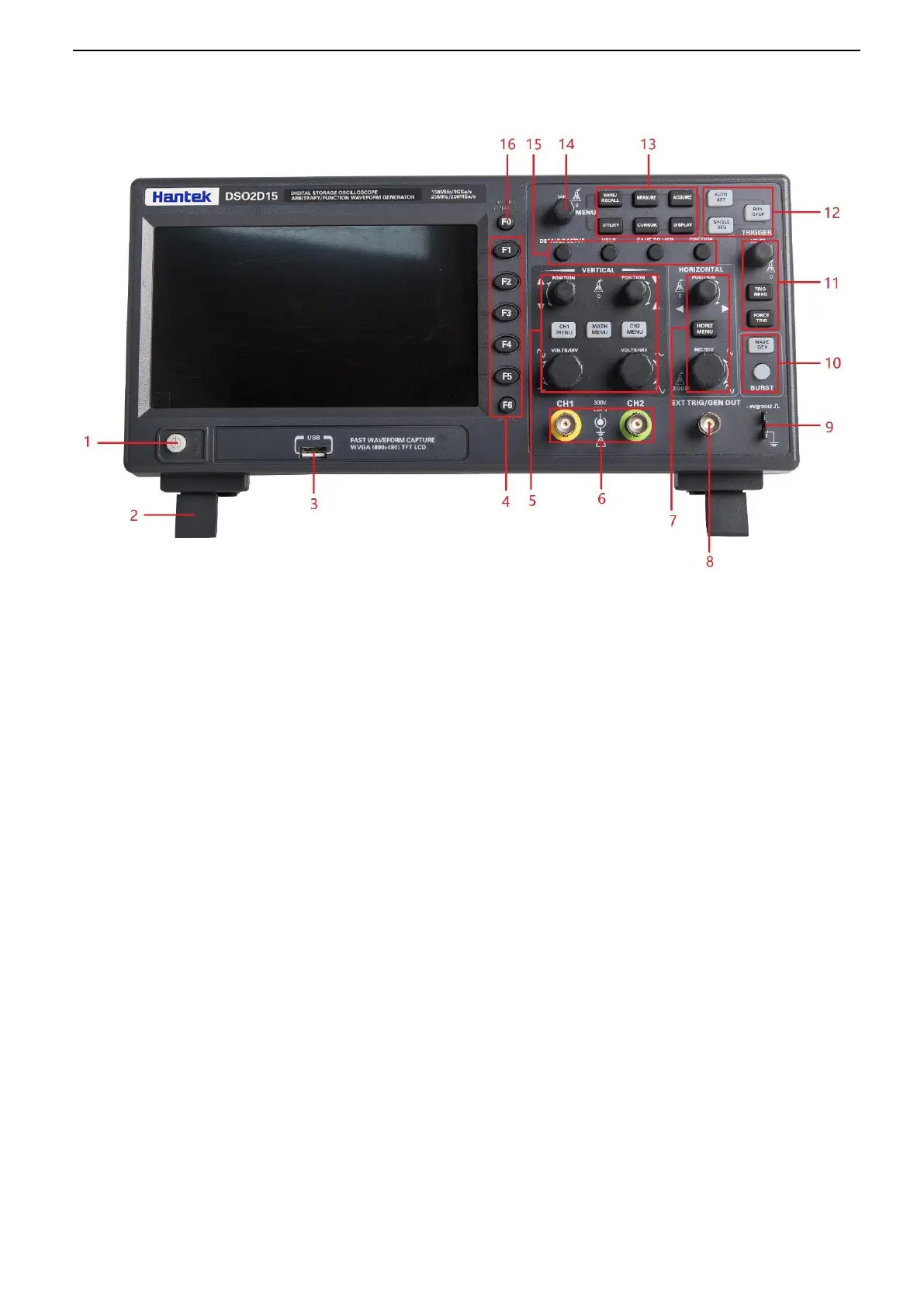

1. Power button
2. Bracket
3. USB interface
4. Menu selection key
5. Vertical control system
6. CH1ćCH2 Input Channel for signal
7. Horizontal control system
8. Signal source output (only valid for model with function generator) /external trigger input channel
9. Probe compensation function zone
10. Signal source (only valid for model with function generator)
11. Trigger control system
12. Operation mode hot key (Run/Stop, Single SEQ, Auto Set)
13. Menu Function Button
14. Multifunctional Knob
15. Function hot key
16. Menu display/hide key
