: Vertical arrow, turn the Multifunctional Knob to set a value.
3.3. Burst setting
Press the front panel Burst button to enter the burst menu.
Press the Count soft key to set the number of pulses. The range is 1~1024.
The data source is specified as manual.
Press Burst to output a burst with a specified number of cycles.
3.4. Edit Arbitrary Waveform

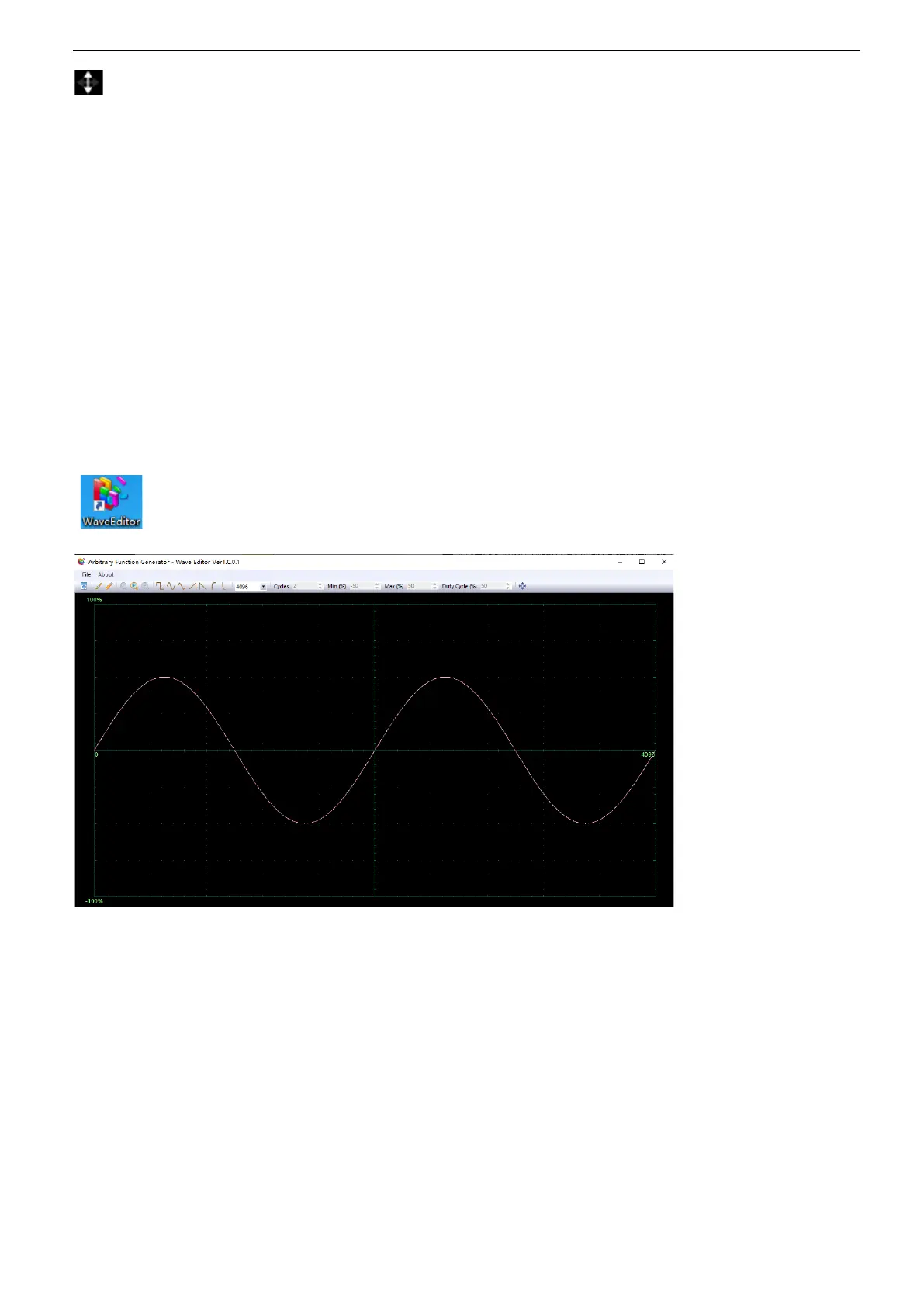

Double click “WaveEditor.exe” in WaveEditor folder in CD disk to enter arbitrary waveform generator
window.
.
Menu:
Import from CSV: Import the CSV format file to the arbitrary waveform generator window.
Export as CSV: Save as CSV format file.
Import from ARB: Import the ARB format file to the arbitrary waveform generator window.
Export as ARB: Save as ARB format file.
Note: The device can recall ARB format file in USB disk, but CSV format file can’t be recalled by the
device.
Toolbar buttons

Hantek DSO2D10 Specifications

General

Bandwidth	100 MHz
Channels	2
Sample Rate	1 GSa/s
Vertical Sensitivity	2 mV/div to 10 V/div
Trigger Modes	Edge, Pulse, Video, Slope, Alternate
Interface	USB Host, USB Device
Math Functions	+, -, *, /, FFT
Vertical Resolution	8 bits
Display Resolution	800 x 480 pixels
Power Supply	100-240 V AC, 50/60 Hz
Weight	2.5 kg
Display	7 inch LCD
Built-in Generator	Yes, 25 MHz
Input Impedance	1 MΩ ± 2%
