57 / 72

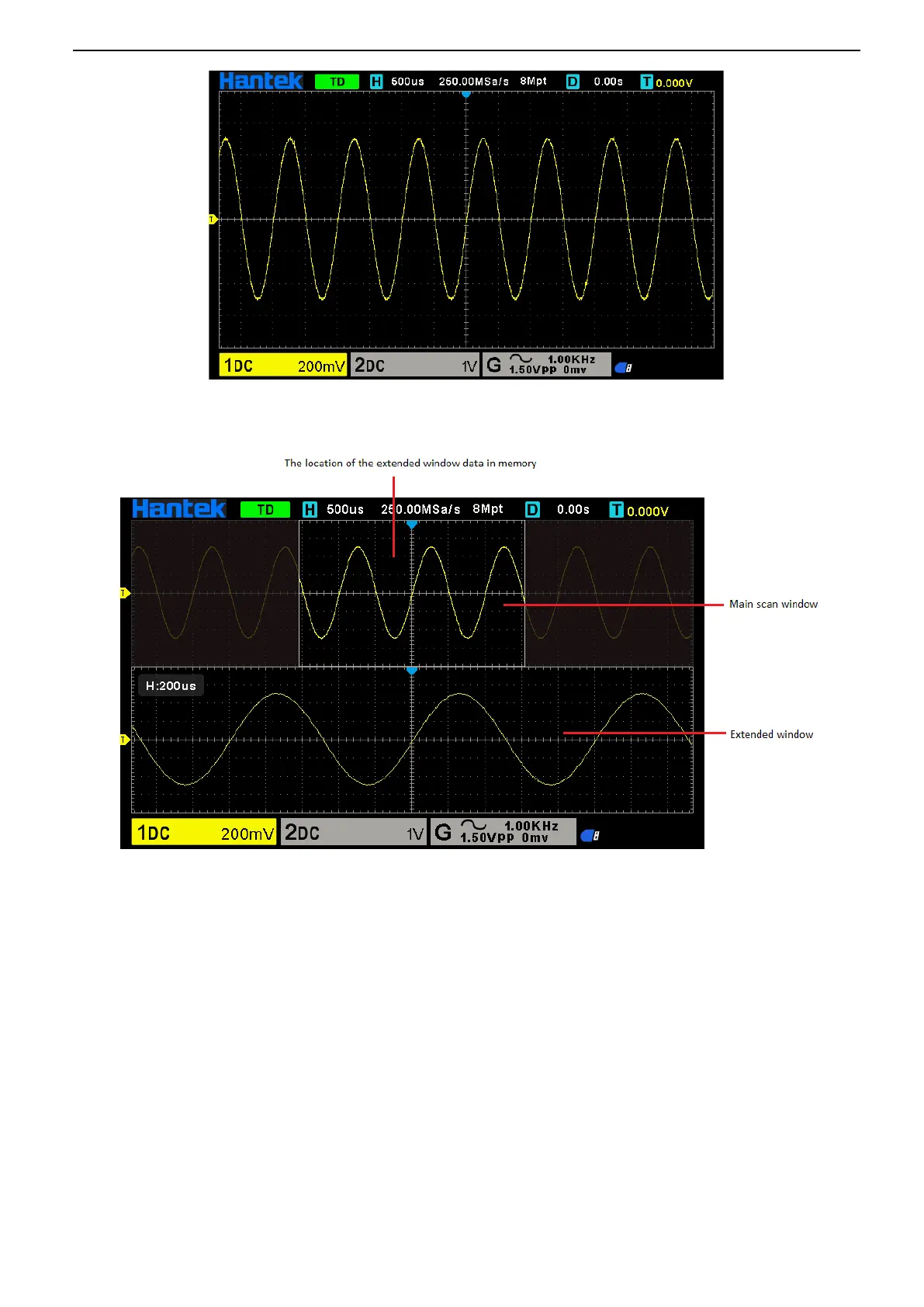

Dual-window Mode
3. Waveform Generator
The series oscilloscope is equipped with waveform generator function, with one channel of arbitrary
waveform output. User can edit the arbitrary waveform or choose the regular waveform such as Sine,
Ramp, Square, Exponent, Noise, DC and Arb waveform.
3.1. Set Wave Type and Parameters
1. Press the [Wave Gen] button on the front panel to open the arbitrary waveform generator function.
2. Press the Wave softkey; then turn the Multifunctional Knob to select the desired waveform and
push down the knob to confirm. Press the Wave Type softkey continually can also select the waveform

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Hantek DSO2D10 and is the answer not in the manual?

Hantek DSO2D10 Specifications

General IconGeneral
Bandwidth100 MHz
Channels2
Sample Rate1 GSa/s
Vertical Sensitivity2 mV/div to 10 V/div
Trigger ModesEdge, Pulse, Video, Slope, Alternate
InterfaceUSB Host, USB Device
Math Functions+, -, *, /, FFT
Vertical Resolution8 bits
Display Resolution800 x 480 pixels
Power Supply100-240 V AC, 50/60 Hz
Weight2.5 kg
Display7 inch LCD
Built-in GeneratorYes, 25 MHz
Input Impedance1 MΩ ± 2%
