Hantek DSO2D10 User Manual

13 / 72

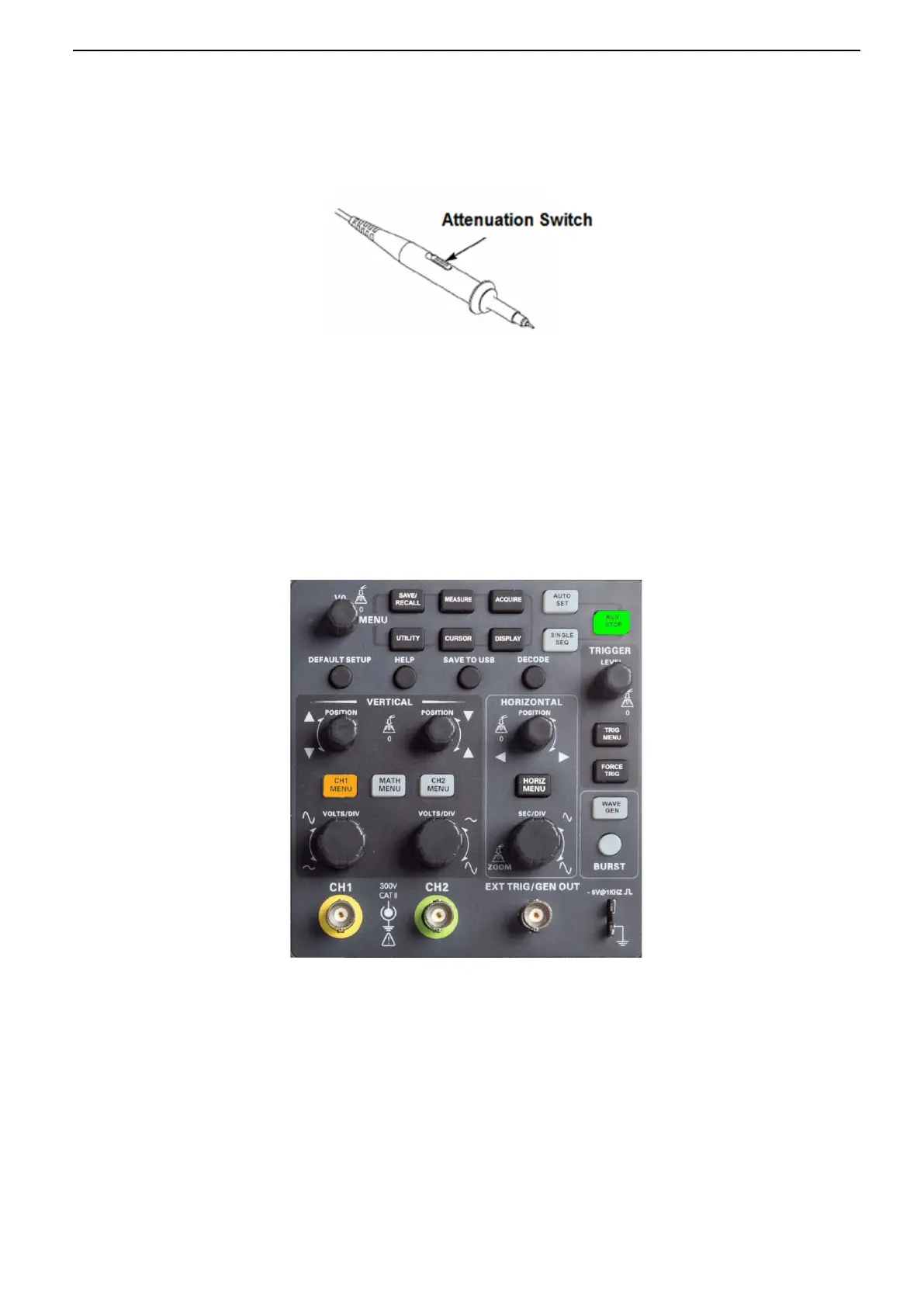

Make sure that the Attenuation switch on the probe matches the Probe option in the oscilloscope.
Switch settings are 1X and 10X.
When the Attenuation switch is set to 1X, the probe limits the bandwidth of the oscilloscope to 6MHz.
To use the full bandwidth of the oscilloscope, be sure to set the switch to 10X.
2. Function Introduction
This chapter provides some general information that you need to learn before using an oscilloscope. It
contains:
2.1. Menu and Control Keys
As shown in the figure below:
All the keys are described as follows:
Menu keys
◼ [SAVE/RECALL]: "Save/Recall" menu, to save and recall files such as waveforms and settings.
◼ [MEASURE]: “Measure” menu, to measure waveform parameters such as frequency and amplitude.
◼ [ACQUIRE]: Waveform “Acquisition” menu, to set waveform acquisition parameters such as
acquisition mode, storage depth.

Hantek DSO2D10 Specifications

General

Bandwidth	100 MHz
Channels	2
Sample Rate	1 GSa/s
Vertical Sensitivity	2 mV/div to 10 V/div
Trigger Modes	Edge, Pulse, Video, Slope, Alternate
Interface	USB Host, USB Device
Math Functions	+, -, *, /, FFT
Vertical Resolution	8 bits
Display Resolution	800 x 480 pixels
Power Supply	100-240 V AC, 50/60 Hz
Weight	2.5 kg
Display	7 inch LCD
Built-in Generator	Yes, 25 MHz
Input Impedance	1 MΩ ± 2%
