Basic Operation
DSO4000 Series Digital Storage Oscilloscope 7
2.1 Menu and control keys
As shown in the figure below:

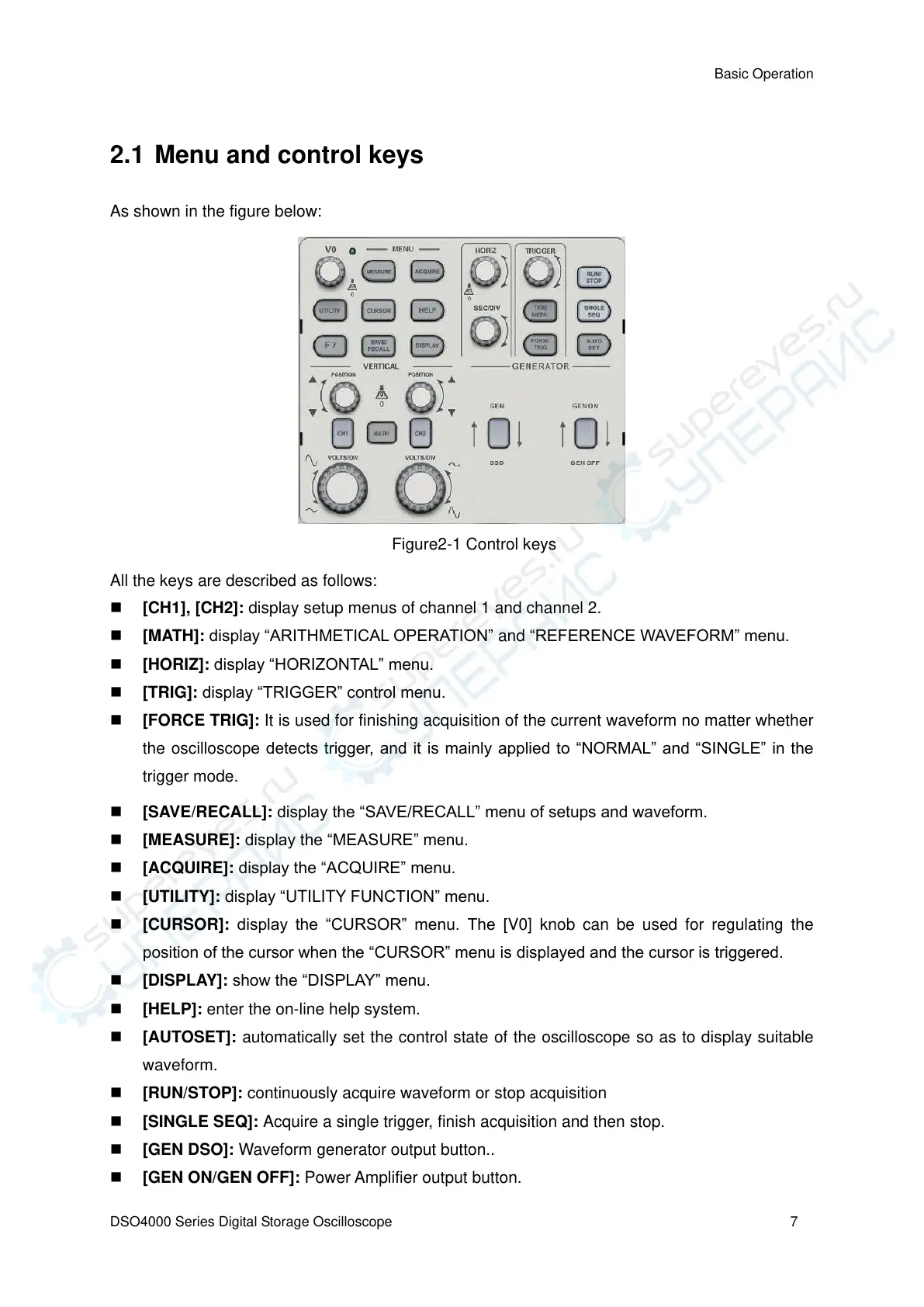

Figure2-1 Control keys
All the keys are described as follows:
[CH1], [CH2]: display setup menus of channel 1 and channel 2.
[MATH]: display “ARITHMETICAL OPERATION” and “REFERENCE WAVEFORM” menu.
[HORIZ]: display “HORIZONTAL” menu.
[TRIG]: display “TRIGGER” control menu.
[FORCE TRIG]: It is used for finishing acquisition of the current waveform no matter whether
the oscilloscope detects trigger, and it is mainly applied to “NORMAL” and “SINGLE” in the
trigger mode.
[SAVE/RECALL]: display the “SAVE/RECALLmenu of setups and waveform.
[MEASURE]: display the “MEASURE” menu.
[ACQUIRE]: display the “ACQUIRE” menu.
[UTILITY]: display UTILITY FUNCTION” menu.
[CURSOR]: display the “CURSOR menu. The [V0] knob can be used for regulating the
position of the cursor when the “CURSOR” menu is displayed and the cursor is triggered.
[DISPLAY]: show the “DISPLAY” menu.
[HELP]: enter the on-line help system.
[AUTOSET]: automatically set the control state of the oscilloscope so as to display suitable
waveform.
[RUN/STOP]: continuously acquire waveform or stop acquisition
[SINGLE SEQ]: Acquire a single trigger, finish acquisition and then stop.
[GEN DSO]: Waveform generator output button..
[GEN ON/GEN OFF]: Power Amplifier output button.
