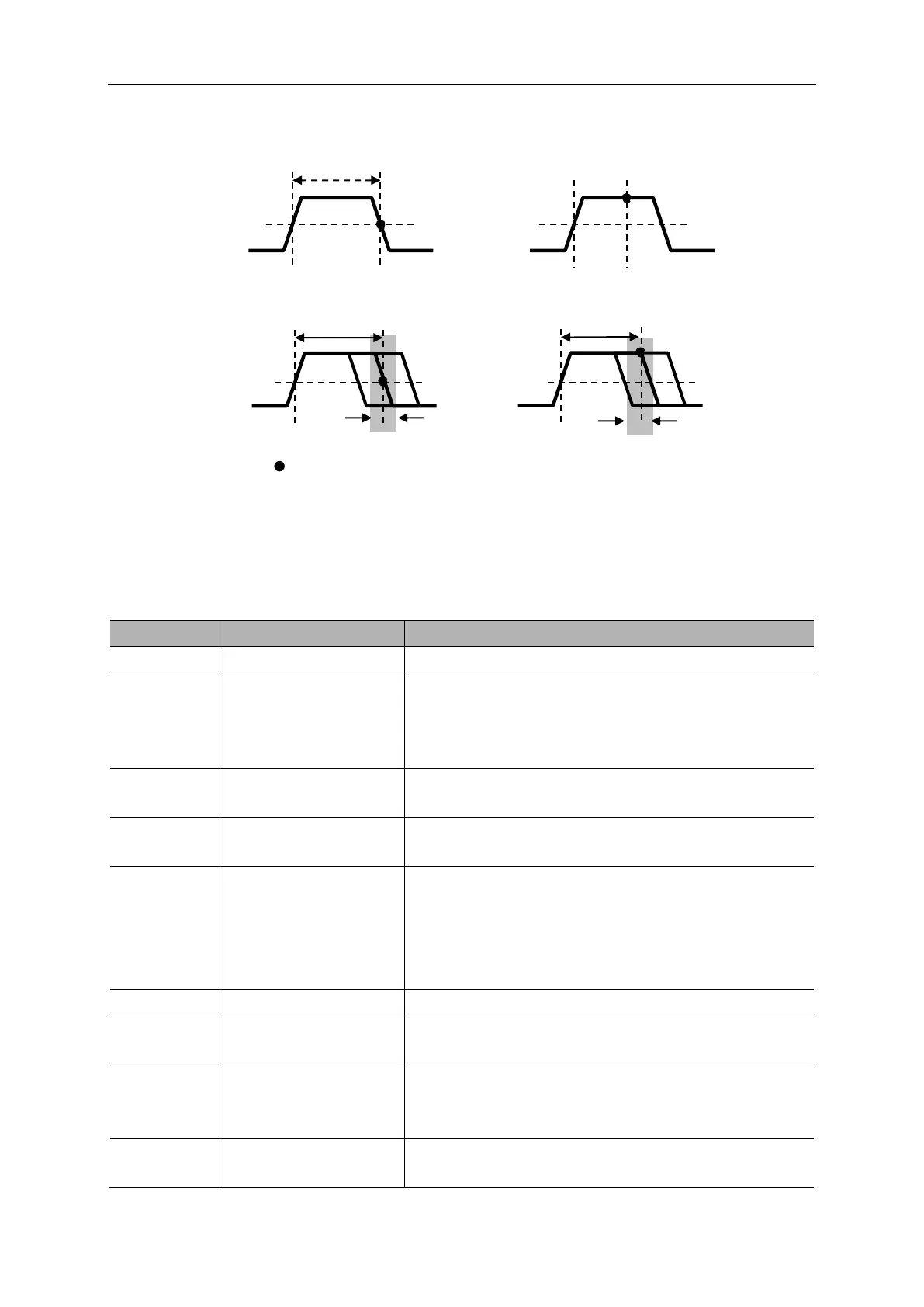

＝, ≠: Within a ±5% tolerance, triggers the oscilloscope when the signal pulse width is equal to
or not equal to the specified pulse width.
＜, ＞: Triggers the oscilloscope when the source signal pulse width is less than or greater
than the specified pulse width.
Slope Trigger: Judges trigger according to the time for rising or falling, more flexible and accurate
than the Edge trigger.
Select the input source as the trigger signal.
Select the slope type of signal.
Select the type of trigger. The Normal mode is best for
most pulse width trigger applications.
AC
DC
Noise Reject
HF Reject
LF Reject
Selects the components of the trigger signal applied to
the trigger circuitry.
Adjust the vertical window by setting two trigger levels.
Select this option and press F3 to choose V1 or V2.
Select the trigger condition.
With this option highlighted by pressing F4, turn the
multi-functional knob to set the time span.
Triggers when pulse is
equal to width setting ±5%
Triggers when pulse is
greater than width setting
Triggers when pulse is not
equal to width setting ±5%
Triggers when pulse is
less than width setting
To Next Page
