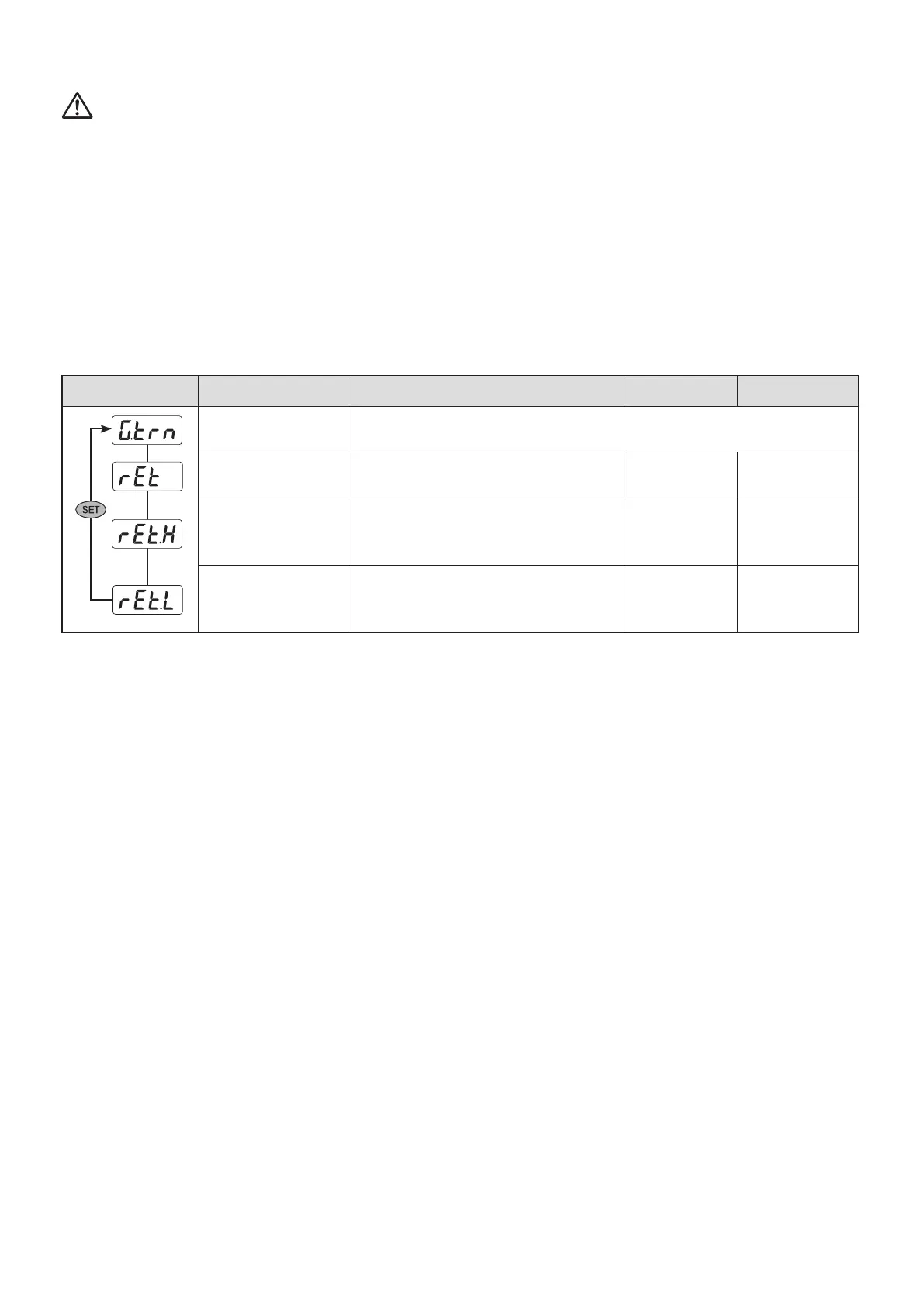

Signal Item Setup range
Display condition
Initial value
Retransmission
setup group
Setup below items.
Retransmission
output selection
PV, SV, MV(output volume), SPS Always PV
Max. Retransmission
output
T.C, R.T.D : FR-H~FR-L
mV,V : SL-H~SL-L (RET.H > RET.L)
RET=PV
MV,SV
Selected
T.C,RTD : FR-H
mV, V : SL-H
Min. Retransmission
output
T.C, R.T.D : FR-H~FR-L
mV,V : SL-H~SL-L (RET.H > RET.L)
RET=PV
MV,SV
Selected
T.C,RTD : FR-H
mV, V : SL-H
8-1-4. Retransmission Setup Group
Caution
● Retransmission Output Wiring
- Must disconnect the controller and external power source when setting up/removing a receiver since there is a danger
of electric shock.
- Use same terminal for retransmission output and SPS output. Use of the terminal with what function of output is selected
through parameter.
- 4/20m ADC is outputted for the retransmission output.
- When using the retransmission output, it is impossible to use the SPS function for sensor.
● SPS Output Wiring for Sensor
- Must disconnect the controller and external power source when setting up/removing a sensor since there is a danger
of electric shock.
- Same terminal is used for the SPS output and the previous retransmission output. Which side a terminal is outputted and
used is set up depending on the parameter. (24 V DC 20 mA DC MAX)
1) Selection of retransmission Output :
Process value, output volume or setup value can range from 4 - 20 mA DC as retransmission output and
when SPS is selected, power for external sensor will be outputted. (24 V DC 20 mA max)
2) Selection of Maximum & Minimum Retransmission Output :
4 - 20 mA DC output can be selected within the range of value from the maximum range selection (FR-H)
and the minimum range selection (FR-L) in case of thermocouple or R. T. D input. As for the voltage
output (V, mV), select the desired maximum and minimum range within the maximum scale (SL-H) and
(SL-L).
To Next Page
