62
GB 14 05 02
Maintenance
4. Air br4. Air br
4. Air br4. Air br
4. Air br
akak
akak
ak
e fe f
e fe f
e f
ilterilter
ilterilter
ilter
s (ifs (if
s (ifs (if
s (if
f f
f f
f
itted)itted)
itted)itted)
itted)

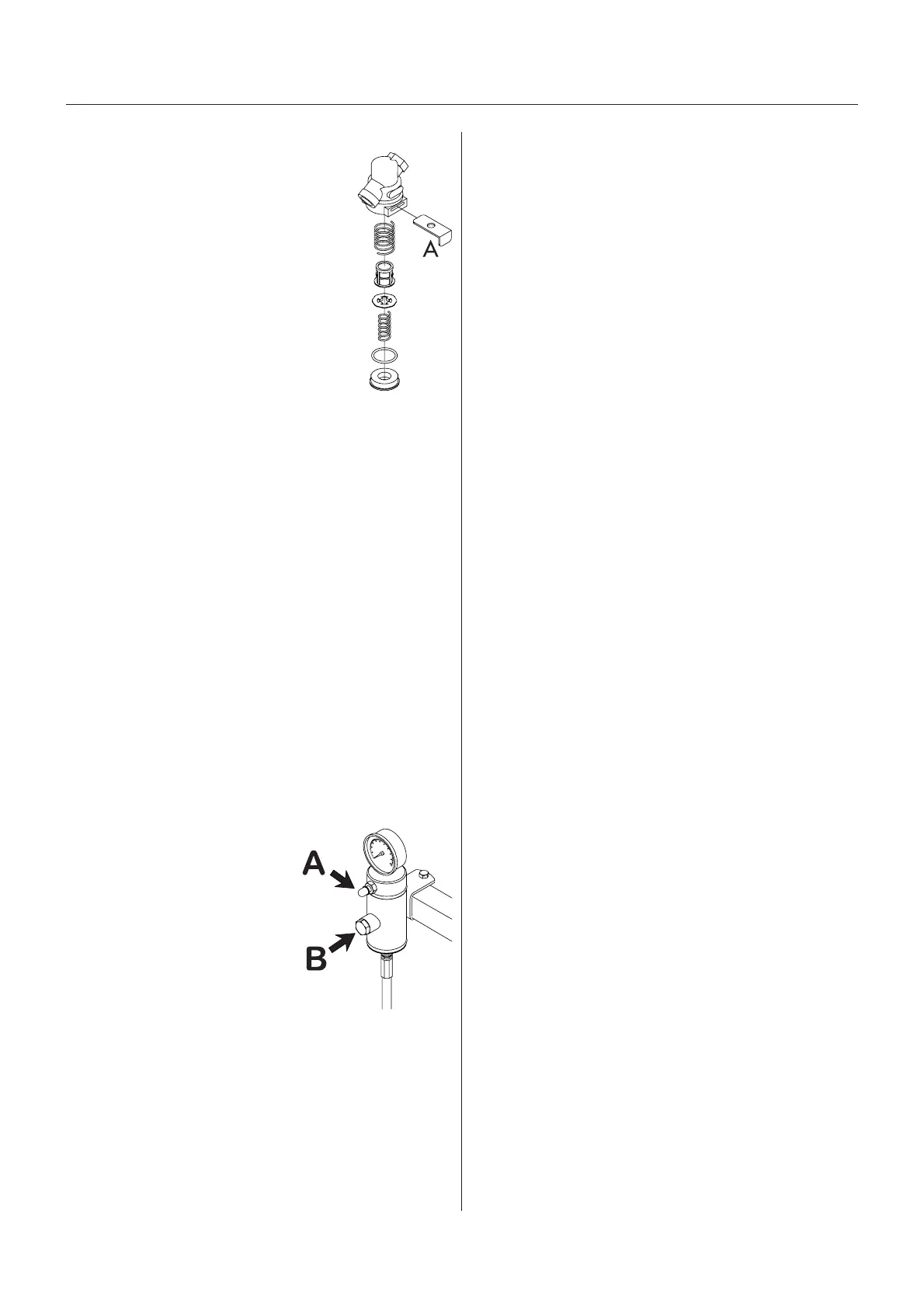

1. Clean the area around air filter(s) and
disconnect air hose from the tractor.
2. Hold one hand under the filter hous-
ing, and pull out the retainer clip A.
The filter cartridge assembly will be
pushed out by the springs inside the
filter housing.
3. Clean the filter cartridge. Use water
and an appropriate detergent or
compressed air.
4. Dry the parts and reinstall in the order
shown. The O-ring should be lightly
lubricated with silicone grease before
installation.
5. Hy5. Hy
5. Hy5. Hy
5. Hy
drdr
drdr
dr
aulic braulic br
aulic braulic br
aulic br
akak
akak
ak
eses
eses
es
Apply brakes to full pressure and inspect brake lines for
damages or leaks. Replace damaged parts.
IMPORTANT! If the hydraulic brake lines have been
dismantled the circuit must be primed afterwards:
1. Loosen brake hose at both brake cylinders.
2. Apply brake until oil without air bubbles come out.
3. Tighten brake hose before relieving the brake again.
6. Hy6. Hy
6. Hy6. Hy
6. Hy
drdr
drdr
dr
aulic ciraulic cir
aulic ciraulic cir
aulic cir
cuitcuit
cuitcuit
cuit
Check the hydraulic circuit for leaks and repair if any.
7. Expansion bottle (SELF TRA7. Expansion bottle (SELF TRA
7. Expansion bottle (SELF TRA7. Expansion bottle (SELF TRA
7. Expansion bottle (SELF TRA
CK only)CK only)
CK only)CK only)
CK only)
Check the oil level:
1. Depressurize the expansion
bottle through valve A first.
2. Remove the level plug B and
check that the oil level is
reaching the level hole. Add if
the level is low.
3. Tighten the plug again and
inflate the bottle to 5 bar air
pressure.
8. Hoses and tubes8. Hoses and tubes
8. Hoses and tubes8. Hoses and tubes
8. Hoses and tubes
Check all hoses and tubes for possible damages and
proper attachment. Renew damaged hoses or tubes.
A
T180-0007
T219-0005
9. R9. R
9. R9. R
9. R
eadjustment ofeadjustment of
eadjustment ofeadjustment of
eadjustment of
the boom the boom
the boom the boom
the boom
Please see next page.
