Hardi HC2500 - System start-up; Display overview during start-up; Reading chosen volume rate; Adjusting HM 1500 alarm rate

11
5
4
3
1
2
C H A N G E V O L . R A T E
x x x L / h a
Start-up
After connecting the plugs, the power is turned on at the Spray box or power
supply. Model, version number and boom sections and size is displayed briey.

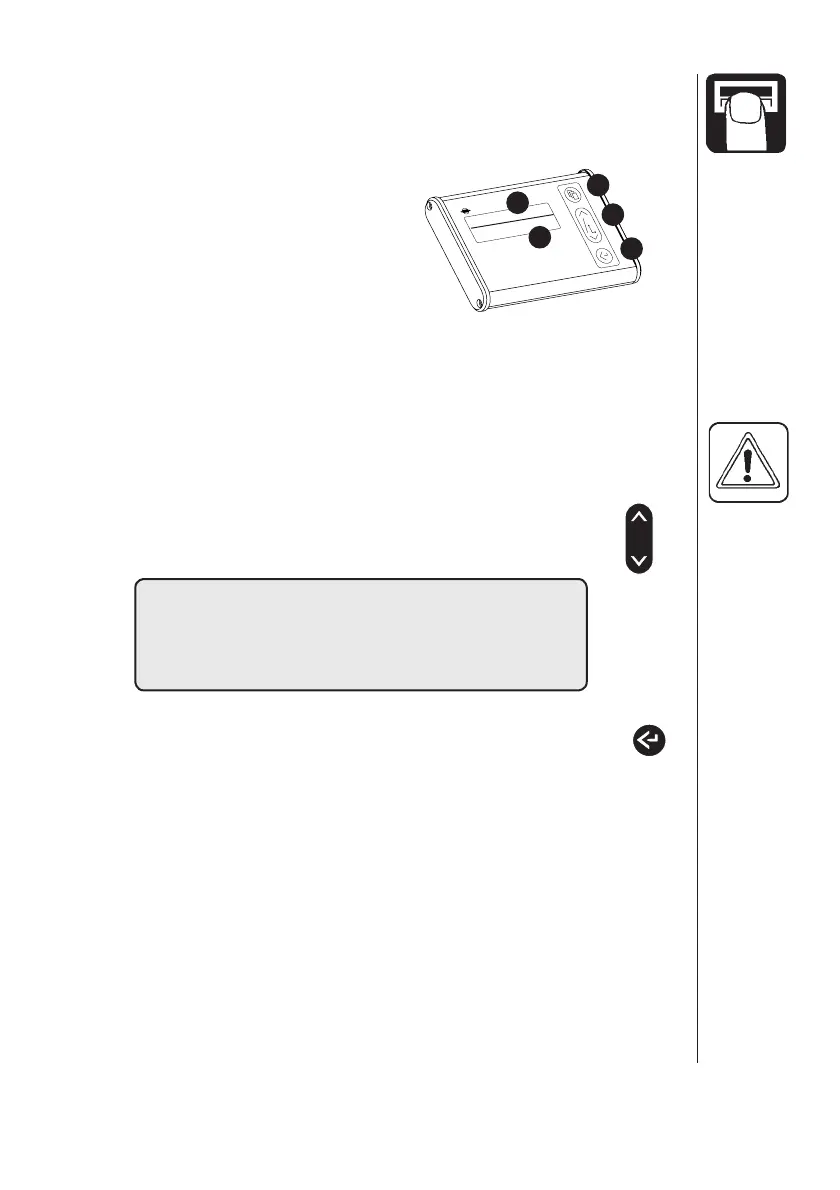

Display
1. Matrix display, upper line.
2. Matrix display, lower line.
3. Key for menu.
4. Arrow keys.
• For programmed application rate.
With HM 1500, the value is used for the dose alarm.
• To get to (scroll).
• To alter a parameter.
5. Key to accept or get out of a menu.
NOTE: Press the keys with the underside of your nger.
Avoid using your ngernail.
Reading chosen volume rate
To read the chosen volume rate, press briey either arrow keys
on the display. The chosen rate is shown.
The main picture will return again after 5 seconds or if you press
accept key.
HM 1500: Changing the desired volume rate for alarm
The desired rate must be entered if you wish to operate with the alarm. Press
either arrow keys on the display. The rate per area is shown.
If the key is pressed again it will raise or lower the chosen rate.
When the key is released the display shows the new rate for a moment and
then returns to the main picture.
HC 2500: Changing the volume rate
The rate can be changed:
• Automatically, by changing the desired rate on the HC 2500 display.
• Manually, by raising and lowering the pressure on the control box.
