Self-Cleaning Filter
With the self-cleaning filter, the impurities that exist in the spray liquid
will be filtered out and returned to the tank via the return flow.

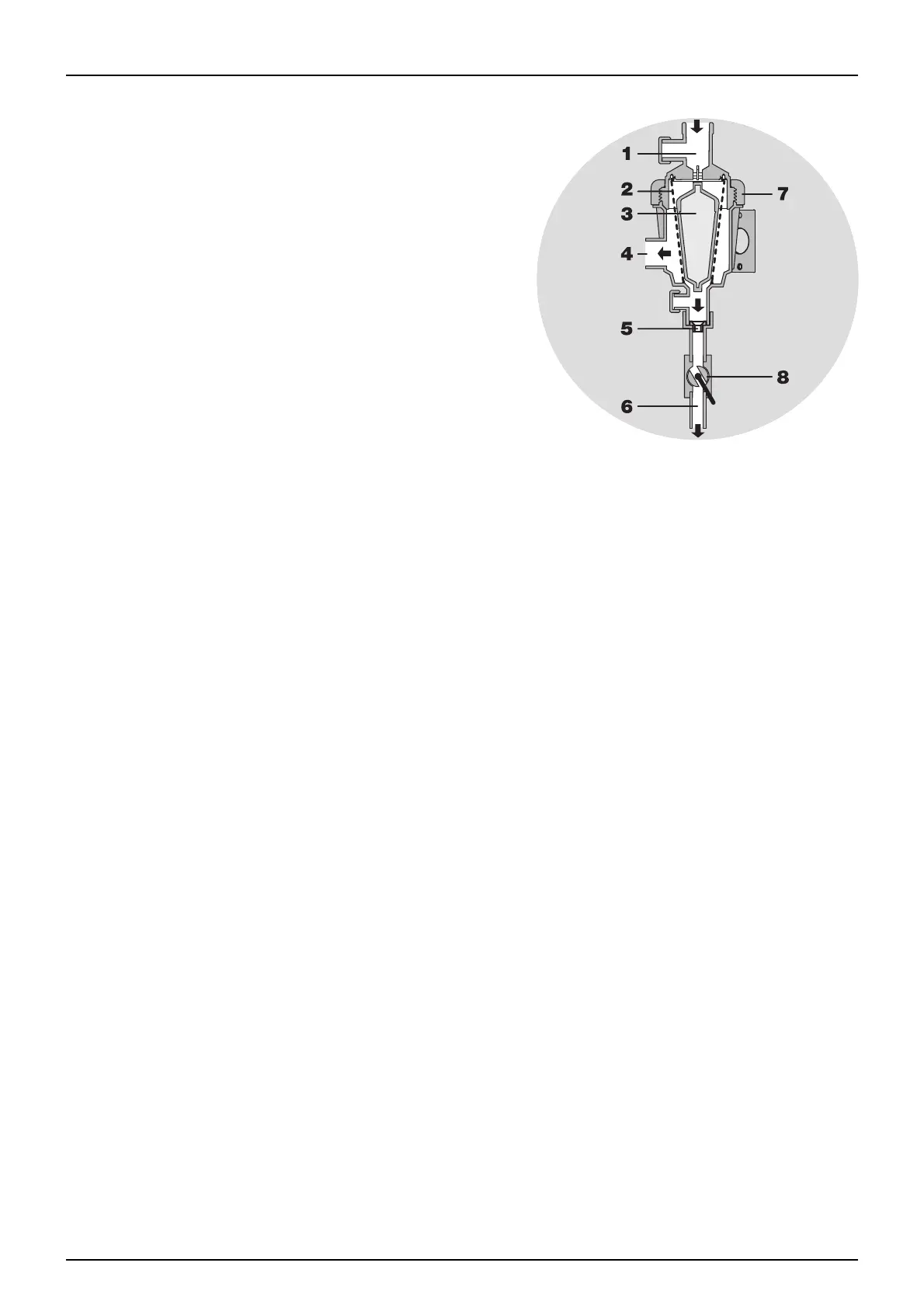

Function diagram:
1. From pump
2. Double filter screen
3. Guide cone
4. To operating unit
5. Exchangeable restrictor
6. Return to tank
7. Screw joint
8. Ball valve
μ
ATTENTION! Ball valve (8) should normally be open, but it may be closed in situations, where return flow is to be
avoided, e.g. when flushing the spray lines without diluting the spray liquid in the main tank.
If the ball valve is closed, the self-cleaning function is disabled!
