External Filling Device (optional)

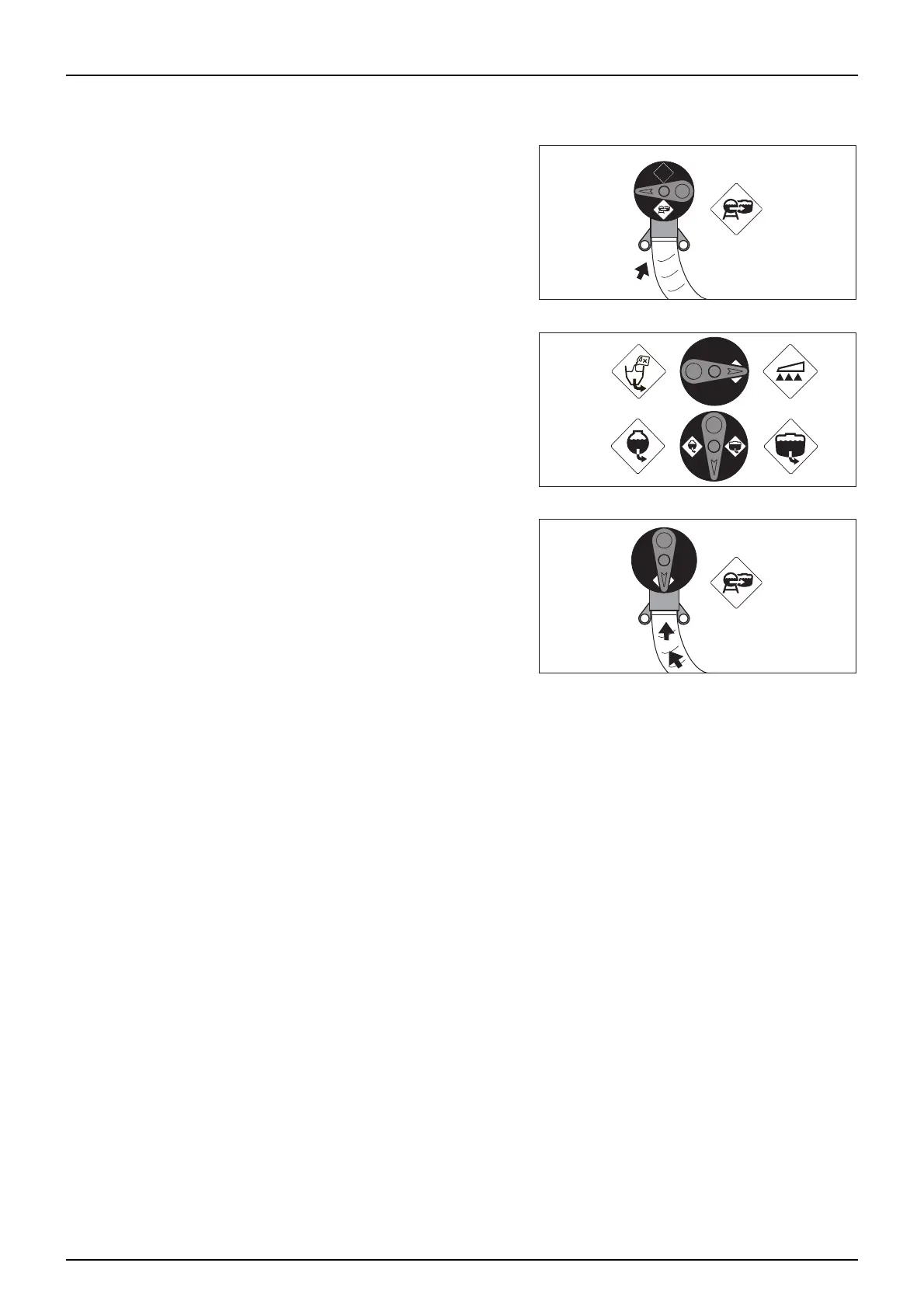

The External Filling Device (if installed) is operated as follows:
1. Remove the cap and connect a suction hose to the suction
manifold.
2. Turn the pressure valve to Spraying and if the blue return valve is
mounted, turn it to “Main tank”.
3. Close the suction valve for “MainTank / RinseTanks”.
4. Turn the suction valve to “External Filling Device”.
5. Engage the pump and set PTO revolutions at max. 540 RPM.
6. The tank is now filled with water. Keep an eye on the liquid level
indicator.
7. Turn the handle on the suction manifold away from “External
Filling Device” to discontinue the filling process. Now disengage
the pump.
8. Disconnect the suction hose and replace the cap.
€
DANGER! Prevent contamination or injury. Do not open the suction valve for the External Filling Device, unless the
pump is running and the filling hose is connected. If this valve is opened without the pump running, liquid will stream
out of the coupler.
±
WARNING! Do not leave the sprayer while filling the tank, and keep an eye on the level indicator in order NOT to
overfill the tank.
μ
ATTENTION! Observe local legislation regarding use of filling device. In some areas, it is prohibited to fill from open
water reservoirs (lakes, rivers etc.). It is strongly recommended only to fill from closed reservoirs (mobile water tanks
etc.) to prevent contamination.
