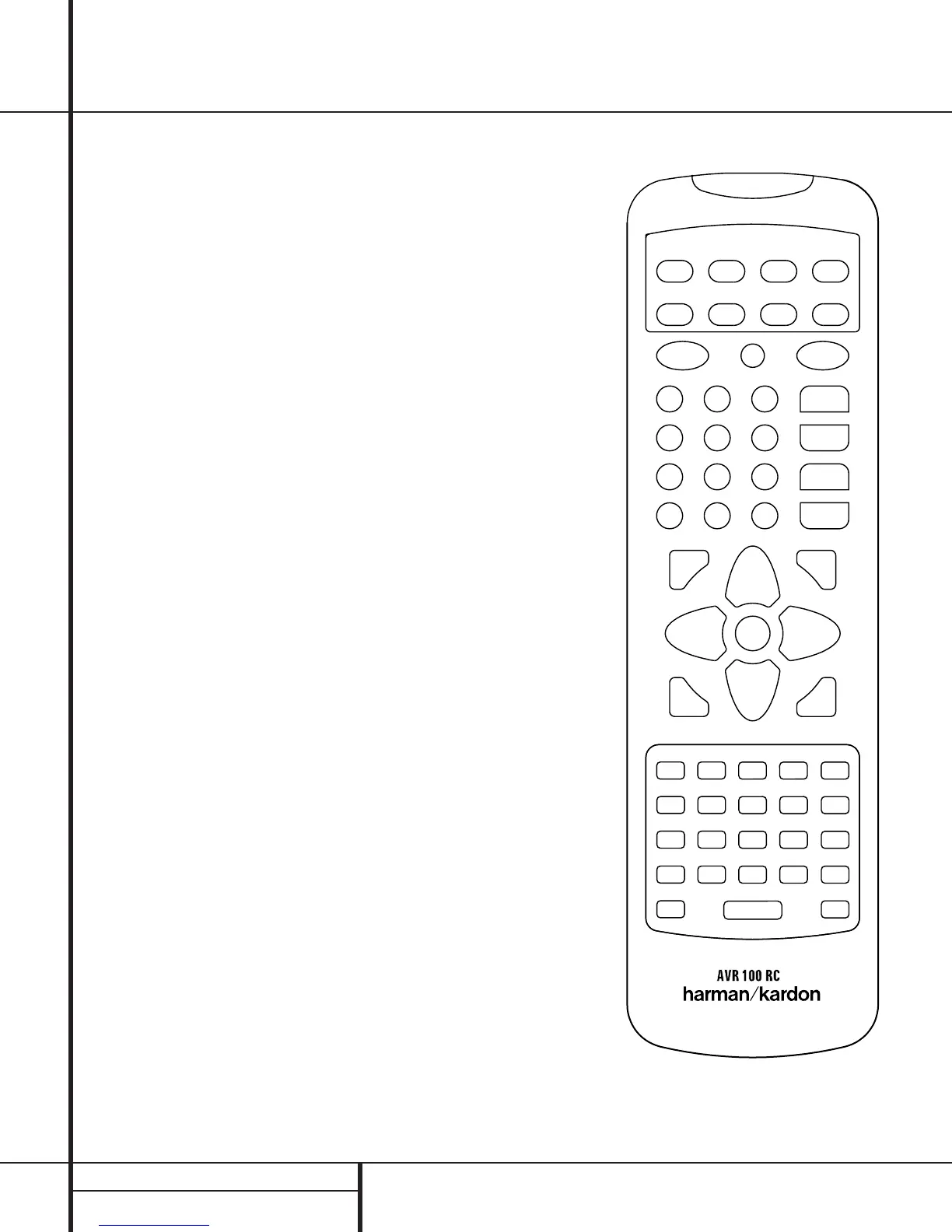

26 PROGRAMMING THE REMOTE
Programming the Remote
was valid, look at the product being
programmed to see if it turns off.
6. If the VCR to be programmed turned off, press
the DVD Device Selector a once to
complete the process.
7. If the VCR to be programmed does NOT turn
off, continue to enter any additional three
digit codes for the VCR brand until the VCR
turns off.When it does turn off, press the
DVD Device Selector a once to complete
the process.
8. If no code is entered that turns off the VCR,
try programming the VCR’s codes into the
“VCR” Device Selector a using the Auto
Search method as detailed on page 24, and
use the DVD Device Selector a to enter
the codes for a VCR that are known to be
accurate.
12
345
789
11 12 13
15 16 17
6
10
14
18
19
20
21
23
26
22 24
25
28 29 30 31 32
33 34 35 36 37
38 39 40 41 42
43 44 45 46 47
48 49 50
27

Harman Kardon AVR 100 Specifications

Audio Specifications

stereo mode power	50 Watts per channel, 20Hz–20kHz, < 0.08% THD, 8 ohms
five-channel surround mode power (front channels)	40 Watts per channel, < 0.08% THD, 20Hz–20kHz, 8 ohms
five-channel surround mode power (center channel)	40 Watts, < 0.08% THD, 20Hz–20kHz, 8 ohms
five-channel surround mode power (surround channels)	40 Watts per channel, < 0.08% THD, 20Hz–20kHz, 8 ohms
input sensitivity/impedance	250mV/47k ohms
signal-to-noise ratio (IHF-A)	90dB
frequency response	10Hz–100kHz @ 1W (+0dB, –3dB)
high instantaneous current capability (HCC)	±30 Amps
transient intermodulation distortion (TIM)	0.08% (20Hz – 20kHz)
rise time	16 µsec
slew rate	40V/µsec

FM Tuner Specifications

frequency range	87.5–108MHz
usable sensitivity	1.5µV/14.8dBf
signal-to-noise ratio mono/stereo	73/70dB
distortion mono/stereo	0.3/0.5%
stereo separation	40dB @ 1kHz
selectivity	±400kHz, 60dB
image rejection	40dB
IF rejection	100dB
tuner output level	500mV @ 1kHz, ±75kHz Dev

AM Tuner Specifications

frequency range	520–1710kHz
signal-to-noise ratio	35dB
usable sensitivity	800µV/M
distortion	1kHz, 50% Mod 1.5%
selectivity	±10kHz, 30dB

Video Specifications

video format	NTSC
input level/impedance	1Vp-p/75 ohms
output level/impedance	1Vp-p/75 ohms
video frequency response	10Hz–8MHz (–3dB)

General Specifications

power requirement	AC 120V/60Hz
power consumption	72W idle, 290W maximum (2 channels driven)
width	17.3 inches (440mm)
height	6.2 inches (156mm)
depth	14.7 inches (375mm)
weight	27.9 lb (12.6 kg)
