Harman Kardon AVR 100 User Manual

8 REAR-PANEL CONNECTIONS

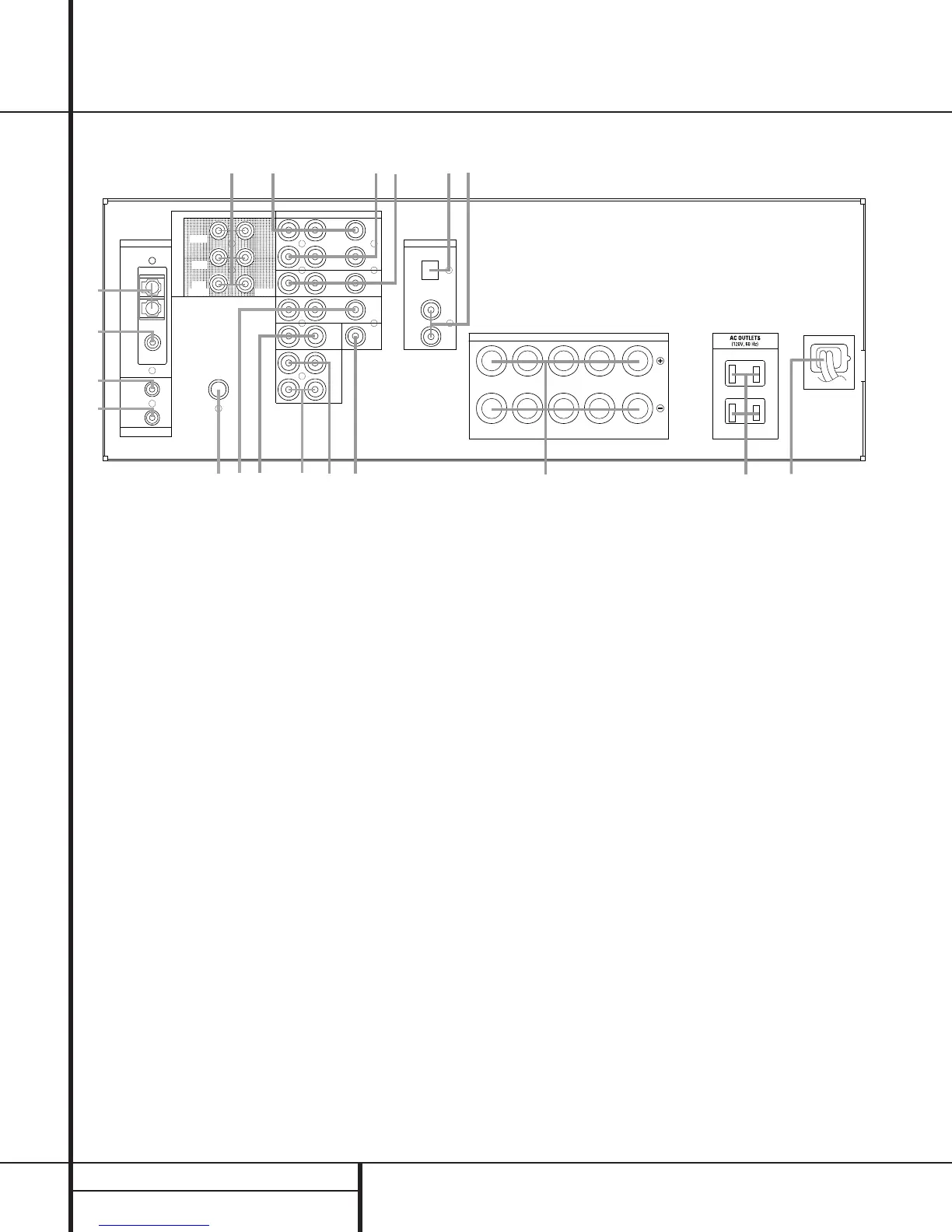

Rear-Panel Connections
ANTENNA
REMOTE CONTROL
SUB
WOOFER
OUT
DIGITAL INPUT
SPEAKERS 8 Ohms
COAX. 2
COAX. 1
OPTICAL
VIDEO 2
IN
CD IN
VIDEO
MON.
OUT
REC.
OUT
VIDEO 1
PLAY
IN
R-AUDIO-L VIDEOR L
SURR.
LEFT
SWITCHED 100W 1A MAX
AC 120V 60Hz
450W
SWITCHED 100W 1A MAX
FRONT
LEFT
CENTERFRONT
RIGHT
SURR.
RIGHT
SURR.
FRONT
CENTER
SUB
WOOFER
AM
LOOP
6
C
H.
D
I
R
E
C
T
I
N
FM
75Ω
IN
OUT
DVD IN
REC.
OUT
TAPE
PLAY
IN
£
™
¢
¡
‹
‚
¶
§
¤
⁄
• ª
∞
fl
‡
°
fi
›
·
¡ AM Antenna
™ FM Antenna
£ Remote IR Input
¢ Remote IR Output
∞ Subwoofer Output
§ DVD Inputs
¶ CD Inputs
• Tape Inputs
ª Tape Outputs
‚ Video Monitor Output
⁄ Speaker Output Terminals
¤ Switched AC Outlet
‹ AC Power Cord
› Coax Digital Inputs
fi Optical Digital Input
fl Video 2 Inputs
‡ Video 1 Inputs
° Video 1 Outputs
· 6-Channel Direct Inputs

Harman Kardon AVR 100 Specifications

Audio Specifications

stereo mode power	50 Watts per channel, 20Hz–20kHz, < 0.08% THD, 8 ohms
five-channel surround mode power (front channels)	40 Watts per channel, < 0.08% THD, 20Hz–20kHz, 8 ohms
five-channel surround mode power (center channel)	40 Watts, < 0.08% THD, 20Hz–20kHz, 8 ohms
five-channel surround mode power (surround channels)	40 Watts per channel, < 0.08% THD, 20Hz–20kHz, 8 ohms
input sensitivity/impedance	250mV/47k ohms
signal-to-noise ratio (IHF-A)	90dB
frequency response	10Hz–100kHz @ 1W (+0dB, –3dB)
high instantaneous current capability (HCC)	±30 Amps
transient intermodulation distortion (TIM)	0.08% (20Hz – 20kHz)
rise time	16 µsec
slew rate	40V/µsec

FM Tuner Specifications

frequency range	87.5–108MHz
usable sensitivity	1.5µV/14.8dBf
signal-to-noise ratio mono/stereo	73/70dB
distortion mono/stereo	0.3/0.5%
stereo separation	40dB @ 1kHz
selectivity	±400kHz, 60dB
image rejection	40dB
IF rejection	100dB
tuner output level	500mV @ 1kHz, ±75kHz Dev

AM Tuner Specifications

frequency range	520–1710kHz
signal-to-noise ratio	35dB
usable sensitivity	800µV/M
distortion	1kHz, 50% Mod 1.5%
selectivity	±10kHz, 30dB

Video Specifications

video format	NTSC
input level/impedance	1Vp-p/75 ohms
output level/impedance	1Vp-p/75 ohms
video frequency response	10Hz–8MHz (–3dB)

General Specifications

power requirement	AC 120V/60Hz
power consumption	72W idle, 290W maximum (2 channels driven)
width	17.3 inches (440mm)
height	6.2 inches (156mm)
depth	14.7 inches (375mm)
weight	27.9 lb (12.6 kg)
