Harman Kardon AVR 100 User Manual

●
●
●
●
●
●
●
●
●
●
10 REMOTE CONTROL FUNCTIONS
Remote Control Functions
PROG.
TITLE
CDP
PS
MENU
CDR
CHCH
STOP
ENTER
12
3
45
67
8
9
0
MAIN POWER
SUBTITLE
TUNING
TEST TONE
DIGITAL INPUT
TV
V1
AM/FM
CD
TAPE
6 CH
V2
V3 DVD
VCR
INPUT/POWER ON
SLOW
CLEAR
RANDOM
MEMORY
SET
DIR
DOWN
PRESET TUNING
UP
TUNING
MASTER VOL
ON/OFF
MUTE
SURR.
SOURCE POWER
OFF
R
E
W
F
F
U
P
D
O
W
N
/
DIM/NIGHT
SLEEP
DISC SKIP
MODE
Sin
Du
ANGLE
AUDIO
CH
SPK
DELAY
VOLUME
OFF
ON
a
k
m
o
s
i
q
c
e
g
b
l
n
p
d
f
j
r
t
h
z
28
30
34
32
x
v
36
`
29
31
u
w
y
33
35
37

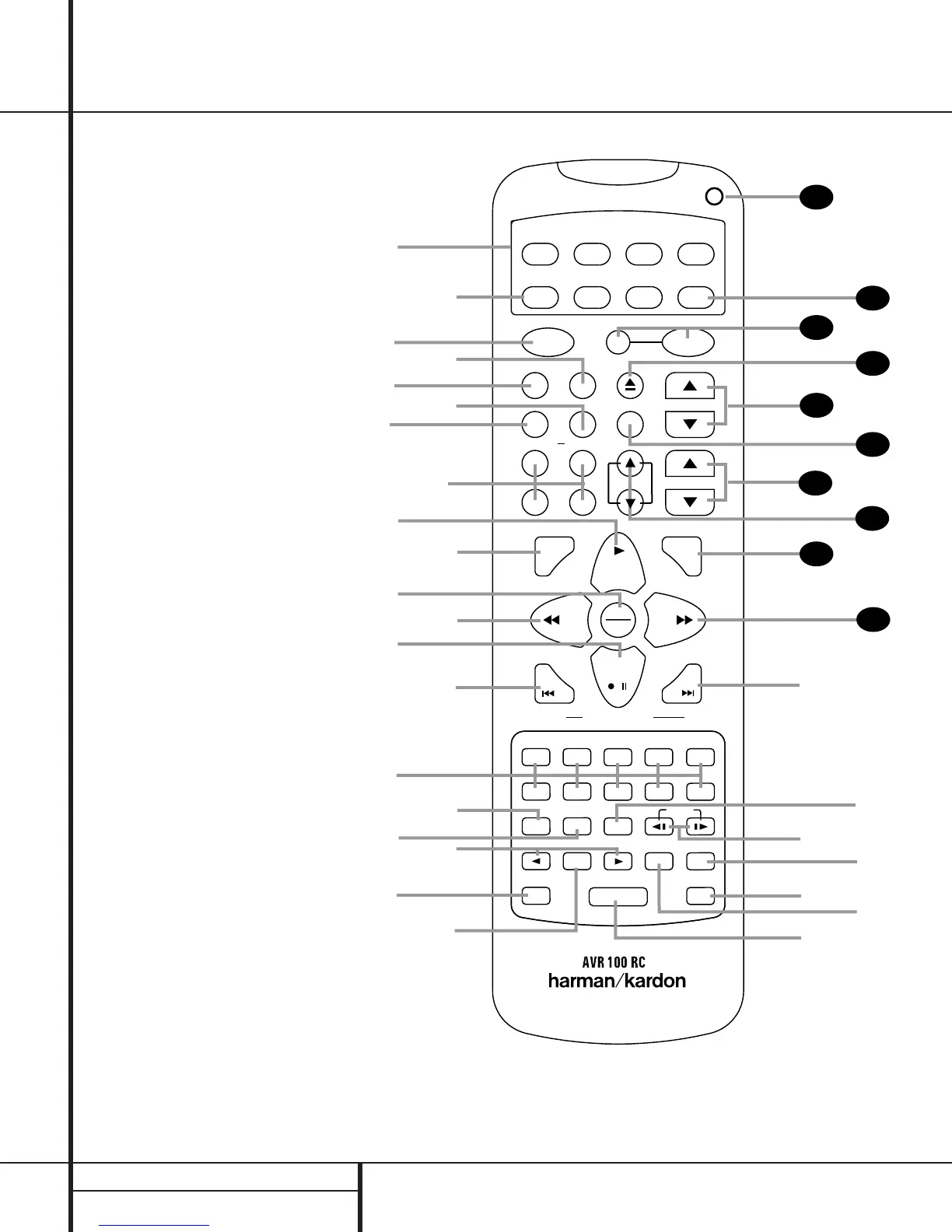

a Device Selectors
b AM/FM Tuner Select
c Main Power-Off Button
d Sleep Button
e Night Mode/Dim Switch
f FM Tuner Mode Button
g Disc-Skip Button
h DVD Function Buttons
i Play/Up Button
j Title/CDP Button
k Stop/Enter Button
l Tune Down/Rewind Button
m Pause/Down Button
n Preset Down/Channel-Down Button
o Numeric Keys
p Speaker Select Button
q Channel-Select Button
r
‹
/
›
Select Buttons
s Test Tone Button
t Set Button
u Digital Input Selector
v Clear Button
w Memory Button
x Direct/Random Play Button
y Slow-Play Buttons
z Delay Button
` Preset Up/Channel-Up Button
28
Tune Up/Fast-Forward Button
29
Menu/CDR Button
30
Device Volume Control
31
Master Volume Control
32
Mute Button
33
Surround Mode Selectors
34
Open/Close Button
35
Source Power Controls
36 6-Channel Direct Selector
37 Program/Command Indicator
NOTE: The function names shown here are each
button’s feature when used with the AVR. Most
buttons have additional functions when used
with other devices. See page 27 for a list of
these functions.

Harman Kardon AVR 100 Specifications

Audio Specifications

stereo mode power	50 Watts per channel, 20Hz–20kHz, < 0.08% THD, 8 ohms
five-channel surround mode power (front channels)	40 Watts per channel, < 0.08% THD, 20Hz–20kHz, 8 ohms
five-channel surround mode power (center channel)	40 Watts, < 0.08% THD, 20Hz–20kHz, 8 ohms
five-channel surround mode power (surround channels)	40 Watts per channel, < 0.08% THD, 20Hz–20kHz, 8 ohms
input sensitivity/impedance	250mV/47k ohms
signal-to-noise ratio (IHF-A)	90dB
frequency response	10Hz–100kHz @ 1W (+0dB, –3dB)
high instantaneous current capability (HCC)	±30 Amps
transient intermodulation distortion (TIM)	0.08% (20Hz – 20kHz)
rise time	16 µsec
slew rate	40V/µsec

FM Tuner Specifications

frequency range	87.5–108MHz
usable sensitivity	1.5µV/14.8dBf
signal-to-noise ratio mono/stereo	73/70dB
distortion mono/stereo	0.3/0.5%
stereo separation	40dB @ 1kHz
selectivity	±400kHz, 60dB
image rejection	40dB
IF rejection	100dB
tuner output level	500mV @ 1kHz, ±75kHz Dev

AM Tuner Specifications

frequency range	520–1710kHz
signal-to-noise ratio	35dB
usable sensitivity	800µV/M
distortion	1kHz, 50% Mod 1.5%
selectivity	±10kHz, 30dB

Video Specifications

video format	NTSC
input level/impedance	1Vp-p/75 ohms
output level/impedance	1Vp-p/75 ohms
video frequency response	10Hz–8MHz (–3dB)

General Specifications

power requirement	AC 120V/60Hz
power consumption	72W idle, 290W maximum (2 channels driven)
width	17.3 inches (440mm)
height	6.2 inches (156mm)
depth	14.7 inches (375mm)
weight	27.9 lb (12.6 kg)
