15
AVR 158
ENGLISH

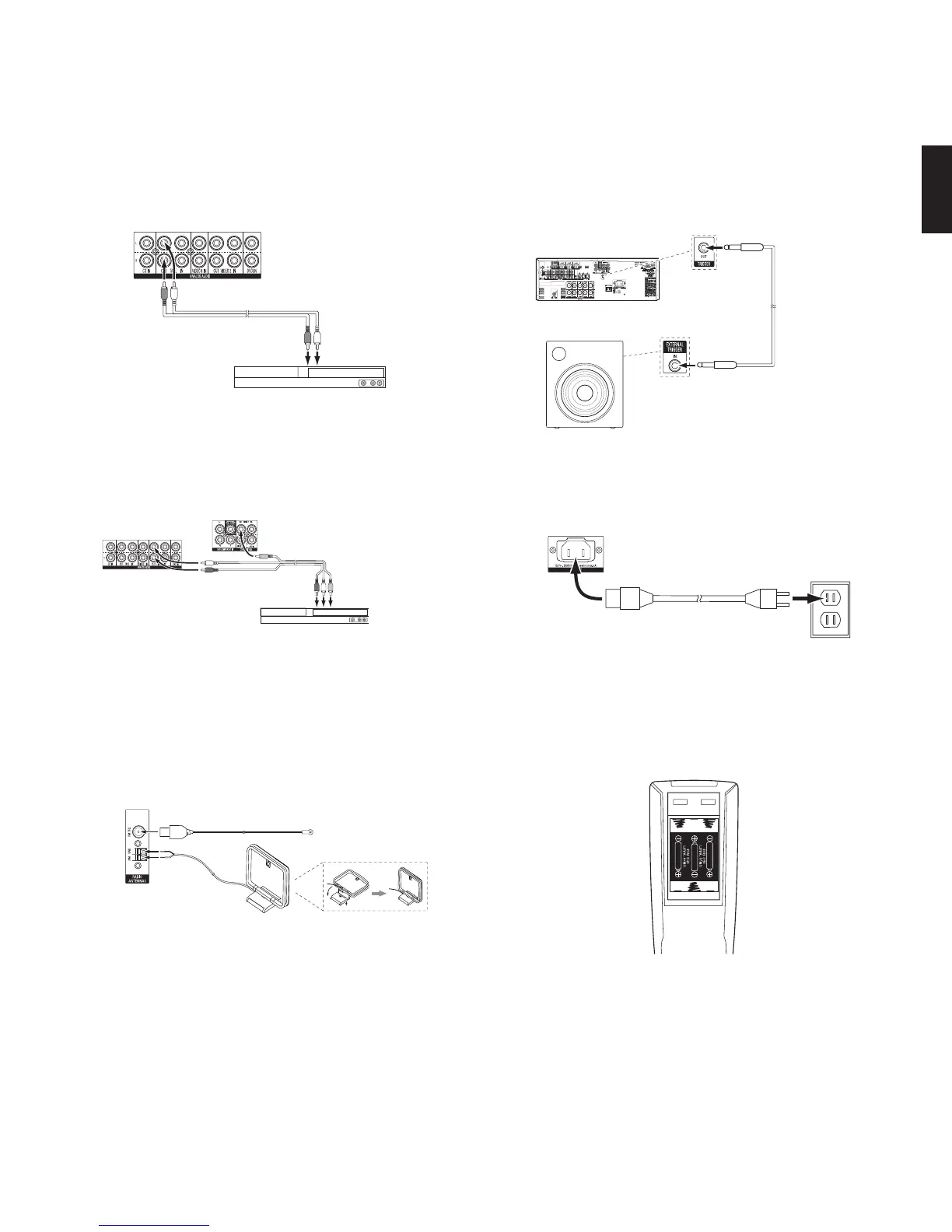

Making Connections, continued,
and Set Up the Remote Control
Audio recorders
Connect an analogue audio recorder’s inputs to the AVR’s analogue audio Tape Out
connectors. You can record any analogue audio input signal.
Stereo Audio Cable
(not supplied)
To Stereo Analogue
Record Inputs
Analogue Recording Device
AVR Analogue Audio
Recorder Connectors
Video recorders
Connect an analogue video recorder’s video input connector to the AVR’s Video 2 Out
Composite Video connector, and its audio input connectors to the AVR’s Video 2 Out
Analogue Audio connectors. You can record any composite video signal.
Analogue Audio/Video
Cable (not supplied)
To Analogue Audio/
Video Record Inputs
Analogue Video
Recording Device
AVR Analogue
Audio Connectors
AVR Analogue
Video Connectors
Connect the Radio Aerials
Connect the supplied FM aerial to the AVR’s FM 75 Ω Radio Aerial connector. For the
best reception, extend the FM aerial as far as possible.
Bend and fold the base of the supplied AM aerial as shown and connect the aerial
wires to the AVR’s AM and Gnd connectors. (You can connect either wire to either
connector.) Rotate the aerial as necessary to minimise background noise.
AVR Radio Aerial
Connectors
FM Aerial (supplied)
AM Aerial
(supplied)
Bend and fold base
Connect the 12V Trigger Output
If your system has equipment that can be controlled by a DC trigger signal, connect it to
the AVR’s 12V Trigger connector with a mono 1/8-inch (3.5mm) mini-plug interconnect
cable. The AVR will supply a 12V DC (100mA) trigger signal at this connection whenever
it is powered on.
Device with Trigger
in Connector
AVR
Mono 1/8-inch
(3.5mm)
Mini-Plug
Interconnect
(not supplied)
Connect to AC Power
Connect the AC power cord to the AVR’s AC Input connector and then to a working AC
power outlet.
AVR AC
Input Connector
AC Power
Outlet
Power Cord
(supplied)
Set Up the Remote Control
Install the Batteries in the Remote Control
Remove the remote control’s battery cover, insert the three supplied AAA batteries as
shown in the illustration, and replace the battery cover.
NOTE: Remove the protective plastic from the AVR’s front panel to keep it from reducing
the remote control’s effectiveness.
0296CSK - HK (x65Series) AVR158-230 OM [HKP1992], WORK05.indd 15 30/06/11 14:00:03
