[AK4588]
MS0287-J-03 2009/05
- 8 -
No. Pin Name I/O Function
55 AVDD -
Analog Power Supply Pin, 4.5V∼5.5V
56 AVSS -
Analog Ground Pin, 0V
57 RX0 I Receiver Channel 0 Pin (Internal biased pin. Internally biased at PVDD/2)
58 NC -
No Connect pin
No internal bonding. This pin should be connected to PVSS.
59 RX1 I Receiver Channel 1 Pin (Internal biased pin. Internally biased at PVDD/2)
60 TEST1 I
Test 1 Pin
This pin should be connected to PVSS.
61 RX2 I Receiver Channel 2 Pin (Internal biased pin. Internally biased at PVDD/2)
62 NC -
No Connect pin
No internal bonding. This pin should be connected to PVSS.
63 RX3 I Receiver Channel 3 Pin (Internal biased pin. Internally biased at PVDD/2)
64 PVSS - PLL Ground pin
65 R -
External Resistor Pin
12kΩ +/-1% resistor should be connected to PVSS externally.
66 PVDD -
PLL Power supply Pin, 4.5V∼5.5V
67 RX4 I Receiver Channel 4 Pin (Internal biased pin. Internally biased at PVDD/2)
68 TEST2 I
Test 2 Pin
This pin should be connected to PVSS.
69 RX5 I Receiver Channel 5 Pin (Internal biased pin. Internally biased at PVDD/2)
70 CAD0 I
Chip Address 0 Pin (ADC/DAC part)
71 RX6 I Receiver Channel 6 Pin (Internal biased pin. Internally biased at PVDD/2)
72 CAD1 I
Chip Address 1 Pin (ADC/DAC part)
73 RX7 I Receiver Channel 7 Pin (Internal biased pin. Internally biased at PVDD/2)
74 I2C I
Control Mode Select Pin.
“L”: 4-wire Serial, “H”: I
2
C Bus
75 DAUX2 I Auxiliary Audio Data Input Pin (DIR/DIT part)
76 VIN I V-bit Input Pin for Transmitter Output
77 MCLK I
Master Clock Input Pin
78 TX0 O Transmit Channel (Through Data) Output 0 Pin
79 TX1 O
Transmit Channel Output1 pin
When TX bit = “0”, Transmit Channel (Through Data) Output 1 Pin.
When TX bit = “1”, Transmit Channel (DAUX2 Data) Output Pin (default).
80 INT0 O Interrupt 0 Pin
Note: 内部バイアスピンを除くすべてのデジタル入力ピンはフローティングにしないで下さい。

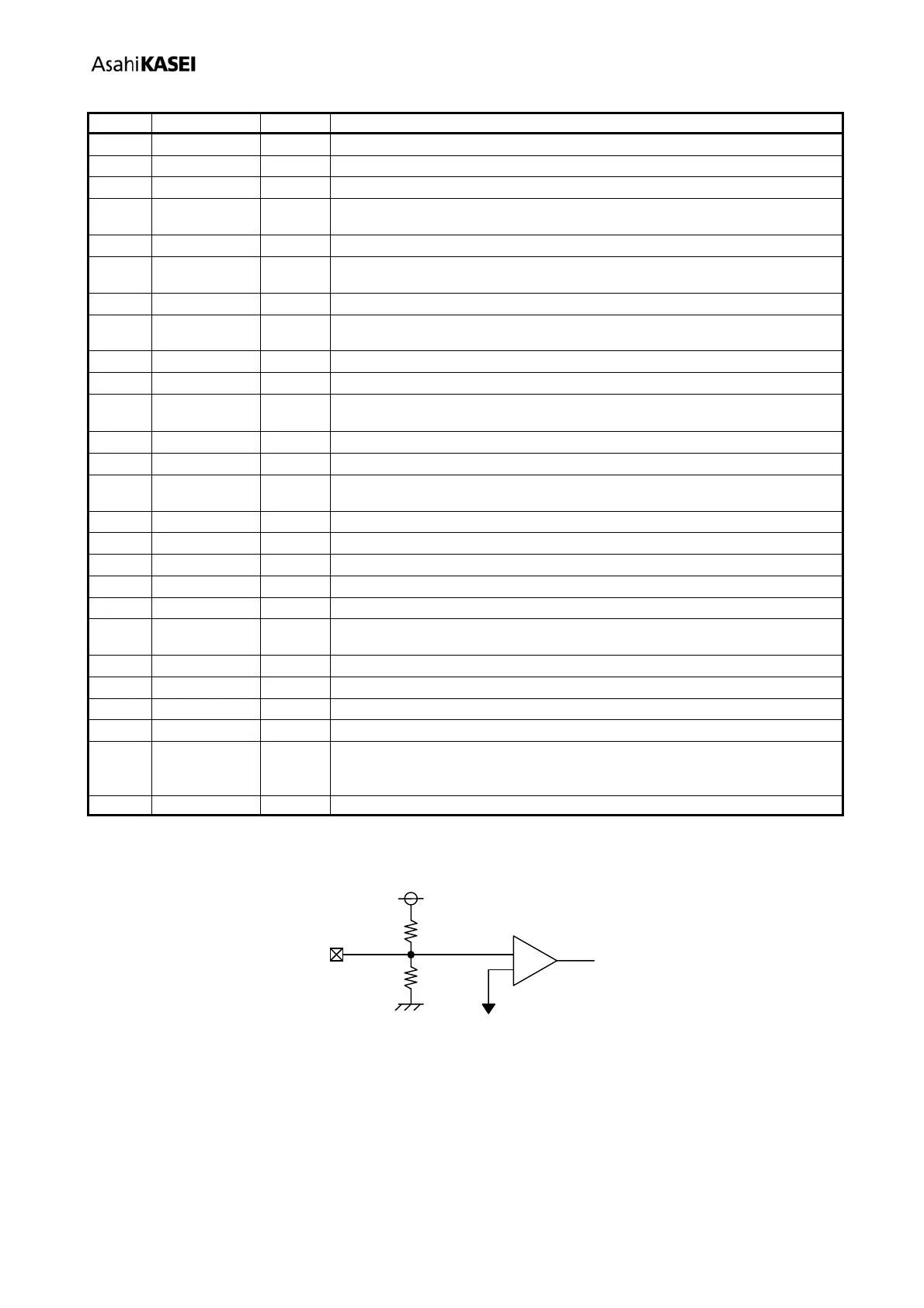

VCOM
PVDD
PVSS
RX pin
20k(typ)
20k(typ)
Internal biased pin Circuit
To Next Page
