FRONT-PANEL CONTROLS

1 Standby/On Switch

2 Surround Mode Group Selector

3 Surround Mode Selector

4 Tuning Selector

5 Tuner Band Selector

6 Preset Station Selector

7 Input Source Selector

8 Tuning Mode Selector

9 Front-Panel Door

) Volume Control

! Input Indicators

@ Speaker/Channel Input Indicators

# Upper Display Line

$ Lower Display Line

% Surround Mode Indicators

^ Remote Sensor Window

FRONT-PANEL CONTROLS

FRONT-PANEL CONTROLS 55

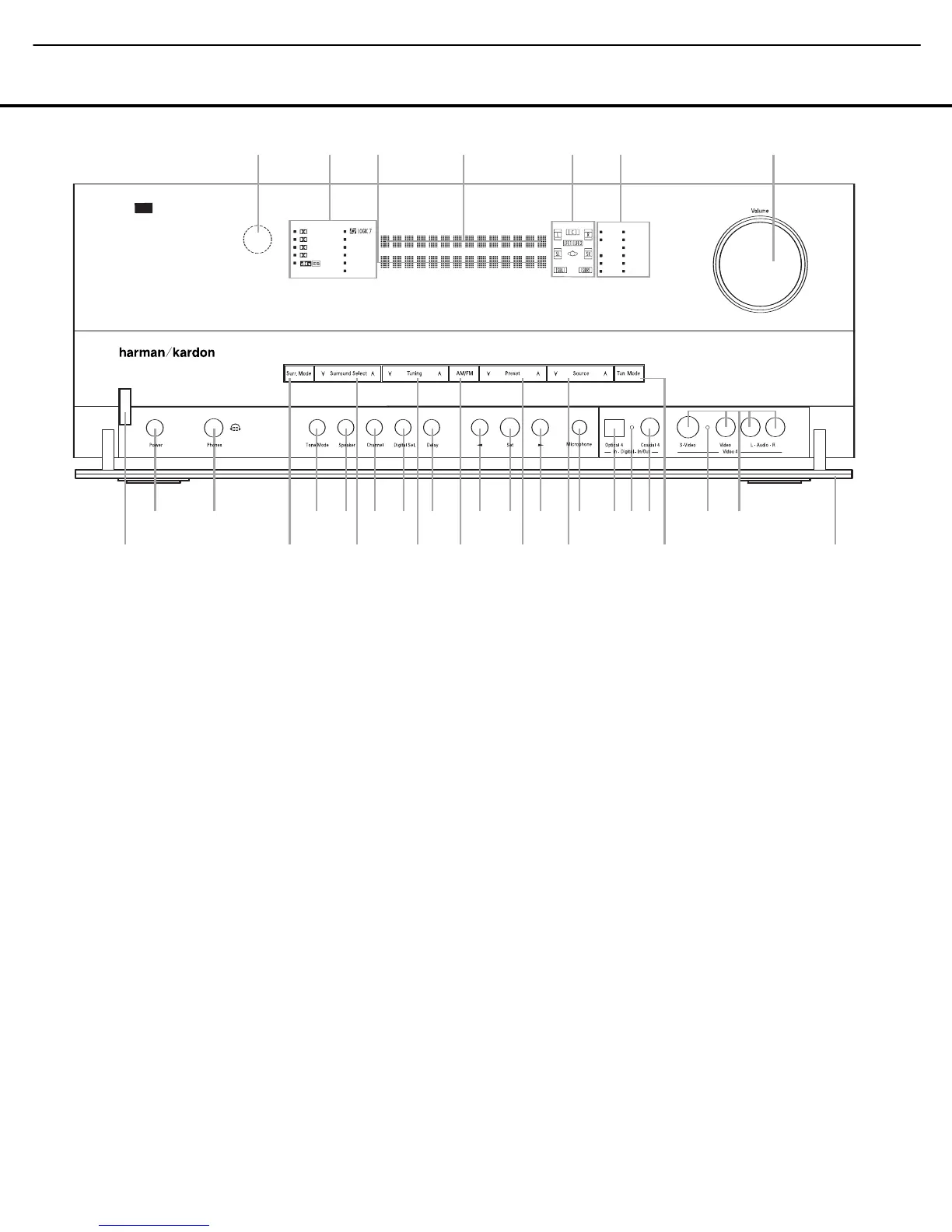

The following controls and indicators are available on the AVR 745’s front panel:

The following controls and jacks are located behind the front-panel door. To open the door, place the edge of a finger on the left or right edge of the panel and gently swing the

door down toward you.

A Main Power Switch

B Headphone Jack

C Tone Mode Button

D Speaker Selector Button

E Channel Adjust Selector

F Digital Input Selector

G Delay Adjust Selector

H‹/› Buttons

I Set Button

J EzSet/EQII Microphone Jack

K Optical 4 Digital Input

L Input/Output Status Indicators

M Coaxial 4 Digital Jack

N Video 4 Input/Output Jacks

1 Standby/On Switch: When the Main Power

Switch

is “ON,” press this button to turn on the

AVR 745; press it again to turn the unit off. Note that

the illumination surrounding the switch will turn blue

when the unit is on, or in the Multiroom mode.

2 Surround Mode Group Selector: Press this but-

ton to select the top-level group of surround modes.

Each press of the button will select one of the sur-

round mode categories. Once the button is pressed so

that the name of the desired surround mode category

appears in the on-screen display and in the

Lower

Display Line

$, press the Surround Mode

Selector

3 to cycle through the individual modes

available. For example, press this button to select Dolby

modes, and then press the

Surround Mode Selector

3 to choose from the various mode options.

3 Surround Mode Selector: Press this button

to select from among the available surround mode

options for the surround mode category selected.

The specific modes will vary based on the number of

speakers available, the surround mode category and

whether the input source is digital or analog. For exam-

ple, press the

Surround Mode Group Selector 2

to select a category such as Dolby or Logic 7, and

then press this button to see the specific mode choices

that are available. For more information on mode

selection, see pages 40 – 42.

NOTE: To make it easier to follow the instructions that refer to this illustration, a larger copy may be downloaded from the Product Support section for this product at
