8 REAR-PANEL CONNECTIONS
REAR-PANEL CONNECTIONS
0 Preamp Outputs
1 Main Subwoofer Output
2 Tape Outputs
3 A-BUS Connector
4 Tape Inputs
5 Surround Speaker Outputs
6 CD Audio Input
7 Front Speaker Outputs
8 Multiroom Audio Outputs
9 Subwoofer 2 Output
A Fan Vents
B Full Carrier IR Output
C IR Output
D Center Channel Speaker Outputs
E Surround Back/Multiroom Speaker Outputs
F IR Input
G Switched AC Accessory Outlet
H Trigger 1 Output
I Trigger 2 Output
J AC Power Cord Socket
K RS-232 Port
L Multiroom Video Output
M HDMI Output
N HDMI Inputs
O Component Video Monitor Outputs
P Multiroom IR Input
Q Component Video Inputs
R Video Monitor Outputs
S DVD Video Inputs
T Video 1 Video Inputs
U Video 1 Video Outputs
V Video 2 Video Inputs
W Video 3 Video Inputs
X Digital Media Player (DMP) Input
Y XM-Ready Module Input
Z USB Connector
a Optical Digital Audio Output
b Coaxial Digital Audio Output
c DVD Audio Inputs
d Coaxial Digital Audio Inputs
e Optical Digital Audio Inputs
f 8-Channel Direct Inputs
g Video 1 Audio Inputs
h Video 3 Audio Inputs
i Video 2 Audio Inputs
j Video 1 Audio Outputs
k FM Antenna Jack
l AM Antenna Connections
NOTE: To assist in making the correct connections for
multichannel input, output and speaker connections,
all connection jacks and terminals are color-coded
as follows:
Front Left: White
Front Right: Red
Center: Green
Surround Left: Blue
Surround Right: Gray
Surround Back Left: Brown
Surround Back Right: Tan
Subwoofer: Purple
Coaxial Digital Audio: Orange
Composite Video: Yellow
Component Video “Y”: Green
Component Video “Pr”: Red
Component Video “Pb”: Blue
Optical Digital In: Black
Optical Digital Out: Gray
REAR-PANEL CONNECTIONS
8 REAR-PANEL CONNECTIONS

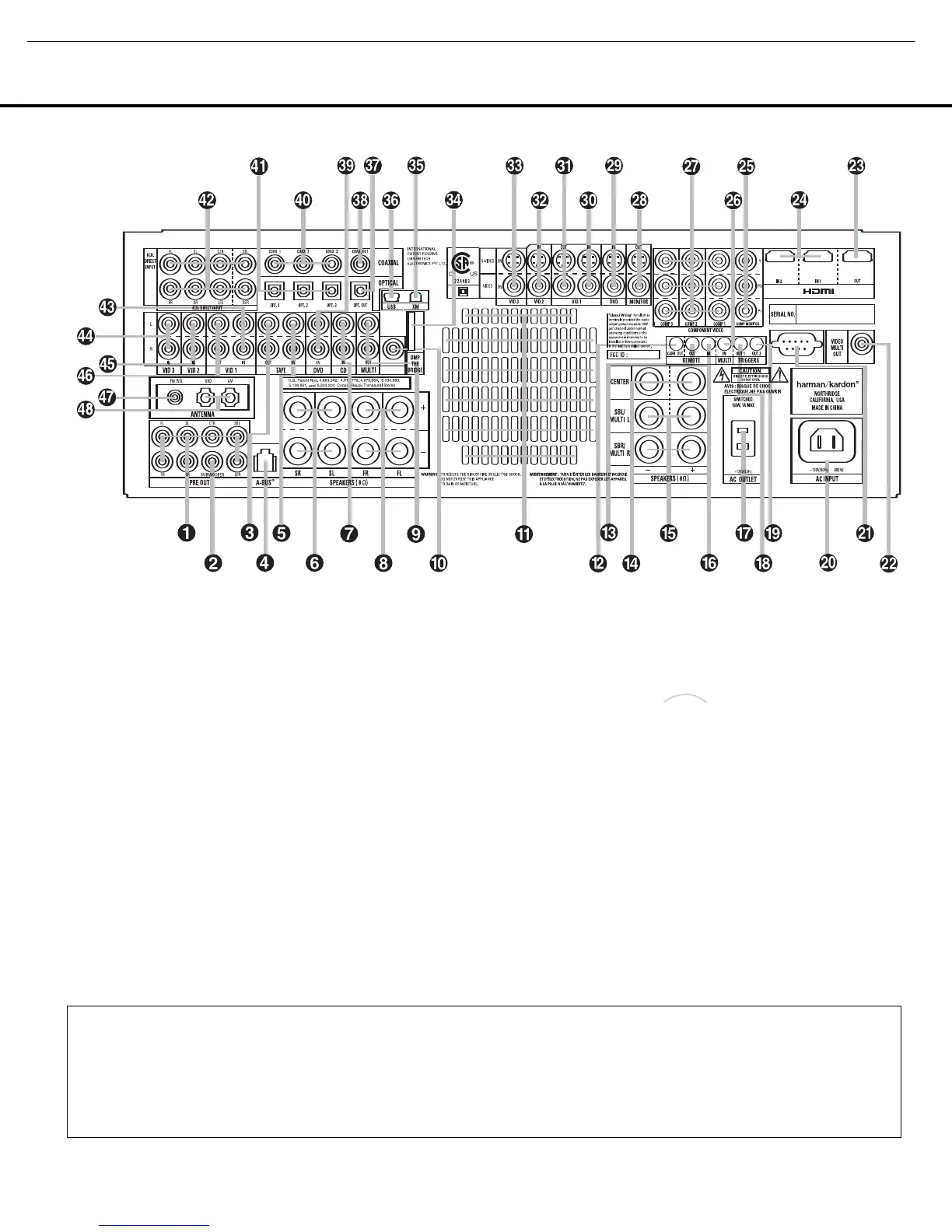

NOTE: To make it easier to follow the instructions that refer to this illustration, a larger copy may be downloaded from the Product Support section for this product at
www.harmankardon.com.
