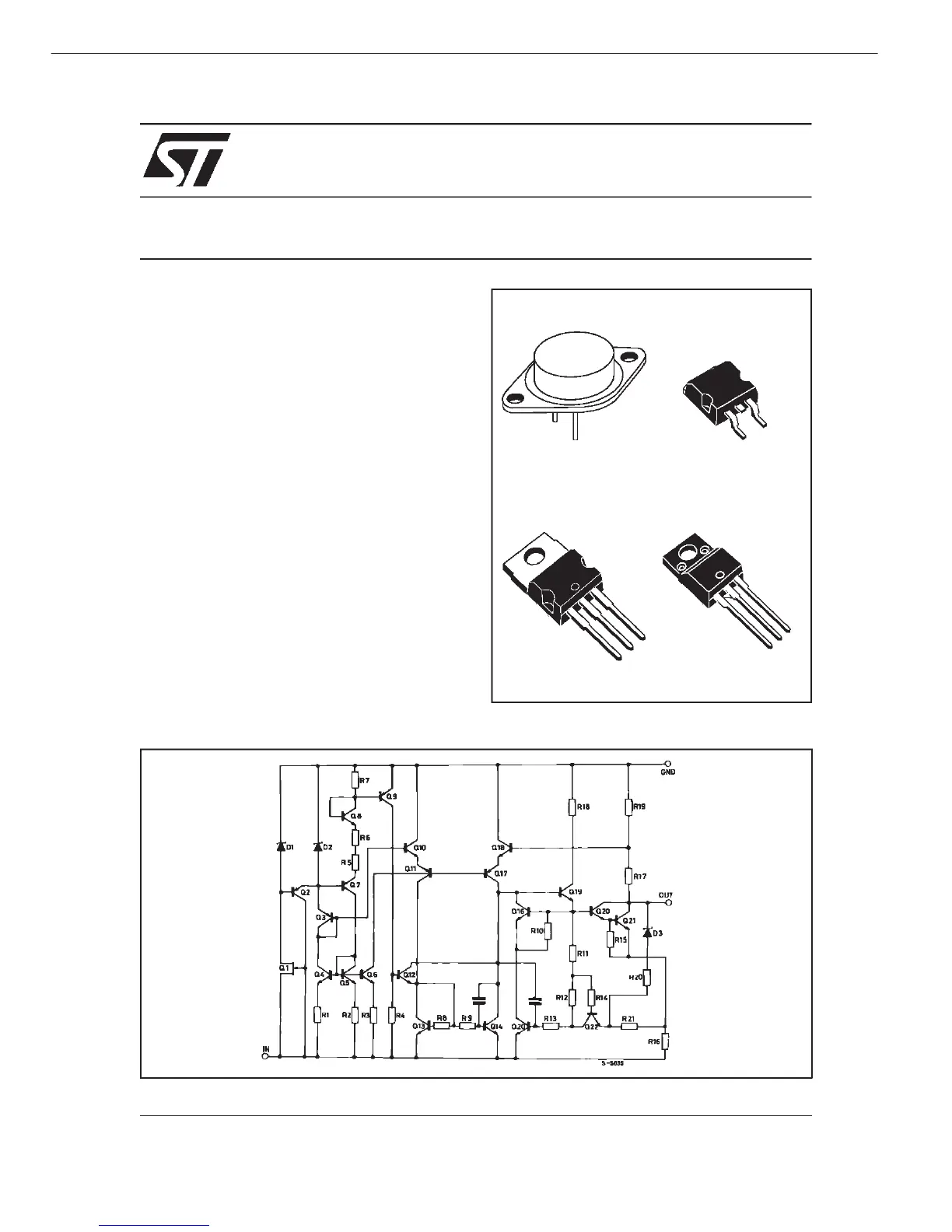

L7900

SERIES

NEGATIVE VOLTAGE REGULATORS



November 1999

■ OUTPUT CURRENT UP TO 1.5 A

■

OUTPUT VOLTAGESOF -5; -5.2; -6; -8; -9;

-12;-15; -18; -20; -22;-24V

■

THERMAL OVERLOADPROTECTION

■ SHORT CIRCUIT PROTECTION

■ OUTPUT TRANSITION SOA PROTECTION

DESCRIPTION

The L7900 series of three-terminal negative

regulators is available in TO-220, ISOWATT220

TO-3 and D

PAK packages and several fixed

output voltages, making it useful in a wide range

of applications.Theseregulators can provide local

on-card regulation, eliminating the distribution

problems associated with single point regulation;

furthermore, having the same voltage option as

the L7800 positive standard series, they are

particularly suited for split power supplies. In

addition, the -5.2V is also available for ECL

system. If adequate heat sinking is provided,

they can deliver over 1.5A output current.

Although designed primarily as fixed voltage

regulators, these devices can be used with

external components to obtain adjustable

voltagesand currents.

TO-3

TO-220 ISOWATT220

PAK

SCHEMATIC DIAGRAM

1/13
