Harman Kardon AVR245 Service Manual

www.fairchildsemi.com
Features
• Output Current up to 1A
• Output Voltages of 5, 6, 8, 9, 10, 12, 15, 18, 24V
• Thermal Overload Protection
• Short Circuit Protection
• Output Transistor Safe Operating Area Protection
Description
The MC78XX/LM78XX/MC78XXA series of three
terminal positive regulators are available in the
TO-220/D-PAK package and with several fixed output
voltages, making them useful in a wide range of
applications. Each type employs internal current limiting,
thermal shut down and safe operating area protection,
making it essentially indestructible. If adequate heat sinking
is provided, they can deliver over 1A output current.
Although designed primarily as fixed voltage regulators,
these devices can be used with external components to
obtain adjustable voltages and currents.
TO-220
D-PAK
1. Input 2. GND 3. Output
1
1

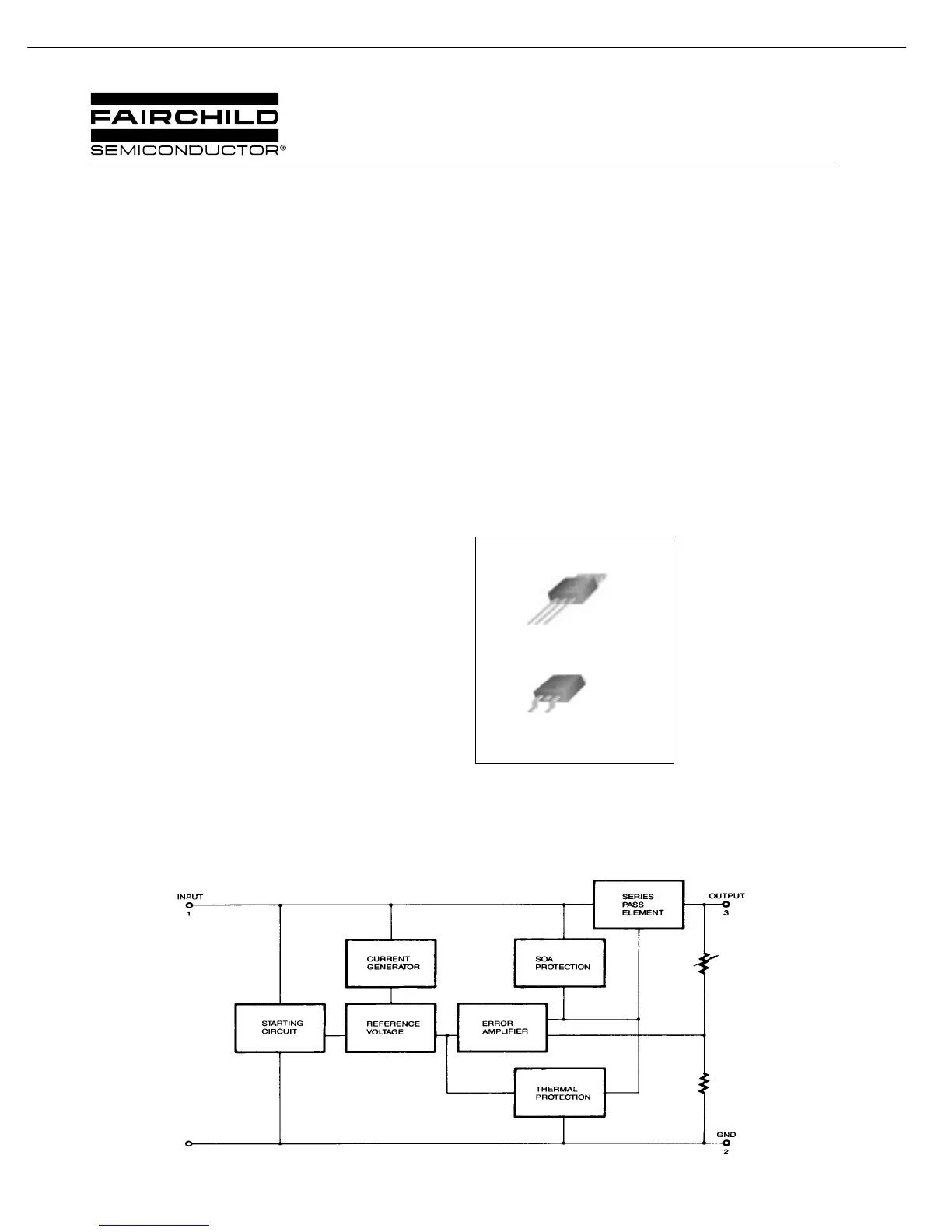

Internal Block Digram
MC78XX/LM78XX/MC78XXA
3-Terminal 1A Positive Voltage Regulator
201
AVR245 harman/kardon

Harman Kardon AVR245 Specifications

General

Number of Channels	7.1
HDMI Inputs	2
HDMI Outputs	1
Dolby Digital	Yes
DTS	Yes
Weight	12.7 kg
Type	AV Receiver
Input Sensitivity	200mV
Tone control	Bass, Treble
Headphone output	Yes
Decoder	Dolby Digital, DTS
DSP	Yes
Tuner type	AM/FM
Number of preset stations	30
Remote control	Yes
Width	440 mm
Height	165 mm
Depth	382 mm
Total Harmonic Distortion	0.07%
Dimensions	440 x 165 x 382 mm
Power Output	50 watts per channel
Input Impedance	47kohm
Digital inputs	Optical, Coaxial
Digital outputs	1 Optical
Frequency Response	10Hz - 100kHz
Video Inputs	Composite, S-Video, Component
Video Outputs	Composite, S-Video, Component
Audio Outputs	7.1 channel
Audio Inputs	Analog
