10.1 Main window
After the DSR800 receiver is switched on, the main window is displayed.
The main window displays all parameters required for operation:
• Name
• Current frequency
• Current frequency group
• Current channel
• Audio level
• Active antenna
• Remaining operating time of the transmitter battery
With critical operating conditions (low reception level, battery almost empty,
audio clipping), a warning message appears.
10.2 Battery indicator
The battery indicator on transmitter (C) and receiver (C) allow the remaining
capacity of the transmitter battery to be checked.
Each segment corresponds to approx. 1 hour remaining playback time. If no
battery voltage is measured or the information is invalid, there is no indicator
on the display. Around 1 hour before the battery is empty, the warning mes‑
sage "LOW BATT" and the light ring on the SELECT wheel turns red.
10.2.1 Audio level indicator (E)
The audio level indicator (E) displays the audio input level of the receiver.
To modify the output level of the receiver to the connected mixing console,
the output level can be adjusted in the GAIN submenu in the AUDIO menu.

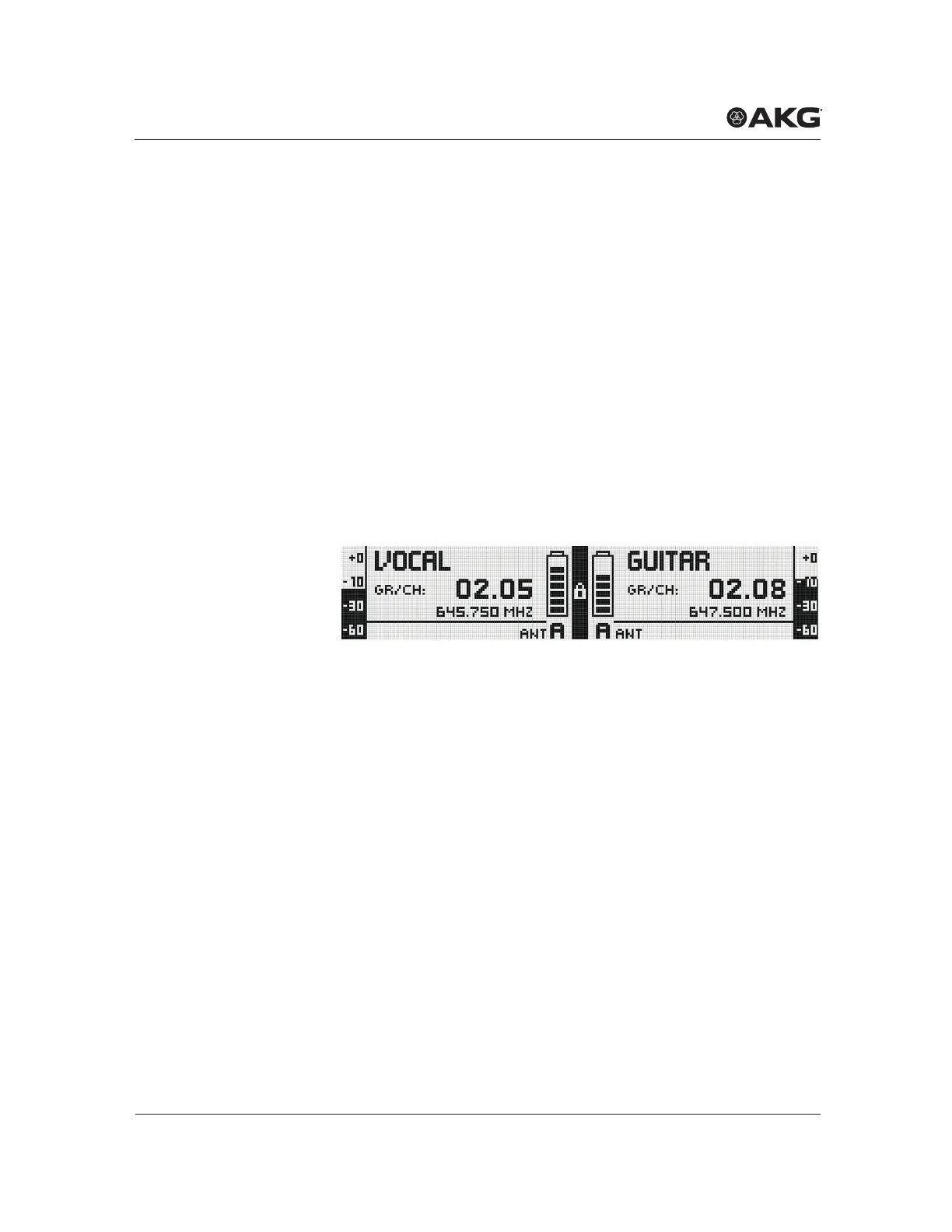

Main window
