Audio Switch Mode
1
2
3
4

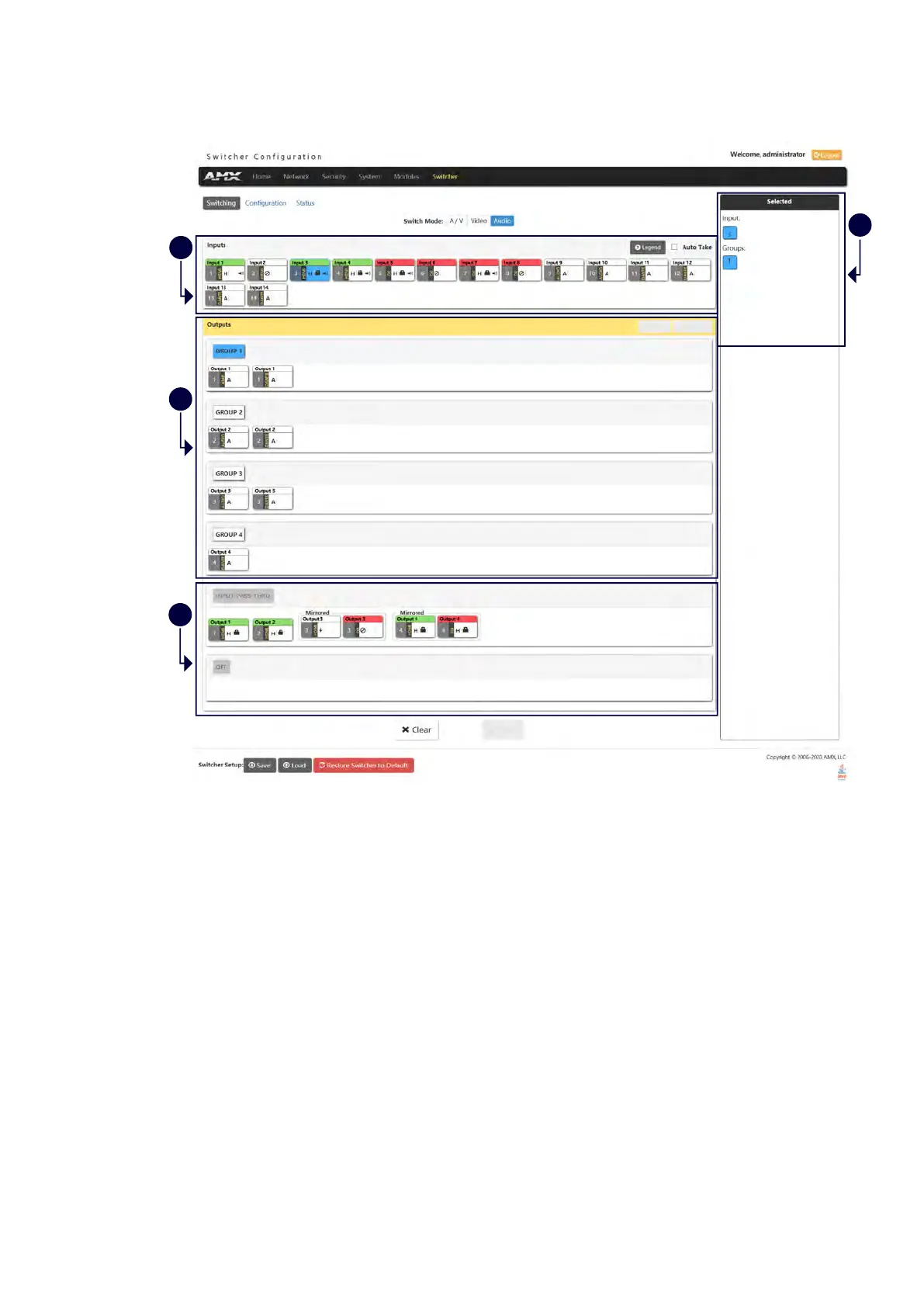

1- Inputs: This area enables you to select an Audio input to be switched to the selected Audio output.
NOTE: The Audio Switch Mode includes 4 HDMI audio inputs, 4 DXLINK audio inputs, 2 analog audio inputs
and 4 Dante audio inputs.
2- Groups: Select the corresponding option button to select one audio output group. The Audio outputs in
one group will output one selected audio source.
NOTE: The switcher includes 4 HDMI audio outputs, 2 DXLINK Outputs (mirrored with HDMI audio output 3
and 4 separately), 2 Analog Audio outputs, 2 AMP Audio outputs, and 4 Dante audio outputs, all these
audio outputs can be grouped in Audio Configurations page or through API Commands.
3- INPUT PASS THRU: This area enables you to select an audio output.
NOTE: The Audio switch mode includes 4 HDMI audio outputs and 2 DXLINK audio outputs for selecting.
The 2 DXLINK audio outputs are mirrored with HDMI audio output 3 and 4 separately.
4- Selected: Shows the current selection.
