45
8- General (Scaling/Resolution/Aspect Ratio): Click Auto to have the unit automatically set the video
resolution for the selected output display based on the EDID information received from the connected
display device. Click Manual to manually override the video resolution for the output display. After choosing
Manual, select a resolution and an aspect ratio from the corresponding menus. Select Bypass to disable
scaling and send unscaled video from the selected input to the display.
Save EDID: Click the button to save the current EDID settings to local PC.
9- Logo Setup: The Logo Setup area enables you to load up to three PNG image files for the display on
each video output port separately. Click each Select Logo File button to locate and upload an image file to
the unit's local memory, then click the Save All Logos button to load the image files into memory. There is
200KB of memory available for storing the three image files on each video output.
NOTE:
Large images can cause a slowdown in performance. AMX recommends using an image no greater
than 1280x720.
10- On-Screen Display: This area allows you to activate the on-screen display. When enabled, the input
name and resolution displays in a small box in a corner of the screen whenever you select a new input
source. From the available menus in the same area, you can select the color scheme and location of the
OSD.
11- Picture Settings: Use the sliders to set the brightness and contrast for the selected video output.

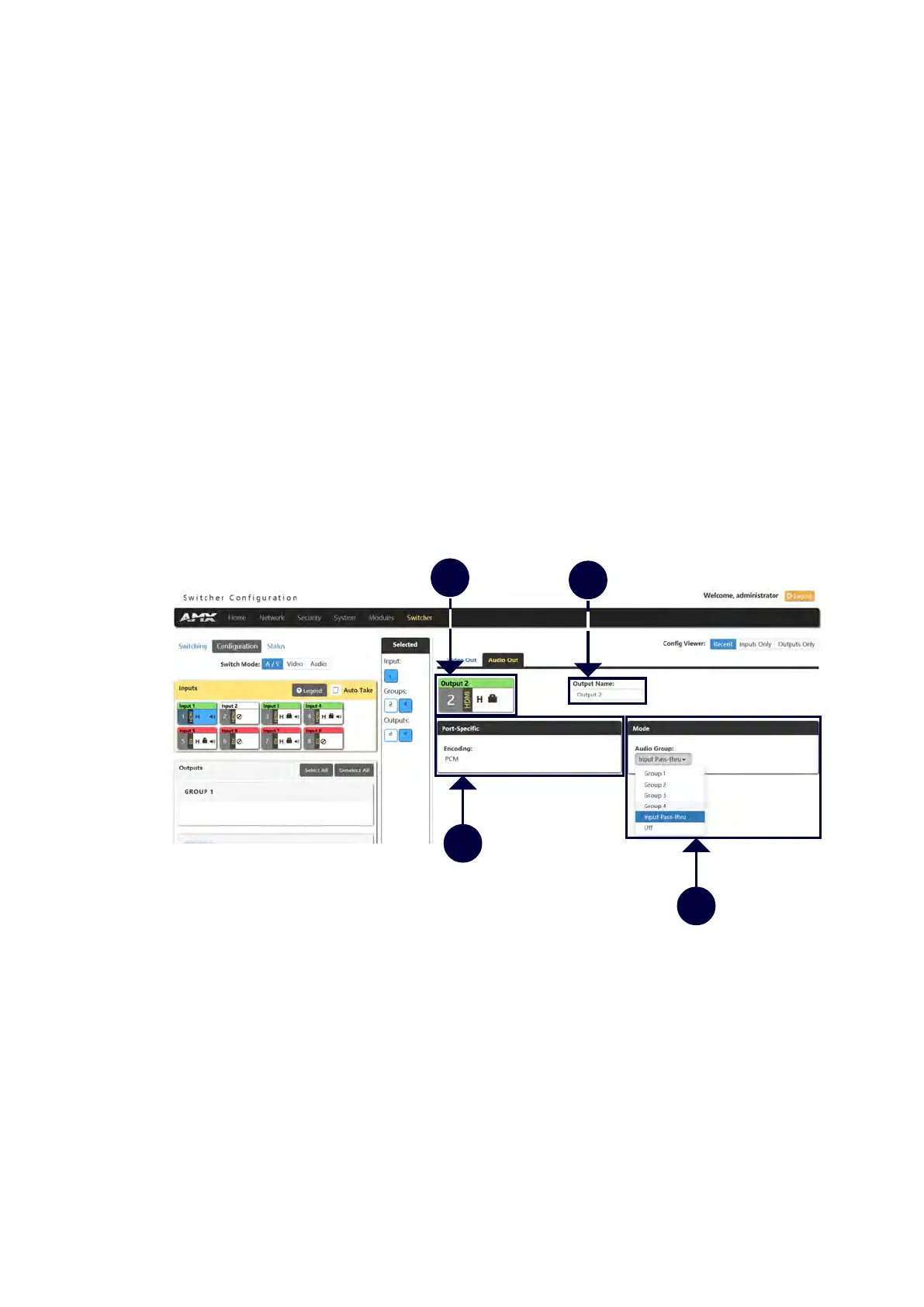

Audio Out Settings
1- Output: Shows the current selected Input port to set.
2- Output Name: Change a name for the selected Output.
3- Port-Specific (Encoding): Shows Audio Encoding format information.
4- Mode (Audio Group): Click from the drop-down menu to set the selected audio output to one group or
for input pass-through. When set it to off, the selected port will not output audio.
To Next Page
