Harmar Mobility Pinnacle Series - Folding Rail Installation Procedures

72618 P/N: 630-00100 Rev E
SL300 • Pinnacle Stair Lift Installation Manual
19
Pinnacle SL300
FOLDING RAIL INSTALLATION

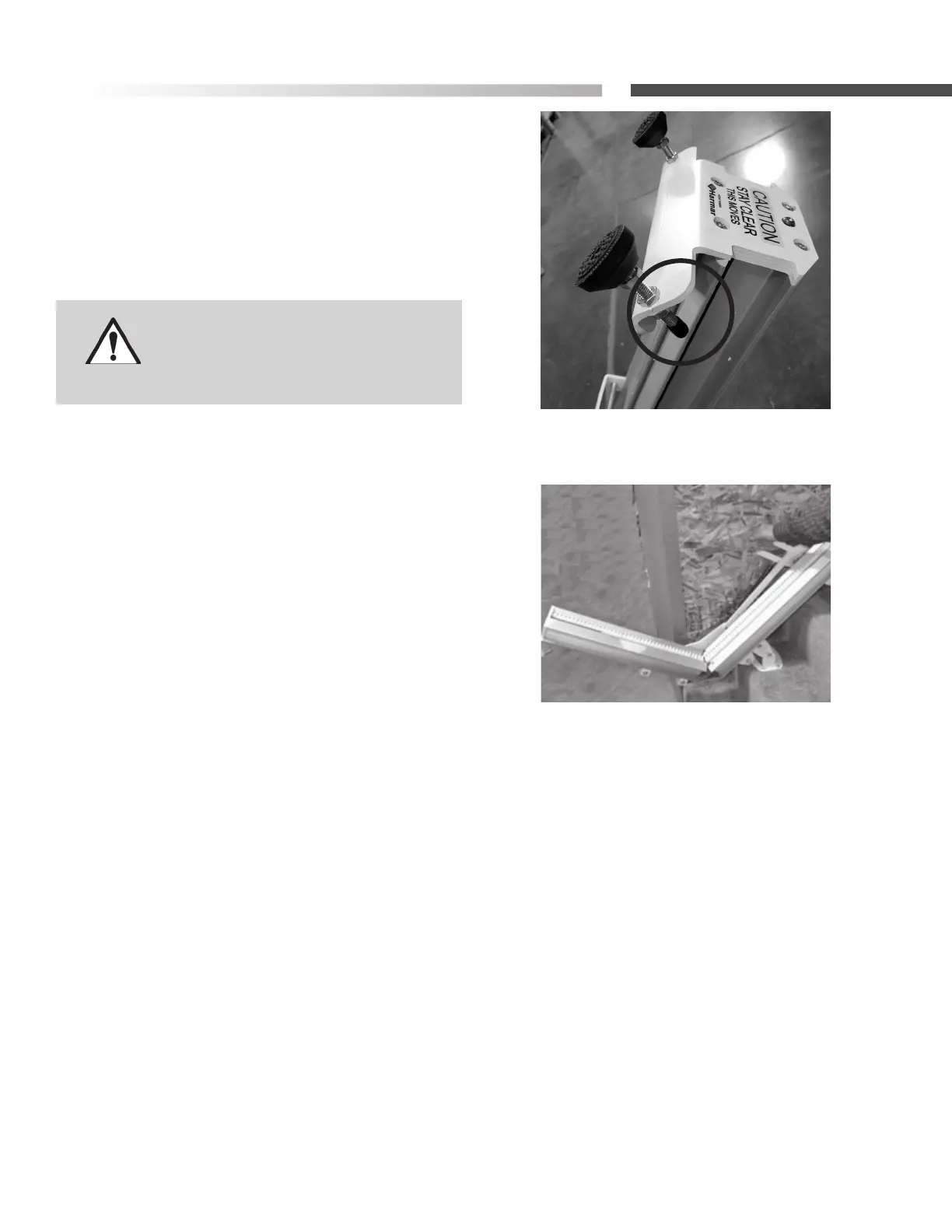

12. Reinstall the two plastic caps on the feet to
cover the threads [Figure 19-1]
13. Carefully move the fork with your hand to make
Figure 19-2
Figure 19-1
sure it operates smoothly. Allow it to go all the way to
the oor. Conrm that both feet sit level on the oor
and the hinge-joint is fully straight. [Figure 19-2]
14. Follow the normal procedure for installing rail
brackets and tightening them. This procedure is
detailed on pages 5 & 6 (steps 7 & 8).
15. Test ride the unit a couple of times to verify that
the folding rail is operating properly.
WARNING
Be careful not to pinch your ngers
when moving the fork.
