Harmar Mobility Pinnacle Series - Chassis Installation

72618 P/N: 630-00100 Rev E
SL300 • Pinnacle Stair Lift Installation Manual
7
Pinnacle SL300
INSTALLATION PROCEDURES
C. CHASSIS INSTALLATION

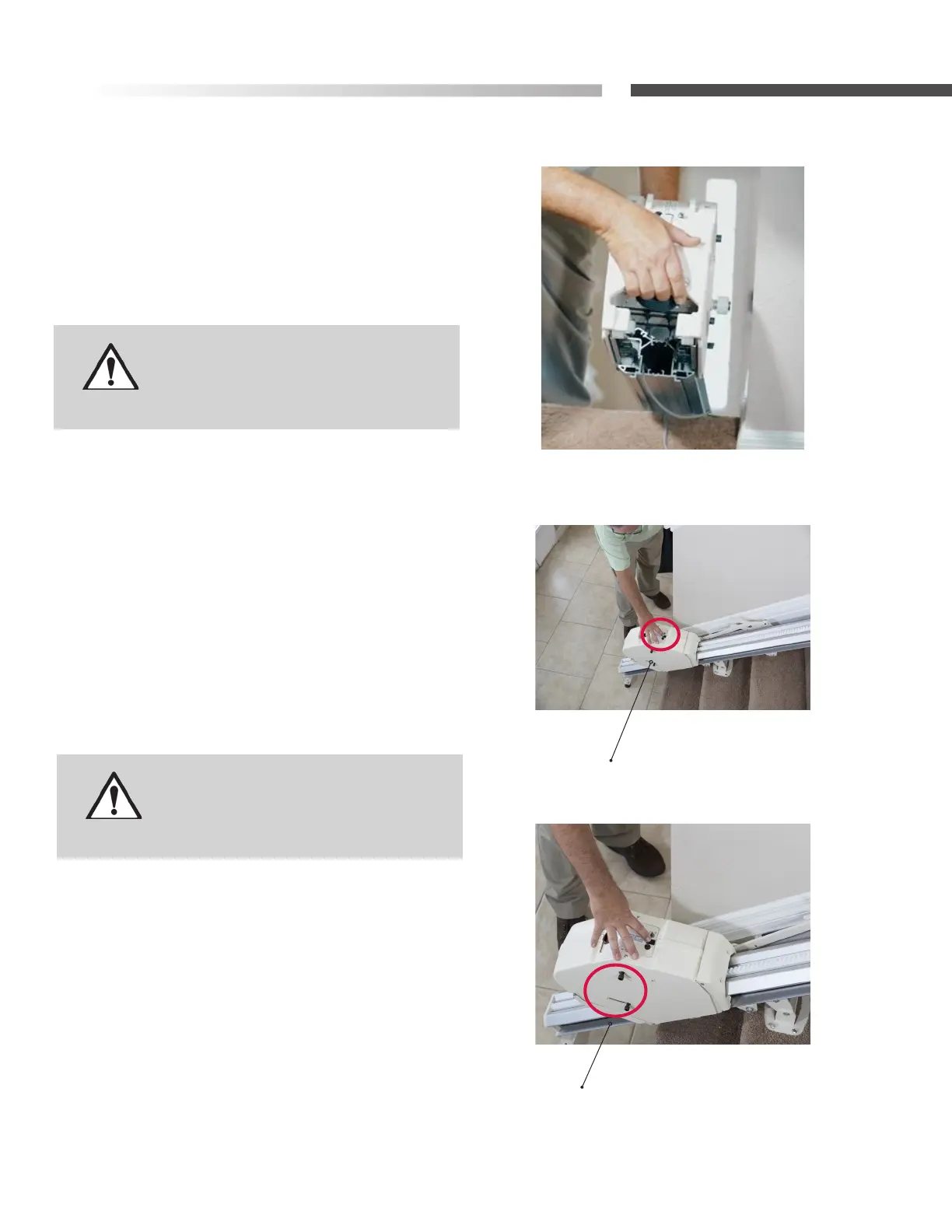

1. Remove chassis from box. Lift the chassis with
the manual override hole (on bottom) facing the
downhill side of the stairs and gently slide the
chassis onto the rail until it makes contact with the
plastic rack. DO NOT LET THE CHASSIS FREE FALL
DOWN THE RAIL. [Figure 7-1]
2. Use the installation switch (the black switch on
the top of the chassis) to move the chassis at least
24" down the rail, pushing gently on the chassis to
ensure the chassis does not pull any rack to the top.
[Figure 7-2]
3. Loosen, but do not remove, the four (4) seat-
leveling bolts two (2) on each side of the chassis)
and then align them vertically using a level. Firmly
tighten the two (2) bolts on the side of the chassis
facing the wall. [Figure 7-3]
WARNING
Be careful not to trap ngers
between the rail and the chassis.
WARNING
Do not ride on the chassis or lift until
the install is complete.
Installaon Switch
Figure 7-2
2 bolts on either side of chassis
Figure 7-3
Figure 7-1
