SL600 PINNACLE STAIRLIFT: Owner’s Manual
22MAR24 | 76016 E
11
OPERATION
PINNACLE STAIRLIFT: SECTION 3
RETURNING THE SEAT TO TRAVEL POSITION
After dismount, users can either return the seat to
the regular position for someone else to use or keep
it rotated for easier re-entry. To bring the seat back
to its travel position, press the swivel lever closest
to the wall, release the latch, and gently push the
seat to rotate it.
NOTE: If the seat is not completely locked in the travel
position, the seat swivel interlock alarm will sound. Users
may need to ensure the swivel levers are fully engaged
in the locked position by wiggling in the seat or re-
depressing the levers and ensuring the latch is engaged.
POWER SWIVEL (OPTIONAL)
For units equipped with optional Power Swivel,
this function is integrated into the primary armrest
control.
ROTATION AT TOP OF STAIRCASE
When the unit reaches the top of the staircase and
the final stop, it will hesitate, and then start to
rotate as long as the hand control is activated by the
user.

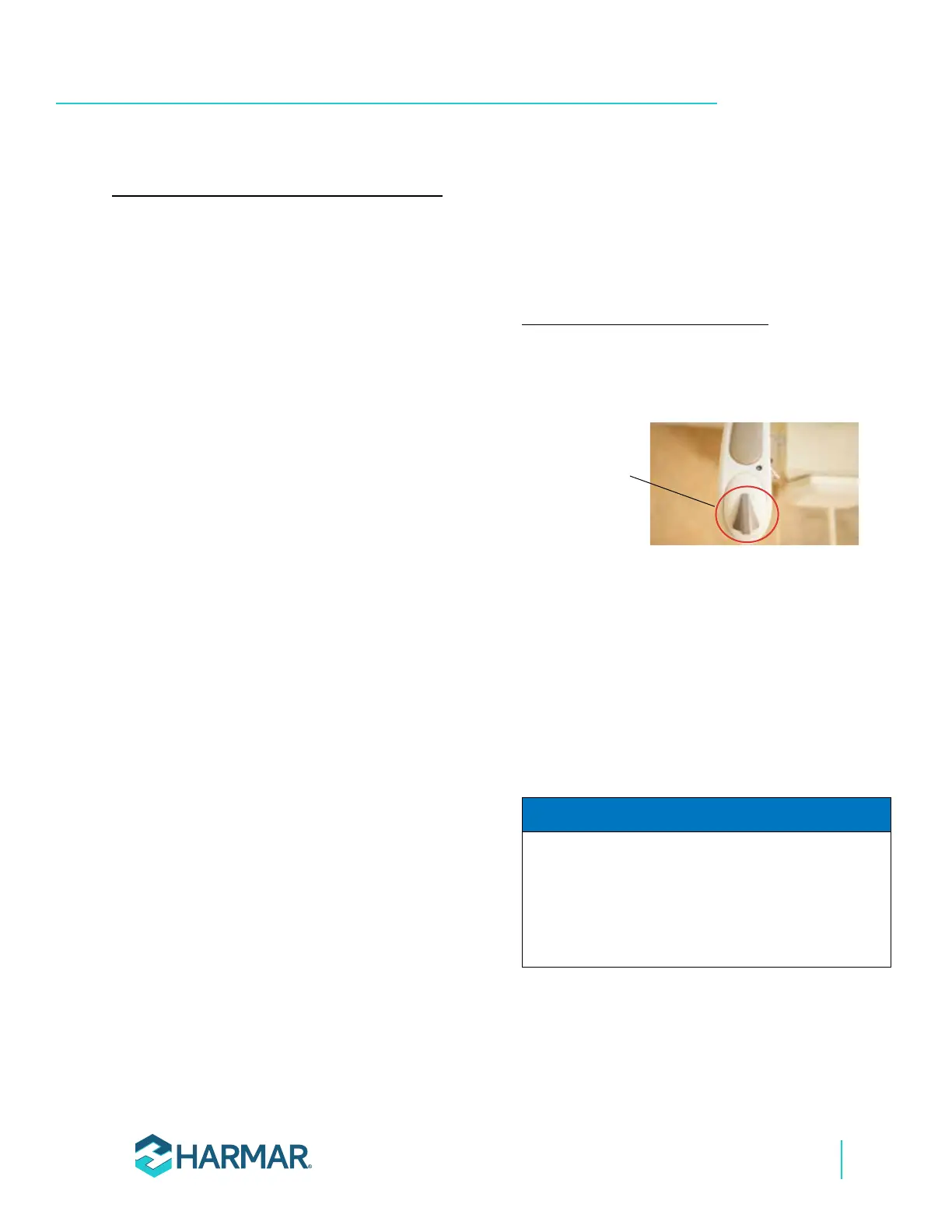

See Figure 3-10.
Up/Down
control
switch
Figure 3-10
1. Lift your feet slightly as the footrest does
not rotate.
2. The seat swivel alarm will sound during
rotation.
3. Once the unit comes to a complete stop, or
at any intermediate position, users can
remove their hand from the primary control
to stop. Best practice is to continue rotation
until the final rotation stop is reached.
In the event that the user continues to control the unit
after it has come to a stop for more than 5 seconds,
the resettable fuse will trip to safeguard the rotation
motor. To ensure proper functioning, users must
wait for approximately 1 minute for the fuse to reset
before attempting to re-rotate the seat.
NOTICE
