Harmar Mobility SL600 - Chassis Installation

SL600 PINNACLE STAIR LIFT: Install Manual
30SEP2020 | 76015 REV F
11
INSTALLATION
PINNACLE STAIR LIFT: SECTION 4
Be careful not to trap ngers between the rail and
the chassis.
WARNING
!

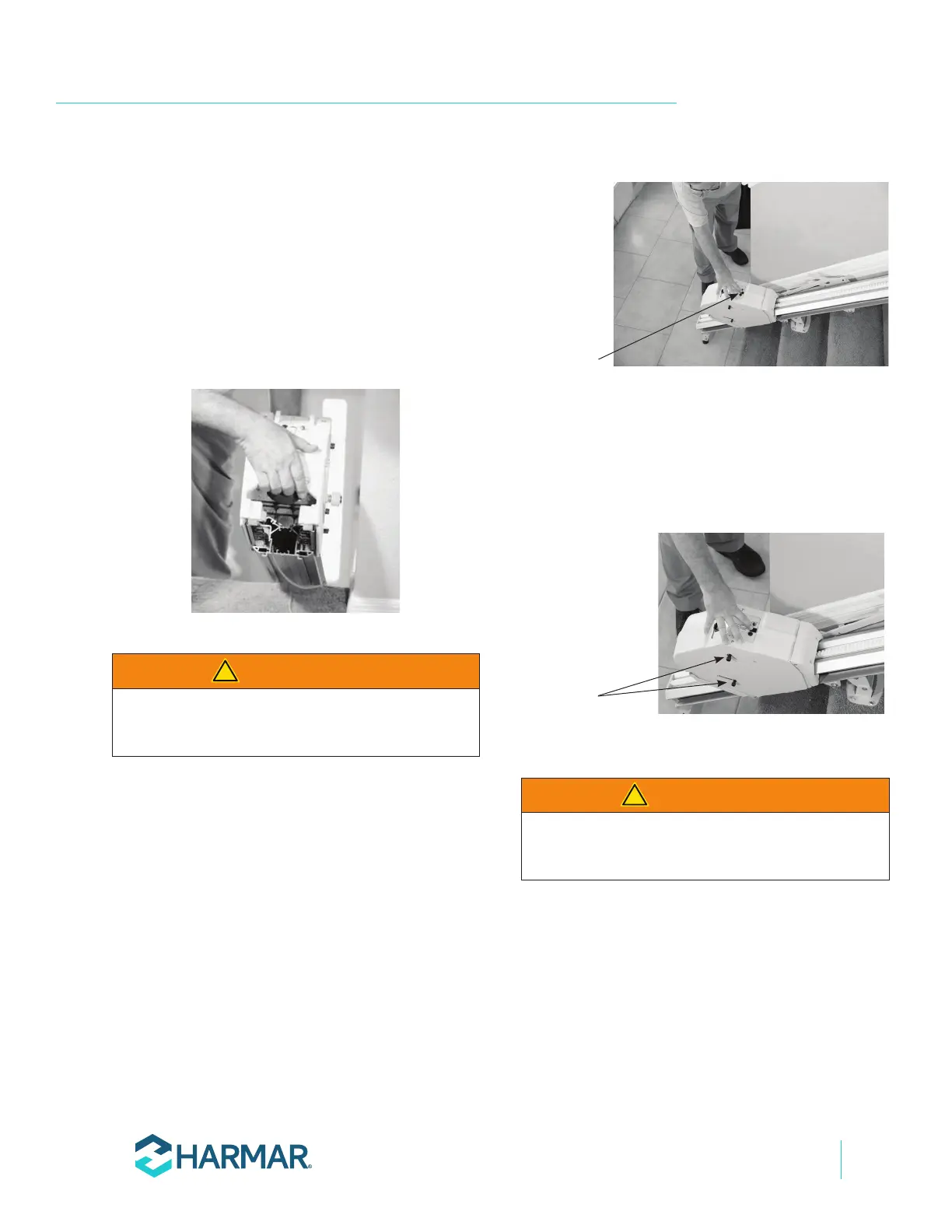

CHASSIS INSTALLATION
1. Remove chassis from box.
2. Lift the chassis with the manual override hole
(on bottom) facing the downhill side of the
stairs and gently slide the chassis onto the rail
until it makes contact with the plastic rack. Do
not let the chassis free fall down the rail.
See Figure 4-15.
Figure 4-15
3. Remove the zip tie on the power switch and
turn the unit on. The unit will beep once
indicating it is ready for use.
4. Use the installation switch (the black switch
on the top of the chassis) to move the chassis

the chassis to ensure the chassis does not pull
any rack to the top.
See Figure 4-16.
Figure 4-16
5. Loosen, but do not remove, the four (4)
seat-leveling bolts (two (2) on each side of the
chassis), and then align them vertically using a
level. Firmly tighten the two (2) bolts on the
side of the chassis facing the wall.
See Figure 4-17.
Two (2) bolts on
either side of the
chassis
Figure 4-17
Do not ride on the chassis or li unl the
installaon is complete.
WARNING
!

switch
