Harmar Mobility SL600 - Procedure to Switch Armrest Control from Right to Left Hand

SL600 PINNACLE STAIR LIFT: Install Manual
30SEP2020 | 76015 REV F
15
INSTALLATION
PINNACLE STAIR LIFT: SECTION 4
PROCEDURE TO SWITCH
ARMREST CONTROL FROM
RIGHT TO LEFT HAND

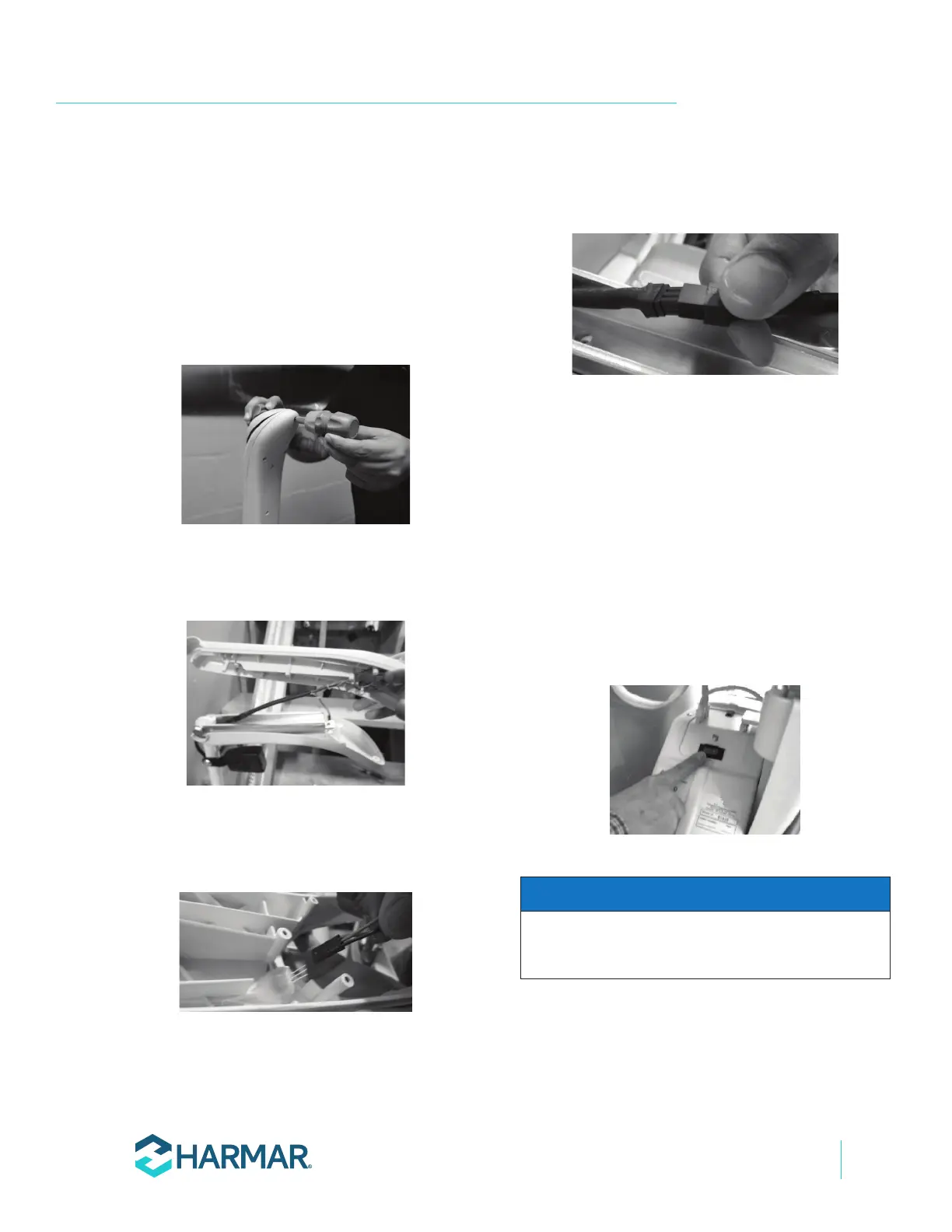

1. Turn the unit off.
2. Remove the screws on both armrests.
See Figure 4-30.
Figure 4-30
3. Disconnect the armrest control harness.
See Figure 4-31.
Figure 4-31
4. Remove the LED connector. Use a knife or
blade to remove the glue.
See Figure 4-32.
Figure 4-32
5. Swap the armrest harness and reconnect the
6-pin connector.
See Figure 4-33.
Figure 4-33
6. Connect the LED with the red wire toward the
center of the seat (if connected backwards,
you will get a red light).
7. 

should hear a single beep and the LED
indicator light on the armrest will then cycle
through a test sequence, showing red, amber
and green respectively. If any of the system
controls or safety sensors are engaged the LED
indicator light will turn to amber.
See Figure 4-34.
Figure 4-34
If the lift is equipped with the optional key switch on
the chassis control, be sure it is in the "On" position.
NOTICE
NOTE: It may be necessary to locate the retractor portion
of the seatbelt on the downward side of the lift to
maintain close distance to the wall.
