SL600 PINNACLE STAIR LIFT: Install Manual
30SEP2020 | 76015 REV F
9
INSTALLATION
PINNACLE STAIR LIFT: SECTION 4

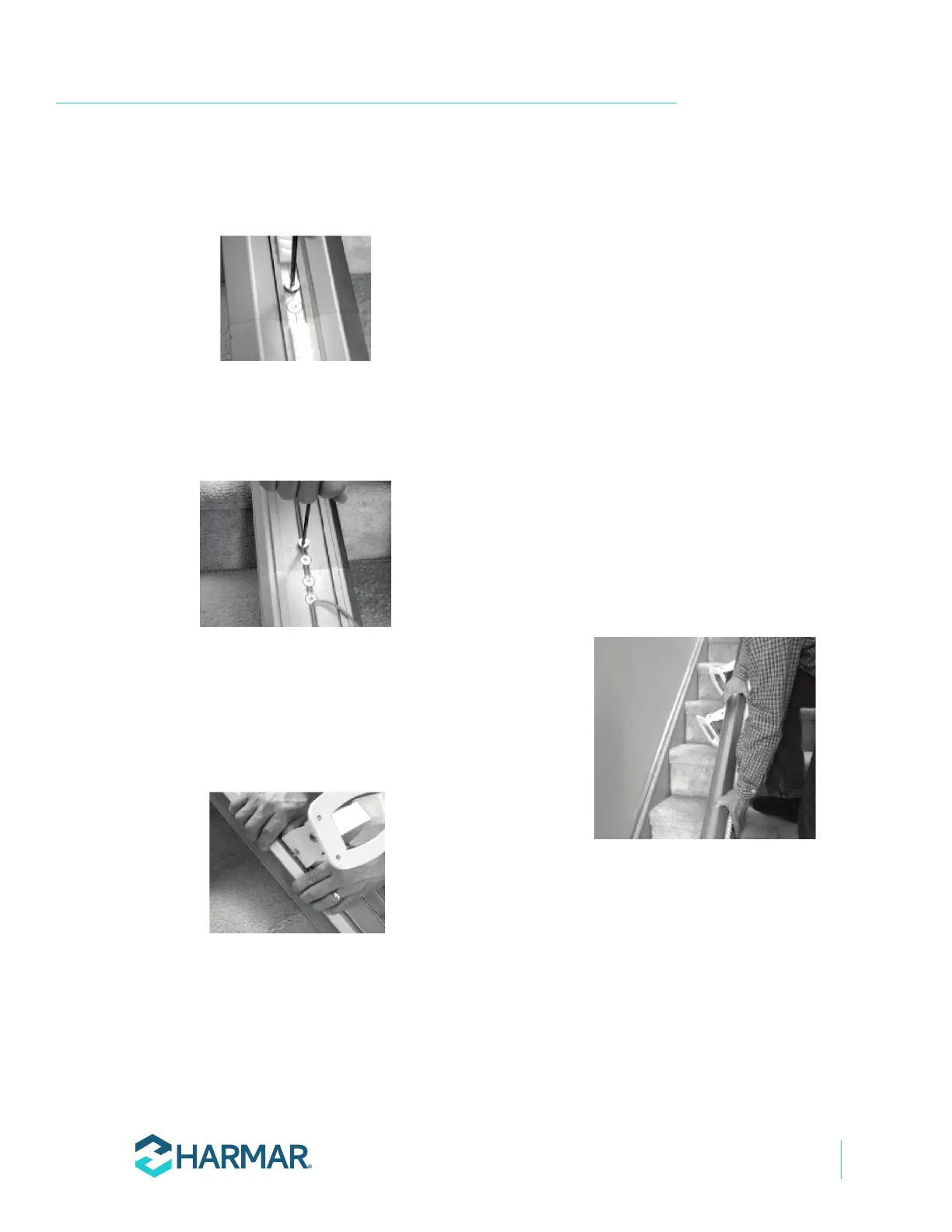

6. Install two (2) joint fasteners and firmly
See Figure 4-7.
Figure 4-7
7. Turn rail over and install the remaining two (2)
Allen wrench.
See Figure 4-8.
Figure 4-8
8. Install rail brackets with label facing the
staircase side by loosening the screws and
snapping each bracket edge into the slot, or
slide the brackets on from the top of the rail.
See Figure 4-9.
Figure 4-9
NOTE: When installing the track brackets, if the rail is
upside-down, the nut side should be facing the middle of
the staircase, then if the rail is flipped over, the nut side
will face the wall and so will the label.
• For double rails, the first rail bracket
should be tightened in place so when
turned over the back of the bracket
touches the riser of the first step from
the bottom landing. The second and third
brackets should be placed and tightened
on the steps on each side of the rail joint,
again so the back of the bracket touches
the riser of the step. The fourth and final
bracket should be placed on the last step
before the top landing, again tightening it
so it touches the front of the riser of the
last step.
• Tighten the first rail bracket in place so
when turned over the back of the bracket
touches the riser of the first step from the
bottom landing. Place the other bracket
on the last step before the top landing,
again tightening it so it touches the riser
of the last step.
9. Turn the rail right side up (gear rack facing up).
See Figure 4-10.
Figure 4-10
10. Measure any obstruction form the wall (this
may include handrails, molding, light switches,
etc.) and adjust the edge of the brackets and
equal distance from the wall. The minimum
obstruction.
11.
above the stair tread nose to provide
